Dog Munchy Meat Strip Machine With Auto Tray Loader

Dog Munchy Meat Strip Machine With Auto Tray Loader

Product Details:

Place of Origin: China
Brand Name: Darin
Certification: ISO CE
Model Number: DR-126

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard export wooden case
Delivery Time: 35-45 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/year
Get Best Price Contact Now

Detail Information

Product Name: Meat Strip Machine With Auto Tray Loader Capacity: 200-300kg/hr
Air Source: 0.5-0.8Mpa Air Comsumption: 90L/min
Quantity Of Placing Tray One Time: Customized Motor: Siemens/Leadgo
Plc: Siemens Use: Make Meat Strips
High Light:

Dog Munchy Meat Strip Machine

,

Auto Tray Loader Meat Strip Machine

,

Meat Strip Pet Food Production Line

Product Description

Meat Strip Machine With Auto Tray Loader / Dog Munchy Strip Machine



Auto meat strip machine can make pet munchy stick with different sizes and shapes. It includes the following two parts:

1. Auto traying system
Automatic tray system mainly is used for providing continuous individual tray to meat strip machine. To make products which produced by meat strip machine be cut according to tray’s dimension and automatically enter into tray, it is convenient for subsequent baking link . It can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity .Two layers belts design, meat strip comes on upper belt, and trays comes on nether belt. Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing. Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.

2. Meat strip extruding machine
DR-126 meat strip extruding machine can extrude multi pieces of meat sticks. Different sizes and shapes can be made by changing the mold.Specially used to produce high content (max 100%) meat products.Patented design to produce meat strip with different shapes and sizes. Siemens motor, FATEK PLC, ABB or Schenider main electric parts.Stainless steel control cabinet, touch screen with friendly interface and fault display function.The screw adopts detachable structure, and has rust-proof treatment.The cylinder should be changed every 2-3

months. During production, cylinder pressure should be no more than 0.6Mpa.

Technical parameter for Meat Strip Machine With Auto Tray Loader / Dog Munchy Strip Machine:

Main Features of Dog Jerky Treats Cold Extrusion Machine

Application: Meat Foods.
Machine Material: Stainless Steel
Type: DR-126
Capacity: 200-300kg/hr
Certification: CE & ISO9001
Place of Origin: Jinan, Shandong, China.
Motor: WEG, Germany
Electric Parts:



ABB, Switzerland or Schneider, France

PLC and Touch Screen Siemens, Germany



Bearing:

NSK, Japan
Voltage / Frequency: Customized
Operation: PLC screen control.
Payments: T/T, L/C,



Delivery time:



35 working days.



Features & Advantages of the auto traying meat strip machine:

1. Motors are from WEG, Germany, which has 3-year world-wide guarantee;


2. Electric parts are from ABB or Schneider, easy to find replacments at local market;

3. PLC and touch screen are from Siemens, Germany to realize easier operation and less labor quantity;

4. While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;

5. Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;

6. Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector;

7. All the cover body, mesh belt and parts touching with materials or final products are made by stainless steel 304.

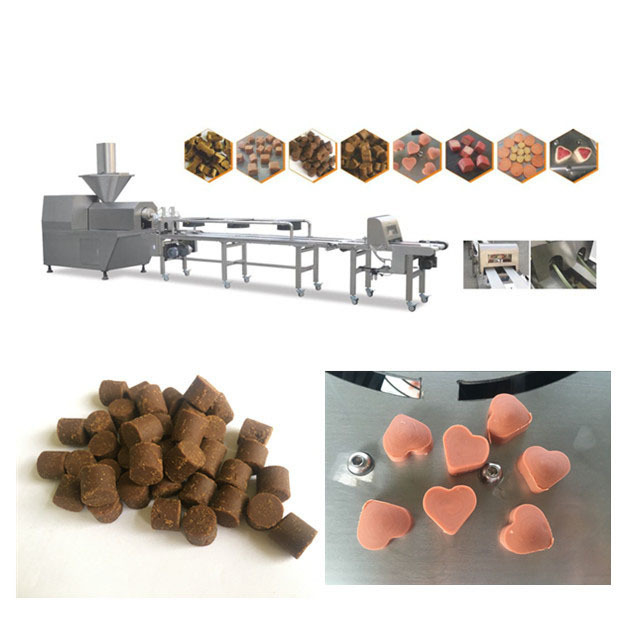

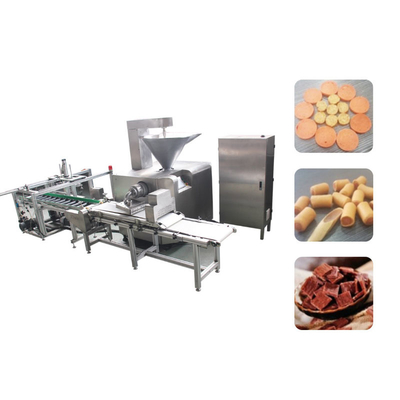

Machine and sample pictures of the meat stick extruding machine:

Dog Munchy Meat Strip Machine With Auto Tray Loader 0

Dog Munchy Meat Strip Machine With Auto Tray Loader 1

300kg/h Production Capacity Soft Dog Jerky Treats Cold Extrusion Machine 0



300kg/h Production Capacity Soft Dog Jerky Treats Cold Extrusion Machine 1





Machine package and delivery:

Commissioning Service

1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.

6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.

The machine video link:



Any interest for this machine, please be free to send us inquiry, best price will be quote within 24 hours.
