CE Approved DOG BONE Hydropress Rawhide Bone Dog Snacks Making Machine
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DR-20T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid. |
| Delivery Time: | 45darys |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 99setsper year |
|
Detail Information |
|||
| Features: | Automatic & Continuous | Application: | Dog |
|---|---|---|---|
| Voltage: | Customized By Customer Local Voltage. | Power(W): | 5.5kw |
| Weight: | 1200kg | Dimension(L*W*H): | 600*500*1780mm |
| Recipe & Formula: | Provide Free Of Charge | Material: | Stainless Steel 304 |
| High Light: | pet food machine,dog food maker machine |
||
Product Description
ProCE Approved DOG BONE Hydropress Rawhide Bone Dog Snacks Bone Pressed Machineduct Description
Product Description

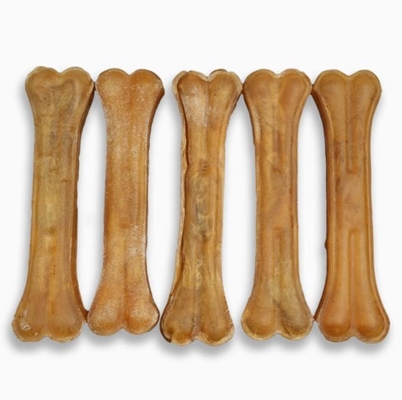

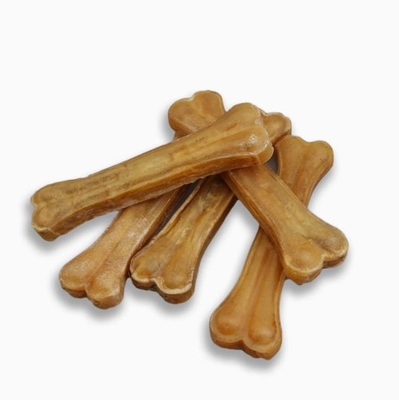

CE Approved DOG BONE Hydropress could produce pet chewing bone with cowhide, pigskin or sh-eepskin as material. It could press the material to be various shapes and sizes.
Features
1, This Punching Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.
2, The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
3, Punching Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.
Technical Parameters
|
Project |
DR-20T |
|
Liquid Pressure of Work (MPa) |
14-21 |
|
|
5-20 |
|
|
Left and Right 500 |
|
|
|
|
Working surface size (mm) |
|
|
Front and Back 400 |
|
|
Height of Working Table Off the Ground(MM) |
780 |
|
Biggest Operational Height(mm) |
400 |
|
Close(mm) |
200 |
|
|
200 |
|
Motor Power |
5.5KW |
|
Structural Style |
Flour Column Three Board |
|
|
Above Oil Cylinder |
|
|
380VAC,50/60Hz |
|
Weight |
1108kg |
|
Dimension |
600*500*1780mm |

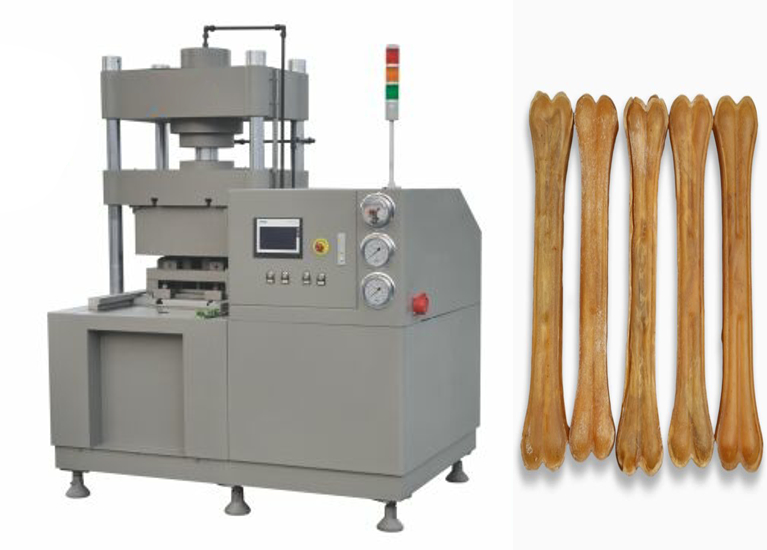

Machine Picture
Mold Picture
Factory & Office
Commissioning Service
a. Consultation service before, during, and after sales;
b. Project planning and design service;
c.Debugging of equipment until everything is functional;
d. Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e.Training of equipment maintenance and operating personally;
f. New production techniques and formulas;
g. Provide 1 year complete warranty and life-time maintenance service.
