Customized Dog Chews Pressed Rawhide Bones processing line with 12 months Warranty
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Mikim |
| Certification: | CE Certificate |
| Model Number: | MK-20T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid. |
| Delivery Time: | 45darys |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 99setsper year |
|
Detail Information |
|||
| Application: | Dog | Voltage: | Customized By Customer Local Voltage. |
|---|---|---|---|
| Power(W): | 5.5kw | Weight: | 1200kg |
| Dimension(L*W*H): | 600*500*1780mm | Warranty: | 12 Months |
| Advantage: | Easy Operation And Clean | Moulds: | Customized |
| Highlight: | pet food machine,dog food maker machine |
||
Product Description

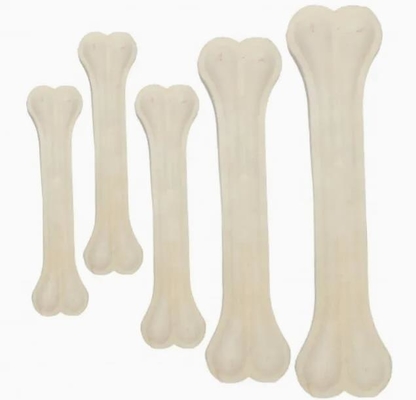

Dog Chews Rawhide Machine, Dog Chews Machine, Dog Chew Bone Machine can produce pet chewing bone with cowhide, pigskin, beef tendons or sheepskin as material. It could press the material to be various shapes and sizes.
Features
1, This Punching Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.
2, It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
3, The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.

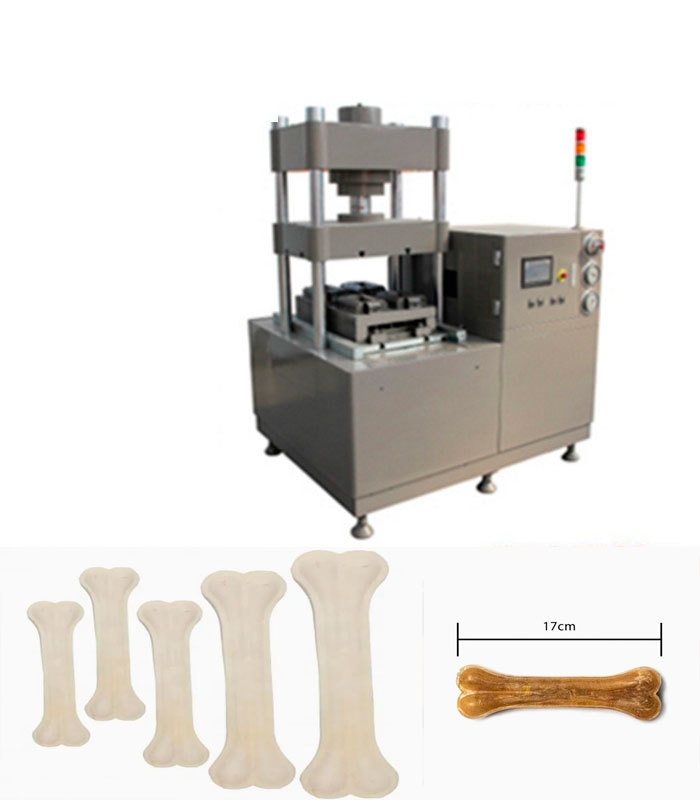

Machine Picture
Technical Parameters
|
Project |
MK-20T |
|
Liquid Pressure of Work (MPa) |
14-21 |
|
Theory Output (Ton) |
5-20 |
|
Working surface size (mm) |
Left and Right 500 |
|
|
|
|
Working surface size (mm) |
|
|
Front and Back 400 |
|
|
Height of Working Table Off the Ground(MM) |
780 |
|
Biggest Operational Height(mm) |
400 |
|
Close(mm) |
200 |
|
|
200 |
|
Motor Power |
5.5KW |
|
Structural Style |
Flour Column Three Board |
|
|
Above Oil Cylinder |
|
Power source |
380VAC,50/60Hz |
|
Weight |
1108kg |
|
Dimension |
600*500*1780mm |
