nutrition grain powder processing line nutrition rice powder baby cereal food processing line/machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DARIN |
| Certification: | CE ISO9001 |
| Model Number: | DR-65/70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 sets per year |
|
Detail Information |
|||
| Product Name: | Nutrition Powder Extruding Line | Application: | The Processing Line Can Produce Nutrition Powder In Good Quality. |
|---|---|---|---|
| Condition: | New | Layout: | AutoCAD Format According To Client’s Workshop |
| Manual: | English Version | Standard: | CE |
| Commissioning Service / Training: | Provide, But Paid By Buyer | After-sales Service: | Full Life |
| High Light: | rice powder making machine,baby food making machine |
||
Product Description

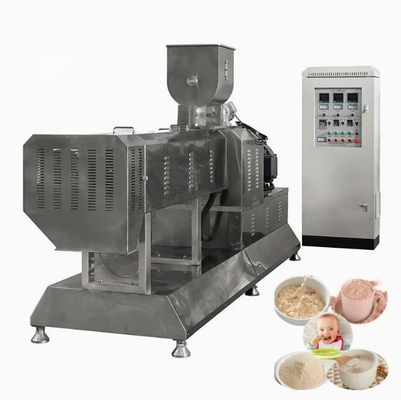

Extruded Rice Powder Nutrtional Baby Food Processing Machine
1. Nutrition grain powder processing line is especially capable with processing nutritional powders which can be easily digested and absorbed by baby and elders. the whole working process is easy to operate and control, popular products like rice powder, sesame, milk powder etc
2. The model is DR-70, the output is 200-250kg/h.
3. Extruder screws quantity is two.
4. The main body material is stainless steel, which is easy to be cleaned.
5. The screws material is 38CrMoAl, which is wear-resisting.
6. The processing line needs two workers to operate.
7. We advice the plant area is no less than 110 square meters, the length is no less than
22 meters.

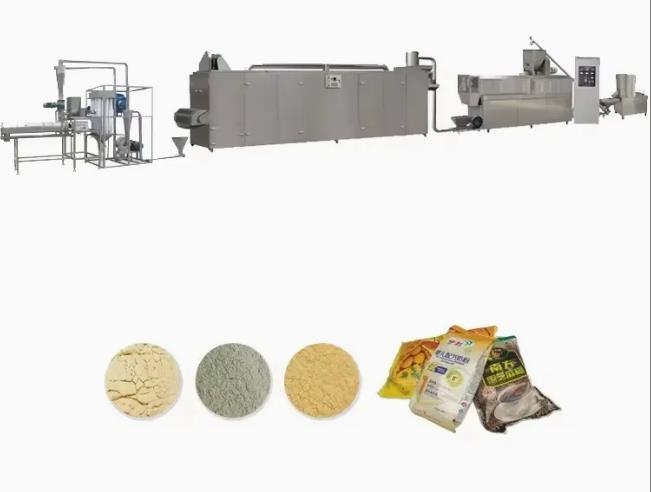

8. Process flow: (Raw material)---mixing---conveying---extruding & puffing---conveying---drying--- (milling---packing)

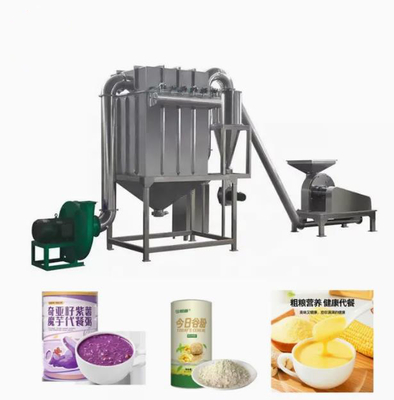

9. Equipments: Mixer---Screw conveyer---Extruder---Air conveyer---Dryer--- (Grinder---Packing machine)
10. The temperature and rotating speed can be controlled and adjusted.
11. The processing line has self-cleaning function.
12. Parameters:
|
Model |
Installed power |
Real power |
Output |
Dimension |
|
DR65 |
66kw |
50kw |
100-150kg/h |
19000x1200x2200mm |
|
DR70 |
100kw |
67kw |
200-240kg/h |
21000x1500x2200mm |
|
DR85 |
130kw |
80kw |
400-500kg/h |
30000x3500x4300mm |
1. The motor of our extruder machine is Siemens Motor.
2. The raw material of our machines is Stainless Steel.
3. Our automatic machines are controled by frequency changer, it is easy to operate.
4. Our factory will send our engineer to install machines for you.
5. baked snack machine have the 12 months guarantee time.
6. The machine is multifunction. Many types of snacks can be manufactured by changing
the die head and model.
Samples:
Factory:
Exhibition show
Our factory located in Jinan, Shandong Province, China.
You can take plane to Jinan International Airport, or take high-speed rail to Jinan West
2.What is your payment term?
You can transfer the payment via T/T. Generally, 30% advance to start to produce,
3. What capacity do you want ?
