Best pet food extrusion equipment machine Pet Food Processing Line with Dry Dog Feed Pellet Making Machine dry dog food making machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | MIKIM |
| Certification: | CE |
| Model Number: | 40,60,75,85 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | $1500.00 - 9500.00/ Set |
| Packaging Details: | packed by wooden export package or loading by container |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Features: | Continuous & Automatic | Electric Elements: | Siemens, ABB Or Chinese Brand |
|---|---|---|---|
| Voltage: | 380V/50Hz | Condition: | New |
| Oven: | Multilayer Oven:3, 5, 7 | Voltageacity: | 380V50Hz |
| Machine Name: | Dry Dog Food Making Machine | Moulds: | Various Shapes Can Be Choosen |
| Products: | Dog Food, Cat Food, Birds Food | ||
| Highlight: | pet food extrusion equipment machine,dry dog feed pellet making machine,pet food processing line with warranty |
||
Product Description
Our advanced pet food manufacturing equipment processes feed for dogs, fish, birds, poultry, livestock, and other animals. This versatile system produces floating fish feed pellets that remain buoyant for over 24 hours, with gelatinization reaching 90% for enhanced output efficiency.
This newly-designed production line creates pet food with novel shapes, unique taste profiles, and appealing colors. It meets modern market demands with scientific nutrition formulas and easy assimilation characteristics, including popular cored filling varieties.
| ITEM | Dry Dog Food Machine 40 | Dry Dog Food Machine 60 | Dry Dog Food Machine 75 | Dry Dog Food Machine 85 |
|---|---|---|---|---|
| Power voltage | Customized according to customer's local voltage requirements (free of charge) | |||
| Installed power | 35KW | 46KW | 90KW | 10KW |
| Actual power | 25KW | 30KW | 55KW | 7KW |
| Production capacity | 120-150Kg/h | 200-260Kg/h | 300-500Kg/h | 10-15Kg/h |
| Dimensions | 2.5×0.8×1.8m | 3.2×1.0×2m | 4.5×1.2×2.4m | 21×0.65×1.6m |
| Stainless steel thickness | 1.2mm | |||

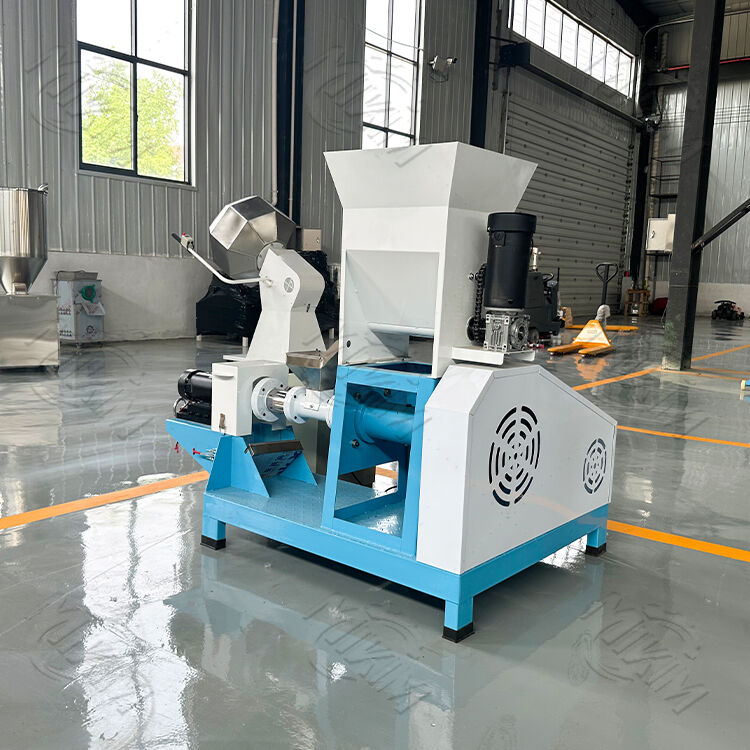

The machine integrates feeding, extrusion, rotary cutting, heating, transmission, and control systems. Utilizing advanced screw extrusion technology with high temperature and high pressure processing, it completes maturation and expansion in one operation. The main engine features frequency conversion speed regulation to ensure production stability.
- Grain flour
- Soya meal
- Meat meal
- Fish meal
- Bone meal
- Rice bran
- Milk powder
Grinder → Mixer → Screw conveyor → Twin-screw extruder → Elevator → Dryer → Hoister → Flavoring line → Cooling conveyor
- All production line components are constructed from stainless steel
- Screws: Alloy steel (38CrMoAl) with HRC hardness 60-62
- Excellent self-cleaning capability eliminates need for barrel and screw cleaning during material changes
- Extrusion barrel: Carbon steel (#45 steel) with stainless steel coating
- Gearbox with automatic lubrication for extended service life
- Cutting knife fixed in die head seat with V-belt driven rotary cutting
Tianjin Mikim Technique Co., Ltd. is a high-tech enterprise integrating scientific research, design, manufacture, installation, commissioning, and after-sales service. With 35 years of experience in feed machinery design and production, we hold CE and ISO certifications. Our expertise spans feed pellet machine production lines and feed extruder production lines, delivering high-quality, competitively priced equipment worldwide with comprehensive after-sales support.
