Best fish feed pellet extruder machine Full Production Line Dry Pet Dog and Cat Feed Food Pellet Production Manufacturing Making Extruder Pelletizer Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | MIKIM |
| Certification: | CE |
| Model Number: | DGP-40,DGP-60,DGP-70,DGP-85,DGP-90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | $1500.00 - 9500.00/ Set |
| Packaging Details: | packed by wooden export package or loading by container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Operation Manual: | English Version | Commissioning Service: | Provided |
|---|---|---|---|
| Heating Type: | Electricity | Processing Type: | Extrusion |
| Worker Needed: | 1~2 Workers | Productname: | Pet Food Extruder |
| Highlight: | fish feed pellet extruder machine,dry pet feed production line,dog food pelletizer machine with warranty |
||
Product Description

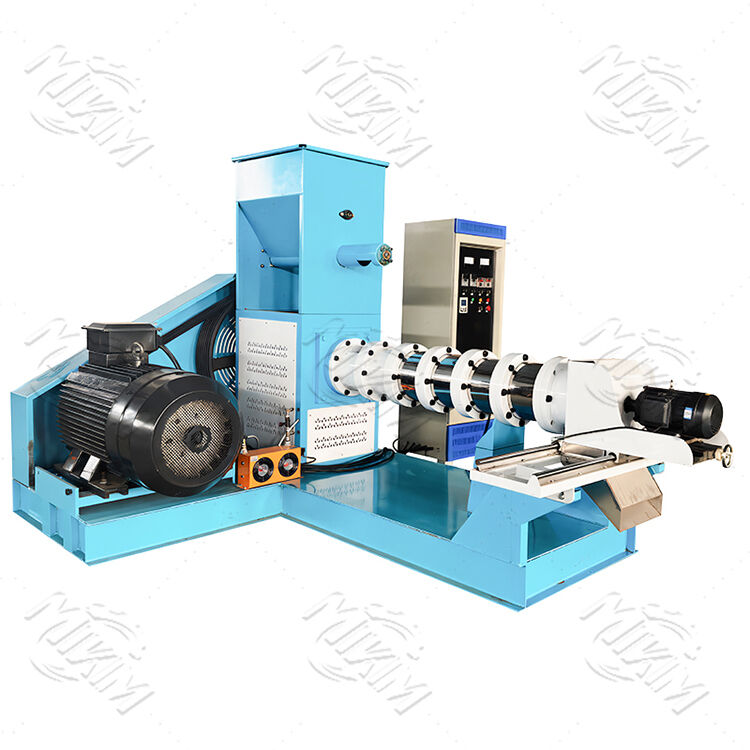

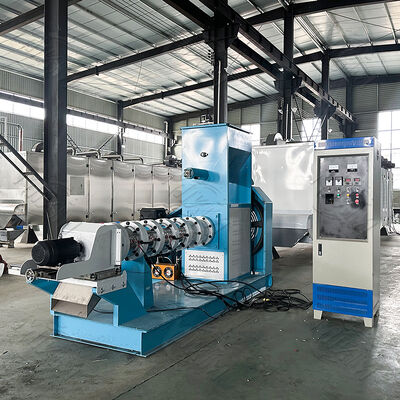

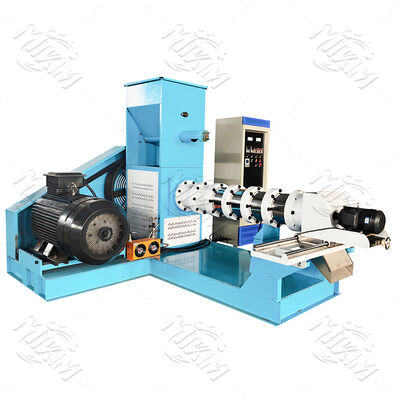

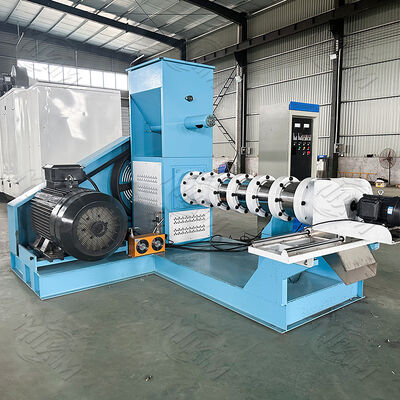

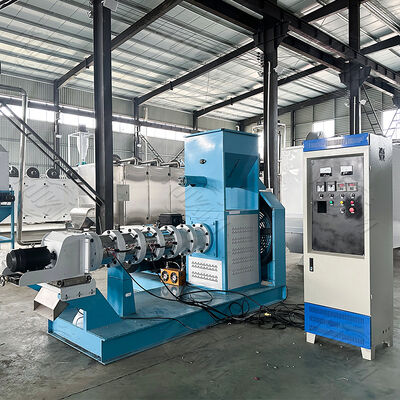

Raw materials are fed into the machine and pressed by the screw under high pressure and temperature, ensuring complete cooking and sterilization. The compressed materials are then formed into pellets through shaping molds, with different sizes and shapes achievable by changing molds. Finally, a cutter device trims the formed pellets to the required length.
| Model | Main Motor (kW) | Feeder (kW) | Cutter (kW) | Capacity (kg/h) | Machine Size (m) | Weight (kg) |
|---|---|---|---|---|---|---|
| DGP-40 | 5.5 | 0.4 | 0.4 | 40-50 | 1.36×1.3×0.8 | 320 |
| DGP-60 | 15 | 0.4 | 0.4 | 120-150 | 1.36×1.33×0.86 | 420 |
| DGP-70 | 18.5 | 0.4 | 0.4 | 200-250 | 1.36×1.33×0.86 | 550 |
| DGP-80 | 22 | 1.5 | 0.55 | 300-350 | 2.3×1.7×1.4 | 720 |
| DGP-90 | 30 | 1.5 | 0.55 | 400-450 | 2.3×1.7×1.4 | 1100 |
| DGP-100 | 37 | 1.5 | 1.5 | 500 | 2×2.8×1.2 | 1500 |
| DGP-120 | 55 | 1.5 | 1.5 | 600-700 | 2.2×2.9×1.2 | 1800 |
| DGP-135 | 75 | 1.5 | 2.2 | 800-900 | 2.2×3.1×1.37 | 2000 |
| DGP-160 | 90 | 2.2 | 2.2 | 1000-1200 | 2.3×3.15×1.38 | 2500 |
| DGP-200 | 132 | 3 | 3 | 1800-2000 | 2.35×3.45×1.65 | 3200 |
- Raw materials: flour, corn meal, soybean meal, maize meal, meat meal, bone meal, fish meal, vitamin supplements
- Powder size: 60-80 mesh
- Moisture content: 20-25%
- Final pellet diameter: 1mm-15mm (optional)
- Pellet length adjustable via cutting knife control
- Produces nutritionally balanced, easily digestible pet food with novel shapes and unique taste profiles
- Easy operation with precise control of temperature, pressure, and humidity for consistent quality
- Screw and pressure ring constructed from wear-resistant alloy for extended service life and low operating costs
- Screw sleeve features inlaid alloy steel bar structure for durability
- Variable speed feeding motor enables easy adjustment and stable material flow
- Floating pellets remain buoyant for 12+ hours without dissolving, preferred by fish and birds for easy digestion
- High-temperature processing eliminates harmful bacteria (E. coli, salmonella) while enhancing protein and starch absorption
- 8-15% feed savings compared to powder or standard granular feed
- Capable of producing sinking aquatic and poultry feed with toxin elimination
Mikim Machinery is a high-tech enterprise integrating scientific research, design, manufacturing, installation, commissioning, and after-sales service. With 35 years of experience in the feed machinery industry, the company holds multiple certifications including CE and ISO.
Core business areas include complete feed pellet production lines (hammer mill, mixer, conveyor, pellet machine, cooling & vibration systems, packaging) and feed extruder production lines with comprehensive processing equipment.
We produce high-quality, competitively priced equipment exported worldwide, supported by a robust after-sales service system to meet all customer requirements.
