Dog Meat Strips Cold Extrusion Foring Machine Dog Food Meat Strip Extruding Line
Product Details
| Product Name: | Soft Chewing Dog Snacks Cold Extruder Machine | Capacity: | 200-300kg/hr |
|---|---|---|---|
| Air Source: | 0.5-0.8Mpa | Air Comsumption: | 90L/min |
| Quantity Of Placing Tray One Time: | Customized | Motor: | Siemens/Leadgo |
| Plc: | Siemens | Use: | Make Meat Strips |
| Highlight |
Strips Cold Extrusion Foring Machine,Dog Meat Cold Extrusion Foring Machine,Dog Meat Strip Extruding Line |
||
Product Description
Soft Chewing Dog Snacks Cold Extruder Machine Used To Make Meat Sticks
Introduction of auto meat strip traying machine:
MK-126 meat strip extruding machine can extrude multi pieces of meat sticks. Different sizes and shapes can be made by changing the mold.
1. Full automatic tray system can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity.
2. Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing.
3. Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.
Auto meat strip machine can make pet munchy stick with different sizes and shapes. It includes the following two parts:
1. Auto traying system
Automatic tray system mainly is used for providing continuous individual tray to meat strip machine. To make products which produced by meat strip machine be cut according to tray’s dimension and automatically enter into tray, it is convenient for subsequent baking link . It can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity .Two layers belts design, meat strip comes on upper belt, and trays comes on nether belt. Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing. Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.
2. Meat strip extruding machine
MK-126 meat strip extruding machine can extrude multi pieces of meat sticks. Different sizes and shapes can be made by changing the mold.Specially used to produce high content (max 100%) meat products.Patented design to produce meat strip with different shapes and sizes. Siemens motor, FATEK PLC, ABB or Schenider main electric parts.Stainless steel control cabinet, touch screen with friendly interface and fault display function.The screw adopts detachable structure, and has rust-proof treatment.The cylinder should be changed every 2-3 months. During production, cylinder pressure should be no more than 0.6Mpa.
Parameter of Auto Meat Strip Traying System
|
Machine |
Auto meat strip machine |
|||
|
Capacity |
200-300kg/hr |
|||
|
Air source |
0.5-0.8Mpa |
|||
|
Air Comsumption |
90L/min |
|||
|
Quantity of Placing Tray One Time |
30pcs |
|||
|
Weight |
3000kg |
|||
|
Power |
18kw |
|||
|
Dimension |
8630x3570x685mm |
|||
Features & Advantages of the auto traying meat strip machine:
It is the first processing line to produce meat strips automatically and continuously.
The diameter and shape of meat strips can be varied by changing the molds.
Fully controlled by PLC and touch screen to reduce the labor cost, 2-3 workers are needed to operate the whole line.
The characteristics is discharging speed, output evenly, can infuse bowel flesh lump, can also be used to fill the mi bowel, flexible, convenient and freeloading, high efficiency, continuous production capacity, and cleaning convenient, suitable for various types of production enterprises.
Technical Parameters
|
Output |
Power |
Required Worker |
Voltage / Frequency |
Dimension |
|
200-300kg/hr |
22kw |
2~3 |
380V / 50Hz |
8 x 1.6 x 3m |
|
Model |
DR-126 |
|
Capacity |
200-300kg/hr |
|
Air source |
0.5-.0.8 Mpa |
|
Air Comsumption |
90L/min |
|
Tray Dimension |
680x400mm |
|
Quantity of Placing Tray One Tim |
40pcs |
|
Power |
3.75kw |
|
Dimension |
8000X2900X1610mm |
|
Machine weight |
680kg |

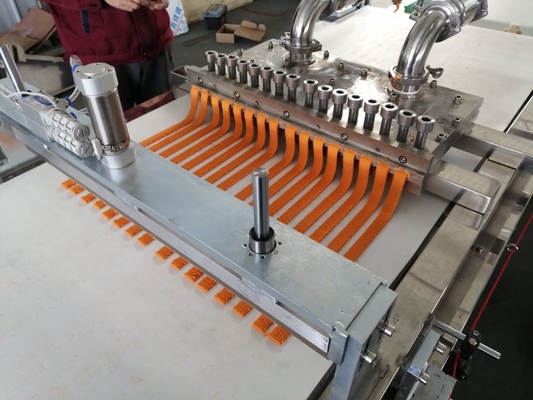

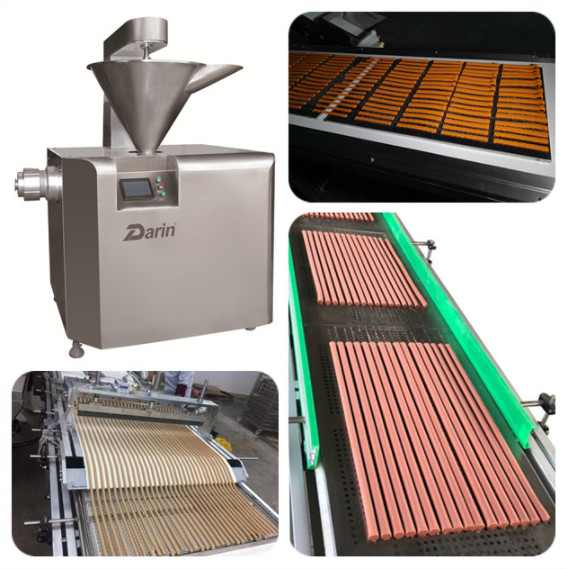

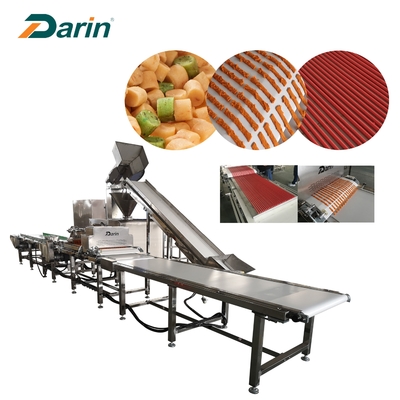

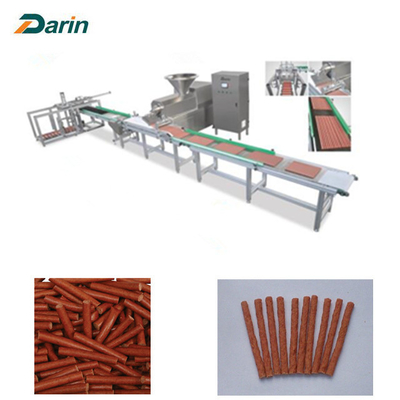

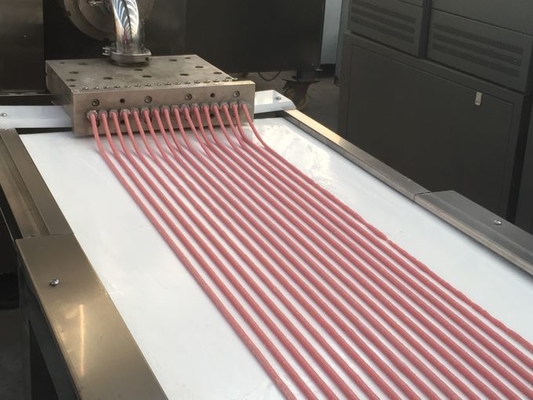

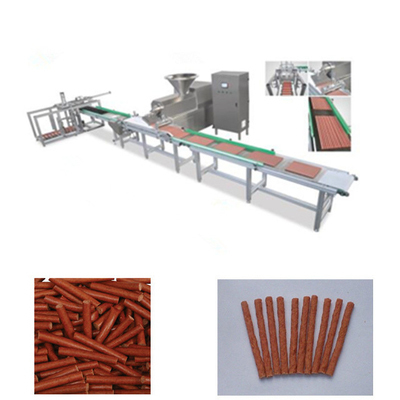

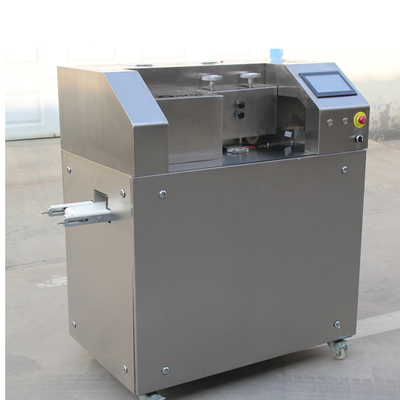

Machine and sample pictures of the meat stick extruding machine:
We Provide Satisfied service and Turnkey Solution
A. Free consultation service before, during, and after sales;
B. Free project planning and design services;
C. Free installation and commissioning of equipment until everything is functional;
D. Free management of equipments' long distance shipping;
E. Free training of equipment maintenance and operating personally;
F. Free new production techniques and formulas;
G. Provide 1 year complete warrantee and life-time maintenance service;
H. Engineers available to service machinery overseas.
I. Provide technical exchanging
