Soft Chewing Dog Food Extruder Machine Used To Make Meat Sticks
Product Details:
| Place of Origin: | China |
| Brand Name: | Darin |
| Certification: | ISO CE |
| Model Number: | DR-126 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard export wooden case |
| Delivery Time: | 35-45 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets/year |
|
Detail Information |
|||
| Product Name: | Soft Chewing Dog Snacks Cold Extruder Machine | Capacity: | 200-300kg/hr |
|---|---|---|---|
| Air Source: | 0.5-0.8Mpa | Air Comsumption: | 90L/min |
| Quantity Of Placing Tray One Time: | Customized | Motor: | Siemens/Leadgo |
| Plc: | Siemens | Use: | Make Meat Strips |
| High Light: | Soft Chewing Pet Treat Machine,Soft Chewing Dog Food Extruder Machine,Soft Chewing Dog Food Extrusion Machine |
||
Product Description
Soft Chewing Dog Snacks Cold Extruder Machine Used To Make Meat Sticks
Soft Chewing Dog Snacks Cold Extruder Machine
Introduction of auto meat strip traying machine:
DR-126 meat strip extruding machine can extrude multi pieces of meat sticks. Different sizes and shapes can be made by changing the mold.
1. Full automatic tray system can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity.
2. Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing.
3. Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.
Features & Advantages of the auto traying meat strip machine:
It is the first processing line to produce meat strips automatically and continuously.
The diameter and shape of meat strips can be varied by changing the molds.
Fully controlled by PLC and touch screen to reduce the labor cost, 2-3 workers are needed to operate the whole line.
The characteristics is discharging speed, output evenly, can infuse bowel flesh lump, can also be used to fill the mi bowel, flexible, convenient and freeloading, high efficiency, continuous production capacity, and cleaning convenient, suitable for various types of production enterprises.
Technical Parameters
| Output | Power | Required Worker | Voltage / Frequency | Dimension |
| 200-300kg/hr | 22kw | 2~3 | 380V / 50Hz | 8 x 1.6 x 3m |
| Model | DR-126 |
| Capacity | 200-300kg/hr |
| Air source | 0.5-.0.8 Mpa |
| Air Comsumption | 90L/min |
| Tray Dimension | 680x400mm |
| Quantity of Placing Tray One Tim | 40pcs |
| Power | 3.75kw |
| Dimension | 8000X2900X1610mm |
| Machine weight | 680kg |

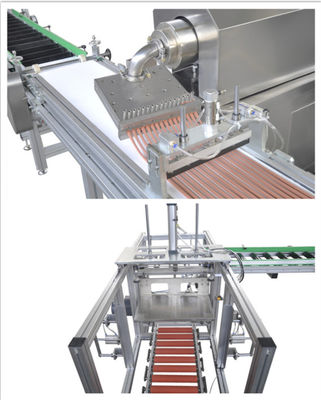

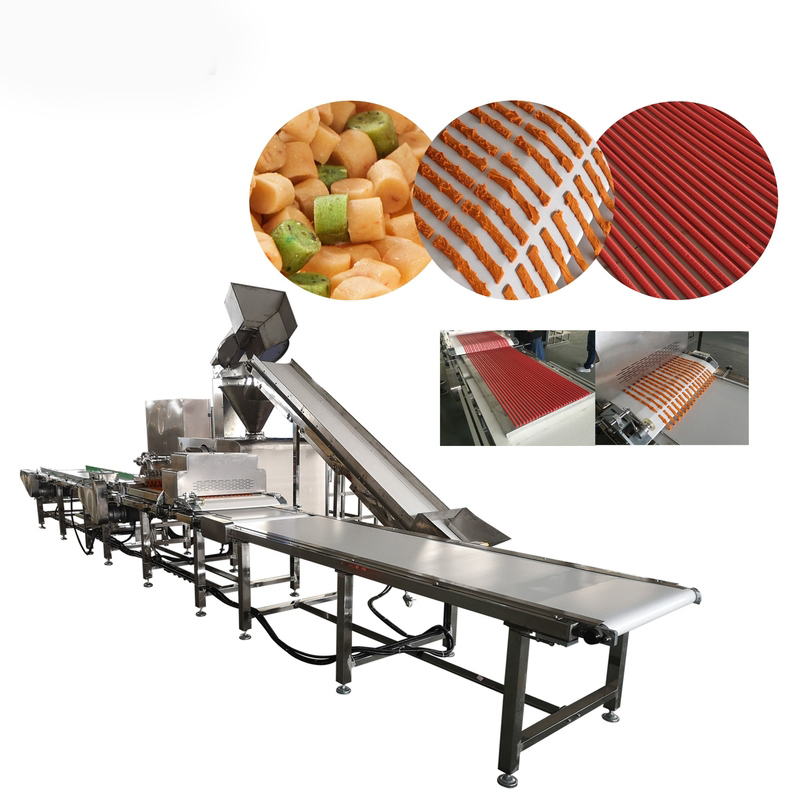

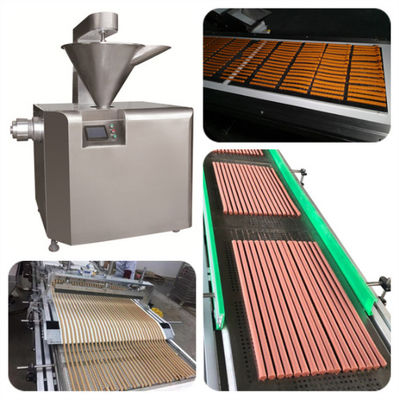

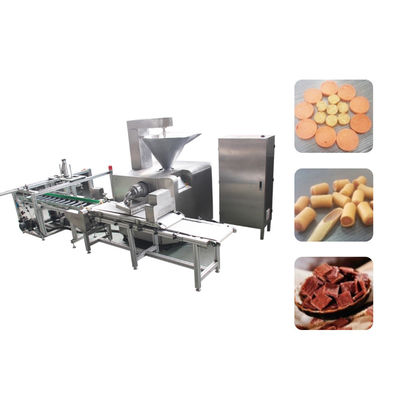

Machine and sample pictures of the meat stick extruding machine:
