Automaticlly Dog Meaty Stick Pet Food Making Machine Munchy Stip Making
Product Details:
Place of Origin: | Jinan,Shandong Province |
Brand Name: | Darin |
Certification: | CE ISO9001 |
Model Number: | DR-220 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 sets |
---|---|
Price: | USD |
Packaging Details: | We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading. |
Delivery Time: | 45 working days after receiving the down payment |
Payment Terms: | T/T, L/C, Western Union, D/A |
Supply Ability: | 50 Sets per year |
Detail Information |
|||
Material: | SUS304 | Usage: | Meat Strips Dog Treats |
---|---|---|---|
Warranty: | 1 Year | Capacity: | 300~500kg Per Hour |
Power: | 20kw | Dimension: | 14*6*3m |
Worker Needed: | 2~3 Workers | Original: | Jinan Darin |
High Light: | pet food processing line,dog food production line |
Product Description
Automatic Dog Meaty Stick Machine Munchy Stip Making Machine
Food Grade Meat Strip Forming Machine With Auto Tray System Multi Pieces Saving Labor Cost
New Patent Auto Meaty Stick Making Machine With Auto Tray Loader is new designed by Darin team, Full automatic tray system mainly is used for providing continuous individual tray to meat strip machine. To make products which produced by meat strip machine be cut according to tray`s dimension and automatically enter into tray, it is convenient for subsequent baking link.
Two layers belts design, meat strip comes on upper belt, and trays comes on nether belt.
Darin auto meat strip machine was just installed in Taiwan client's factory, 32 pcs can be made one time, the capacity is able to reach 500kg/hr. If 16pcs, the capacity is 400-450kg/hr.
Instruction
DRT-65 Dog Meat Stick Machine is designed with auto tray system, which can supply the tray automatically to hold the sticks, saving labor cost greatly.
Full automatic tray system can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity.
Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing.
Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.
Parameter
Model | DRT-65 |
Capacity | 150-200kg/hr |
Air source | 0.5-.0.8 Mpa |
Air Comsumption | 90L/min |
Tray Dimension | 680x400mm |
Quantity of Placing Tray One Tim | 40pcs |
Power | 3.75kw |
Dimension | 9000X2900X1610mm |
Machine weight | 680kg |

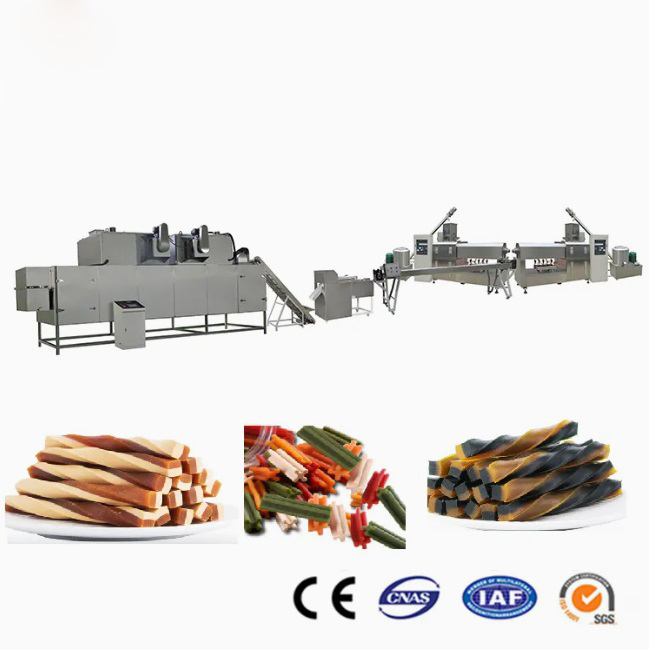

Machine picture
Sample picture
