Pet Dog Training Bone Snacks Injection Molding Machine

Pet Dog Training Bone Snacks Injection Molding Machine

Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: DM268

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD 26000~ USD 110000
Packaging Details: wooden case, which is suitable for long-distance transportation, multi-time loading & unloading for fork trucks.
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 SETS PER YEAR
Get Best Price Contact Now

Detail Information

Features: Continuous & Automatic Condition: New
Application: PET TREATS Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Layout: AutoCAD Format According To Client Workshop
Manual: English Version
High Light:

food processing machinery

,

animal food making machine

Product Description

Product Specification



Running Video



Pet Dog Training Bone Snacks Injection Molding Machine 0





Introduction

Dental pet treat molding machine is special machinery for producing pet snacks and pet chewing toys.



With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.



The shapes are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games.



Also, we can provide different recipes to meet various market demands.

Certificate
CE CERTIFICATE, ISO 9001 CERTIFICATE provided. UL Cerficate under applying.



Features


1. It comes with user-friendly microprocessor controller with these following features;







2. Dust, oil proof and colorful touch switch control panel.







3. El display of pressure, speed, time and distance for each motion.







4. Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.





5. PID barrel temperature control: temperature abnormal & electrical wire disconnection alarm.





6. SSR-solid state temperature controller.





7. Screw cold start protection.





8. Abnormal shot detection.





9. Output quantity and packaging quantity preset.





10. Clamping, injection and ejection (option), and carriage action (option) by linear potentiometer.





11. Screw rotating speed read-out.





12. Security code function to avoid missing data or careless changing.





13. Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently.





14. The response time of the drive system is very fast. It requires only 0.005s to reach the maximum power output, greatly shorten the cycle time.





15. The precision of processing tolerances to produce the plastic parts will be greatly improved. The optimized rate of repeated qualified parts is around 40-130%.





16. Equipped with a rotary encoder and pressure sensor, the pressure flow state of the energy saving the machine will be transmitted to the controller, the command of which will be sent out to the efficient synchronous servo motor to change the rotation and the torque accordingly.







Technical Parameters



Model DR-268
Screw diameter 60mm
Screw L/D Ratio 18.8
Short volume 707mm
Short Weight 636g/22.4oz
Injection pressure 142Mpa
Injection rate 239g/s
Plasticizing capacity 49g/s
Screw speed 180rpm



Commissioning & After-sales Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.





Machines materials: All the machines are made by stainless steel, dry dog food machine is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.





Why Choose Us?

1. Germany WEG motor, three years worldwide guarantee

2. Siemens PLC and touch screen to control the whole line, all faults will display on the touch screen

3. ABB or Schneider electric parts

4. NSK bearings

5. All parts touch with raw materials or final products are made of stainless steel 304

6. 24V operation voltage, assure the safety of operators

7. Three kinds of protectors to keep machine and operator safe: over-heating, over-current, over voltage.





Machinery Show

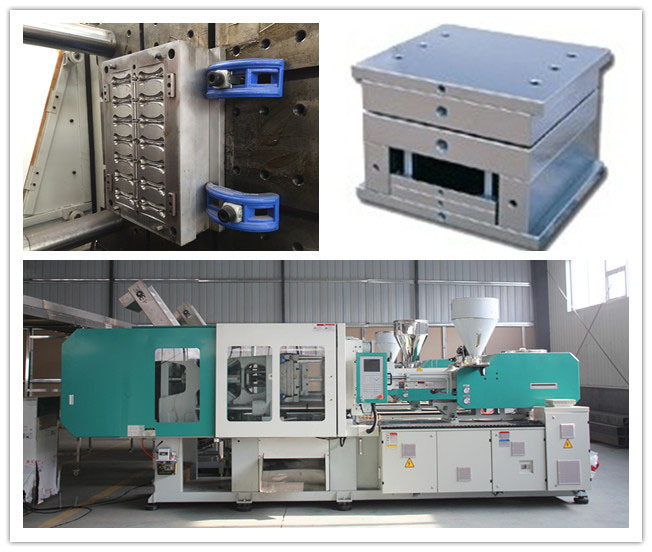

Pet Dog Training Bone Snacks Injection Molding Machine 1



Sample Show



Pet Dog Training Bone Snacks Injection Molding Machine 2



Contact Us







Add: East 2-2 , Xinxu Industrial Park, Jinan 250032, P.R.China.



Tel: 0086 531 82983199/82983399

Fax: 0086 531 82983299


Web: www.darin.cn







Jinan Darin is a leader and professional manufacturer for Pet Treats Processing Line/Pet Chewing Machine, Darin Machinery welcome visiting us!
