CE ISO9001 Certified Meat Powder Dog Food Extruder for Dog snacks processing
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DRD-100/300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden case, which is suitable for long-distance transportation, multi-time loading & unloading for fork trucks. |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 SET/Year |
|
Detail Information |
|||
| Name: | Pet Treats Extruder | Power(W): | 145kw |
|---|---|---|---|
| Spare Parts: | 1 Set | Output: | 100kg/hr |
| After-sales Service: | Full Life | Moulds: | 6 Free Moulds |
| Products: | One Color Pet Treats, Two Color Pet Treats | Processing Type: | Extrusion |
| High Light: | feed pellet extruder,pet extruder machine |
||
Product Description
CE ISO9001 Certified Dog snacks processing machine chewing pet food processing line
Introduction:
DRD100 Puppy treat processing line can produce dog chew snacks, treats, semi moist pet foods, which meet the demands of pet both for nutrition and chewing hobby.
1) Capacity: 100kg/h
2) Raw material: Corn Starch, Meat Powder.
Flow chart: Raw Material Mix – Screw Conveying – Extruding – Cooling – Cutting – Drying -- Cooling
Compare with other supplier, our machine has advantages as followed.
1. Motors are from WEG, Germay, which has 3-year world-wide guarantee;
2. Electric parts are from ABB or Schneider, easy to find replacments at local market;
3. PLC and touch screen are from Siemens, Germany to realize easier operation and less labor quantity;
4. PLC and touch scrren controls whole processing line, not one or two single equipment;
5. While faults occurred, relevant information will be displayed on touch screen, easy to settle the problem;
6. Control cabinet has 24V safe voltage (not 220V), which could protect the operator even electric leakage occurred;
7. Three kinds of protectors to keep machine and operator safe: over-current protector, over-voltage protector and over-heat protector;
8. All the cover body, mesh belt and parts touching with materials or final products are made by stainless steel 304.
Technical Parameters
- All kinds of perfectly shaped non-crumbing chew snacks in a variety of color combinations.
- Max. 3-color chew snacks can be produced.
- Various shapes can be made, such as strip, stick, bone, screw shape, etc.
- Many kinds of recipes to make different tastes to meet different market demands.
- Turnkey project provided, from raw materials to packing procedures, fully continuous and automatic.
- Fully stainless steel 304.
|
Output |
Installed Capacity |
Actual Capacity |
Voltage / Frequency |
Dimension |
|
100-150kg/hr |
145kw |
102kw |
380V / 50Hz |
30 x 5 x 3m
|
2. After receiving firm order and down payment, we start to apply for the Visa to your country immediately; while the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. At buyer's request,1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line..
5. Our engineers can provide basic formula for the production, and help the customer to produce good quality food according customer’s detailed formula.
6. It normally costs 10-14 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.

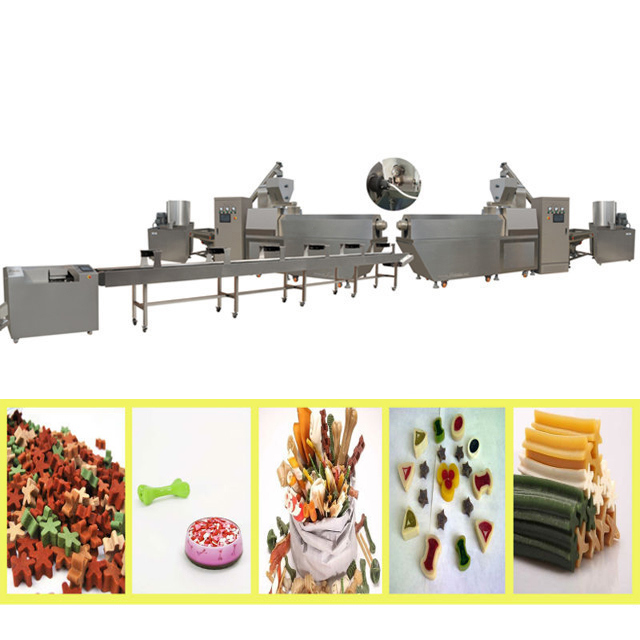

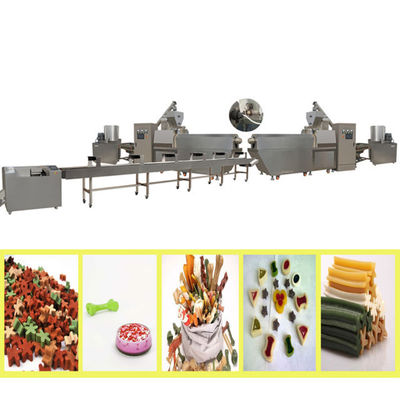

Machinery Show
