Pet Food Machinery Pet Chewing Bone With Cowhide , Pigskin Or Sheepskin As Material
Product Details
| Operation Manual: | English Version | Commissioning Service: | Provided |
|---|---|---|---|
| Operation Panel: | Touch Screen | Motor: | Germany Famous Brand |
| Guarantee: | 1 Year | Spare Parts: | 1 Set |
| Highlight |
pet food machine,pet food processing line,Chewing Dog Bone Maker Machinery |
||
Product Description
|
Project
|
MK-60T
|
|
Liquid Pressure of Work (MPa)
|
14-21
|
|
Theory Output (Ton)
|
Max.60t
|
|
Working surface size (mm)
|
Left and Right 500
|
|
Working surface size (mm)
|
Front and Back 400
|
|
Height of Working Table Off the Ground(mm)
|
780
|
|
Max. Stroke of Mobile Mould(mm)
|
350
|
|
Biggest Operational Height(mm)
|
400
|
|
Close(mm)
|
200
|
|
Cylinder Stroke(mm)
|
200
|
|
Motor Power
|
9KW
|
|
Structural Style
|
Flour Column Three Board
|
|
Above Oil Cylinder
|
|
|
Power source
|
380VAC, 50/60Hz
|
|
Weight
|
1800kg
|
|
Dimension
|
2500 x 1200 x 1900mm
|

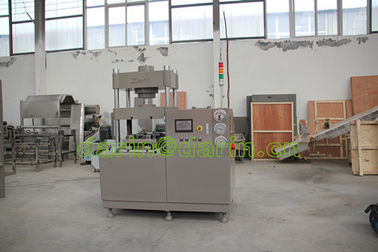

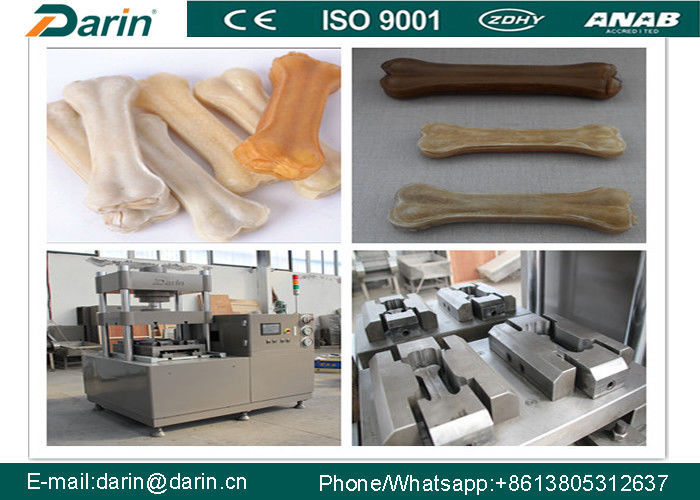

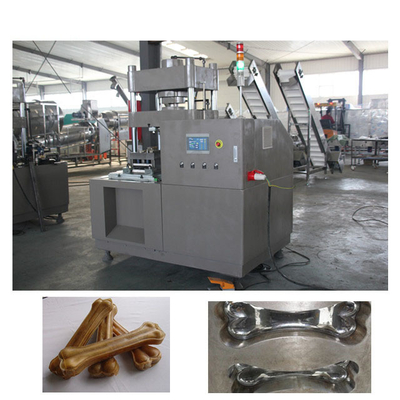

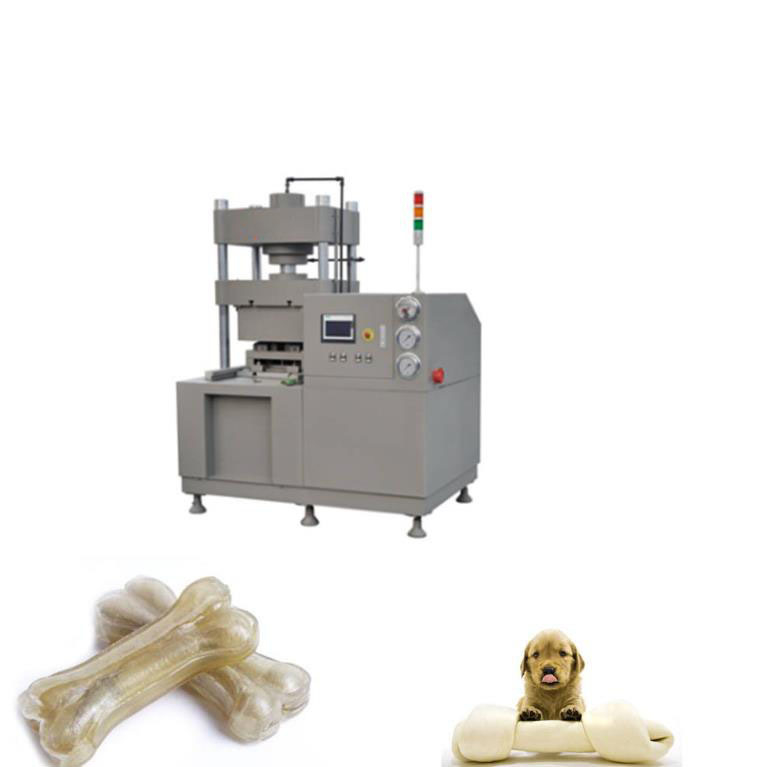

Dog Chews Rawhide Machine, Dog Chews Machine, Dog Chew Bone Machine can produce pet chewing bone with cowhide, pigskin, beef tendons or sheepskin as material. It could press the material to be various shapes and sizes.
1.It is type of Flour Column and Three Board, the upmost output tonnage can be adjustable.
2.It can be adjusted among the range of 5t-60t according to the different products’ procedures, the purpose is to arrive the best required output. 3.Well, our MK-60T Pressing Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
4.In addition, our MK-60T Pressing Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.
5.After pressing, the mold plate can be moved outside, so that it could well protect the operator’s safety.
6.Machine with good safety design. While the workers place the materials or take out the final product, the bottom mold can be moved outward, so the workers is not under the upper mold. Only after the worker leave the machine, the machine should be allowed to start by pressing the two palm buttons.
7.Equipped with PLC and touch screen to realize easy control. Different languages can be input as requirement (standard language is Chinese and English).
The identity of rawhide dog chews:
1)Size: 2.5"-12.5"
2)Material:cowhide
3)Appearance: natural, bleached,smoked
4)Packing: PVC (PE)bag and header card
5)For all kinds of pets
6)Prompt healty teeth
Features
1.This Punching Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.
2. It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
3. The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
b. Project planning and design service;
d. Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e. Training of equipment maintenance and operating personally;
f. New production techniques and formulas;
g. Provide 1 year complete warranty and life-time maintenance service.
