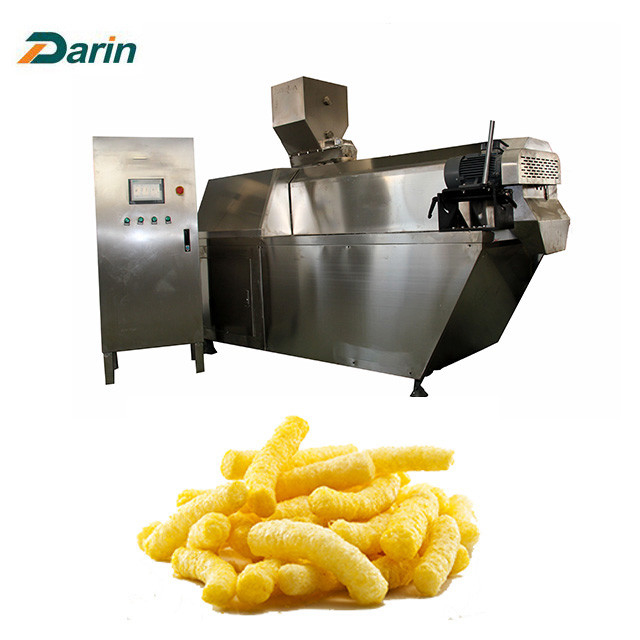

Corn Rice Wheat Food Extruder Puff Snack Machine For Onion Ring / Core Filled Food
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DARIN |
| Certification: | CE |
| Model Number: | DR-65/70/85/90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks. |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 sets per year |
|
Detail Information |
|||
| Production Name: | Corn Rice Wheat Food Extruder Puff Snack Machine For Onion Ring / Core Filled Food | Dimension(L*W*H): | 2150*1500*2300 |
|---|---|---|---|
| Voltage: | 380v, 50hz, 3phases (adjustable) | Warranty: | 12 Months |
| Applied: | Corn Puff Snack Extruder | Material: | SS304 |
| Manual: | English Version | Capacity: | 120-150kg/h,200-250kg/h,400-500kg |
| High Light: | puff snack extruder,corn puff extruder machine |
||
Product Description
Food Extruder Machine for Corn Snacks/Onion Ring/Core Filled Food
Description for the corn snacks machine line:
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel
and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
3. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5.The gearbox has automatic lubrication function, with extends gear life.
6. Main Motor from SIEMENS(CHINA), ensure its Powerful Extrusion and Excellent Performance.
Raw materials' range for Puff snack food production:
adopts flour of corn, rice, wheat, oat, barley etc with liquid and other additives as ingredients
Variety shapes are available for ball, tube, stick, ring, fruit loop, car, bear,star, wheel and flower and heart shape by changing the mould in the extruder. We will design and make the moulds according to your requirement after the order.
Corn Snacks Puffing Machine capacity:
150kg/h, 250kg/h, 500kg/h
Flow chart
Snacks Food Extruder/Puff Snack Food Machine

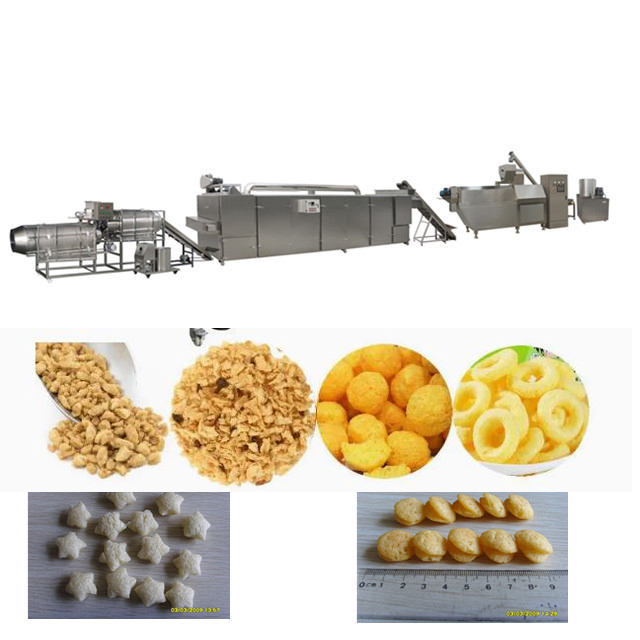

Mixing system---Extruder---- -Roasting system----Flavoring system---Packing system(Optional)
Our service
| Before | During | After |
| 1. According to the clients'special requirement, offering the reasonable plan and free design helping to select the equipment. | 1..Inspect the machine before leaving the factory. | 1. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa and a nominal $100 daily subsidy per person. |
| 2.Provide the standard device and the flow chart | 2.Welcome to visit our factory or the domestic clients’ factory. | 2. Provide the basic formula |
| 3.Provide the free consultation of the equipment | 3Help client design the factory and offering professional advice, free engineering drawing for the factory layout. | 3. Train the first-line operator. |
| 4. Operation/ Service/ Maintenance Manual: Provided In English. | ||
| 5. Oversea install and debug the equipment. |
Machines Materials:
a. Screws: 38# CrMOALA
b. Parts where touch food: Food grade stainless steel.
Snack Food Extrudeuse Machine
Technical Parameters
|
Model |
Capacity |
Power |
Dimension |
|
DR-65 |
120-150kg/hr |
70kw |
22 x 5 x 3m |
|
DR-70 |
200-260kg/hr |
90kw |
24 x 5 x 3m |
|
DR-85 |
300-500kg/hr |
120kw |
30 x 5 x 3m |
FAQ
1. What's payment terms, trade terms you accept?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer FOB QINGDAO price. Also accept other ways like L/C.
2. Does it easy to operate and what can i do if it doesn't work?
First, our machine is stable and easy to operate by one man, what you do is just operate the PLC clean the machine regularly. And we will sent you manual and video for helping to learn the machine.
If there is something goes wrong, you can call us, video-chat, e-mail us. And we will give you solutions ASAP. Our engineer also can be distributed to overseas as you required.
3. Why choose us?
17 years with high quality and competitive price as well as our service, being high evaluation by our clients.
All our machines are CE certified and all the machines have been exported to overseas countries and wildly used in food and chemical industry sector etc.
We sincerely welcome customers from all over the world to establish and develop long-terms cooperation relationships on the basis of equality and mutual benefits.
Machine Running Video link:
