Automatic Cheese ball / puffs snack food machine / production line
Product Details:
Place of Origin: | China |
Brand Name: | Darin |
Certification: | CE/ISO9001 |
Model Number: | DR-65/70/85 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD29,000-50,000/line |
Packaging Details: | wooden case |
Supply Ability: | 100set/year |
Detail Information |
|||
Condition: | New | Voltage: | 380v, 50hz, 3phases (adjustable) |
---|---|---|---|
Dimension(L*W*H): | 2150*1500*2300 | Capacity: | 120-150kg/h,200-250kg/h,400-500kg |
Manual: | English Version | Material: | SS304 |
High Light: | puff snack extruder,corn puff extruder machine |
Product Description
Automatic Cheese ball/puffs snack food machine/production line
1. Description

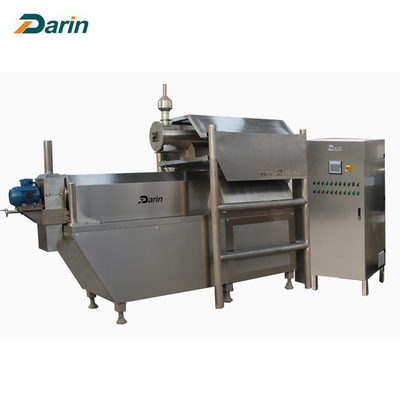

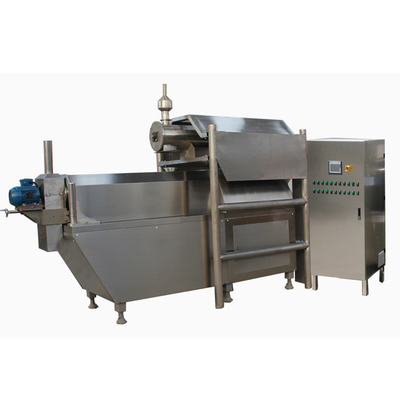

Snacks Food Extruder/Puff Snack Food Machine
Snacks Food Extruder/Puff Snack Food Machine adopts corn, rice, wheat, oat, barley, etc as ingredients to make puffed snack/breakfast cereals. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
Snacks Food Extruder/Puff Snack Food Machine
2. Raw materials' range for Puff snack food production:
Puffed Corn Snacks Food Production Chain
All kinds Cereals' powder(flour)
Snacks Food Extruder/Puff Snack Food Machine
3. Products:
Snacks Food Extruder/Puff Snack Food Machine

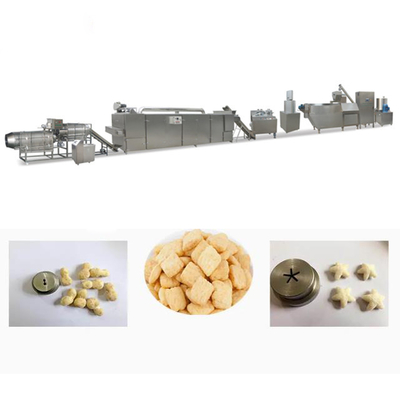

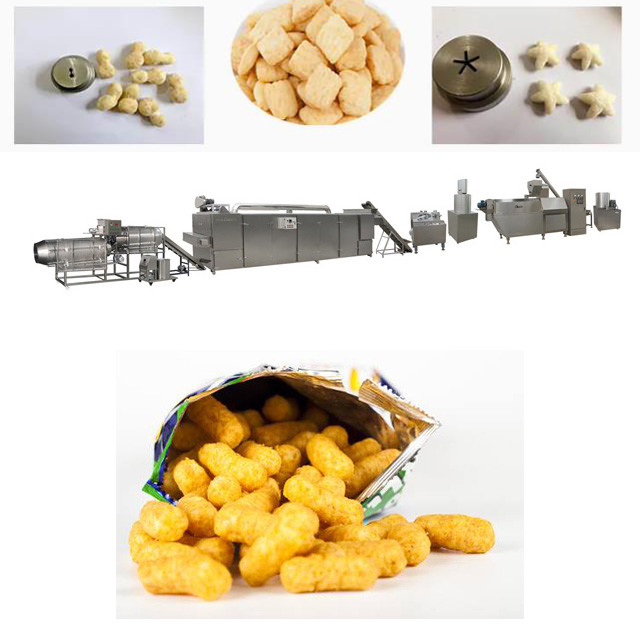

Variety shapes are available for ball, tube, stick, ring, fruit loop, car, bear,star, wheel and flower and heart shape by changing the mould in the extruder. We will design and make the moulds according to your requirement after the order.
Corn Snacks Puffing Machine
4. Capacity
Snacks Food Extruder/Puff Snack Food Machine
150kg/h, 250kg/h, 500kg/h
Corn Snacks Food Extruder
5. Flow chart
Snacks Food Extruder/Puff Snack Food Machine
Mixing system---Extruder---- -Roasting system----Flavoring system---Packing system(Optional)
Puffed Corn Snacks Food Production Chain
6. Power:
Snacks Food Extruder/Puff Snack Food Machine
3 phases electricity will be required, we will make the machines with the right motors, electrical elements according to the electricity in your place. (Could you please kindly let me know the Voltage and frequency in your factory in your inquiry? For example: It is 380V/50Hz in 3 phases and 220V/50Hz in single phase in China).
Puffed Corn Snacks Food Production Chain
7. Machines Materials:
Corn Snack Extrudeuse Machine
a. Screws: 38# CrMOALA
b. Parts where touch food: Food grade stainless steel.
Snack Food Extrudeuse Machine
8. Main Technical parameters na
model | installed power | power consumption | output | size |
DR65 | 81.5kw | 53kw | 120-150kg/h | 21000x1200x2200mm |
DR70 | 116kw | 76kw | 200-250kg/h | 23000x1500x2200mm |
DR85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
Why We Are The Best Choice
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting.
Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. World famous brand Siemens main motor, guaranteeing good quality
5. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
