Dental Care Moulded Pet Chewing dog food making machine for Pet treats
Product Details
| Name: | High Quality Dental Care Moulded Pet Chewing Food Injection Machinery | Voltage: | 380V, 50HZ |
|---|---|---|---|
| Power(W): | 89kw | Commissioning Service: | Provided |
| Dimension(L*W*H): | 8.9 X 2.3 X 2.8m | Forming Method:: | Mould |
| Pet Treats Shape: | Lovely Shapes Can Be Made | Application: | Pet Food |
| Highlight |
food processing machinery,animal food making machine |
||
Product Description

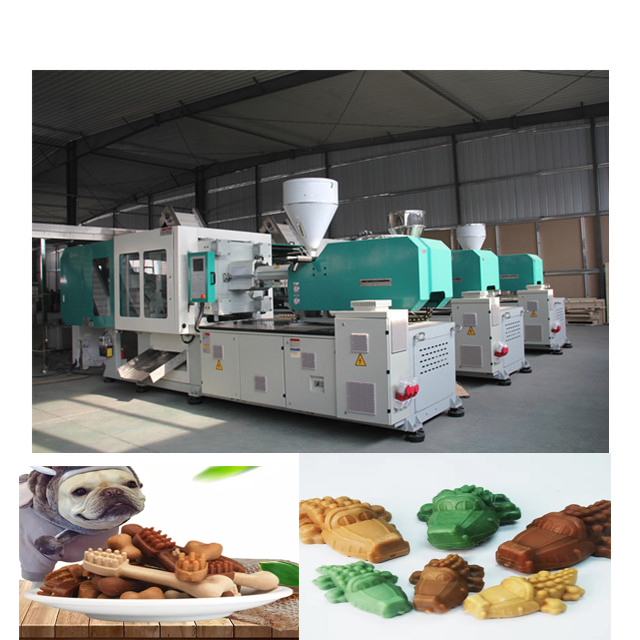

High Quality Dental Care Moulded Pet Chewing Food Injection Machinery
High Quality Dental Care Moulded Pet Chewing Food Injection Machinery can provide different recipes to meet various market demands. With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.
The shapes of pet treats are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. Also, we can provide different recipes to meet various market demands.
Technical Parameter
|
Model |
MK-268 |
|
Screw diameter |
60mm |
|
Screw L/D Ratio |
18.8 |
|
Short volume |
707mm |
|
Short Weight |
636g/22.4oz |
|
Injection pressure |
142Mpa |
|
Injection rate |
239g/s |
|
Plasticizing capacity |
49g/s |
|
Screw speed |
180rpm |
a) Equipped with servo motor to realize higher efficiency and lower consumption.
b) Dust, oil proof and colorful touch switch control panel.
c) El display of pressure, speed, time and distance for each motion.
d) Shut-down device with 100 presets mold data memory.
e) Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
f) PID barrel temperature control: temperature abnormal & electrical wire breaking alarm.
g) SSR-solid state temperature controller.
h) Screw cold start protection.
i) Abnormal shot detection.
j) Output quantity and packaging quantity preset.
k) Clamping, injection and ejection, and carriage action (option) by linear potentiometer.
l) Screw rotating speed read-out.
m) Security code function to avoid missing data or careless changing.
n) Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently.
pet food machinery and relative packing machine. After years of development, has established a mature sales and agency network. machine runs in more than 50 countries including USA, Germany, Italy, Span, Holland, Australia, Brazil,Mexico, Egypt etc. All machines are CE certified with premium quality and stable performance.
Commissioning Service
| after sales service1 | helping customer to layout desing according to factory size, also workshop design with electricity power, water supply, gas power, material storage, final storages. |
| after sales service2 | supplying 10-14 days for the commissioning service |
| after sales service3 | supplying 1 year guarantee from date of completion of commissioning service |
| after sales service4 | assistance to install and adjust the processing line |
| after sales service5 | providing basic formula for the production |
| after sales service6 | clerks training |
