High Efficiency Moulded Dog Snacks Chewing Making Machine / dog food machine
Product Details
| Name: | High Efficiency Moulded Dog Snacks Chewing Making Machine Wiht Model DM268 | Application: | Pet Dog Treats |
|---|---|---|---|
| Weight: | 5000kg | Voltage: | 380V, 50HZ |
| Power: | 89kw | Guarantee: | 1 Year |
| Spare Parts: | 1 Set | Mold: | Various Shape |
| Highlight |
food processing machinery,animal food making machine |
||
Product Description

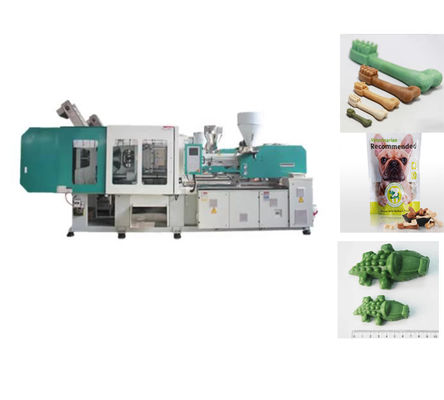

High Efficiency Moulded Dog Snacks Chewing Making Machine
The shapes of dog treats food are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc.
Also, we can provide different recipes to meet various market demands.
| Number | Features |
| 1 | SSR-solid state temperature controller. |
| 2 | Screw rotating speed can read-out. |
| 3 | Super low pressure clamping ensures security of user, and maintains lifespan of machine efficiently. |
| 4 | Abnormal shot detection. |
| 5 | EL display of pressure, speed, time and distance for each motion. |
| 6 | Dust, oil proof and colorful touch switch control panel. |
| 7 | Screw cold start protection. |
| 8 | Pet Treats Injection Molding Machine equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure. |
| 9 | Output quantity and packaging quantity of pet toy chews food can preset. |
| 10 | Clamping, injection and ejection (option), and carriage action (option) by linear potentiometer. |
| 11 | Pet Treats Injection Molding Machine equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure. |
| 12 | Security code function to avoid missing data or careless changing. |
| 13 | Shut-down device with 100 presets mold data memory. |
Technical Parameters
| Item | Name of item | Unit | MK268 |
| Injection Unit | Screw Diameter | mm | 55 |
| Screw L/D Ratio | Ratio | 20 | |
| Injection Volume (Theoretical) | cm | 601 | |
| Injection Weight (PS) | g | 548 | |
| Injection Pressure | Mpa | 185.1 | |
| Injection Rate into Air | g/s | 223.7/276.1 | |
| Injection Stroke | mm | 256 | |
| Injection Speed | Mm/s | 95/116 | |
| Screw Speed | rpm | 201/246 | |
| Clamping Unit | Clamping Force | KN | 2600 |
| Clamping Stroke | mm | 550 | |
| Space Between Tie-bars | mm×mm | 580 x 580 | |
| Max. Mould Height | mm | 600 | |
| Min. Mould Height | mm | 250 | |
| Ejector Stroke | mm | 160 | |
| Hydraulic Ejection | KN | 68 | |
| Ejector Rob Quantity | pcs | 9 | |
| Others | Max. Pump Pressure | Mpa | 17.5 |
| Pump Motor Power | kw | 22/30 | |
| Heater Power | kw | 15.9 | |
| Hopper Volume | L | 50 | |
| Oil Pump Volume | L | 550 | |
| Machine Weight | t | 8.5 | |
| Mould Positioning Ring Diam | mm | 160 | |
| Sphere Radius | mm | SR10 | |
| Machine Dimension | m x m x m | 5.82 x 2 x 2 |
FAQ
1. Could we visit your factory to check the machine carefully and closely?
You’re more than welcome to visit , will provide machine test running, face to face discussion and turnkey project design solution.
2. Could you afford technician team to guide our installation and commissioning?
Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.
3. How long is your machine's guarantee time?
One year since the machine arrive your factory.
4. If some parts break after warranty, what should we do?
supply full-life after sales service, whenever new parts needed, we will help to supply new ones at reasonable price & in shortest time.
5. If we show our workshop size, can you design layout for the whole line?
Auto CAD layout will be provided as client’s workshop size.
6. What is the material of the machine?
Stainless steel, especially parts contacting with materials, conforming to food grade.
Commissioning Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
