High Quality 3D Pellets Food Machine/Snack Food Extruder Machine
Product Details:
| Place of Origin: | Jinan CHINA |
| Brand Name: | DARIN |
| Certification: | CE ISO9001 |
| Model Number: | DRD-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks. |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | T/T or L/C, D/P, Western Union |
| Supply Ability: | 50 sets per year |
|
Detail Information |
|||
| Product Name: | High Quality 3D Pellets Food Machine/Snack Food Extruder Machine | Application: | 3D Snacks Extruding Line Is For Compound Pellet Production By Single-screw Extruder. |
|---|---|---|---|
| Material: | SUS304 | Condition: | Continuous & Automatic |
| Layout: | AutoCAD Format According To Client’s Workshop | Manual: | English Version |
| Standard: | CE | Guarantee: | 12 Months |
| High Light: | samosa making machine,3d snack pellet machinery |
||
Product Description

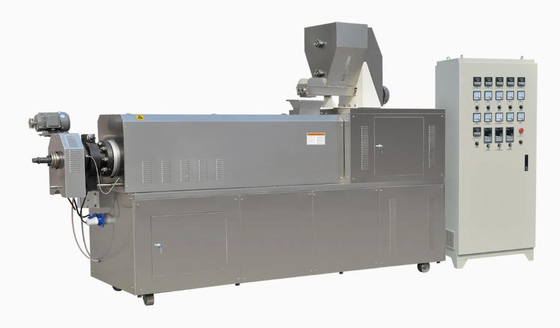

High Quality 3D Pellets Food Machine/Snack Food Extruder Machine
High Quality 3D Pellets Food Machine/Snack Food Extruder Machine is designed for making the pellets, chips, fried snacks by single screw extruder machine.
Raw materials can be potato starch, corn starch, wheat flour, cassava starch etc.
Through the extruder cooking, the snacks can be shaped in many different shapes, like shell,
screw, spiral, square tube, circle tube, and so on.
After drying and frying, flavoring with the flavor powder can get delicious snacks food.
Also, by changing the shaping machine we can produce 3D pellet, waved chips, potato chips,
shrimp chips and so on.
Specifications
1. the Tri-D pellet making machine
2. single screw food extrusion technology
3. can produce shell,screw,bugle,flake shapes
1. Products: By changing the shaping machine, we can produce 3D pellet, waved chips,
potato chips, shrimp chips and so on.
2. Capacity: 80-100kg/h,250-300kg/h
3. Flow Chart: Mixing —Extrusion —Shaping —Drying —Frying —Flavoring
4. Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according
to customers' local voltage of different countries.
5. Machines Materials: All the machines are made by food grade stainless steel.
Technical Parameters
|
Model |
Capacity |
Power |
Dimension |
|
DRD-100 |
100-150kg/hr |
240kw |
30 x 5 x 3m |

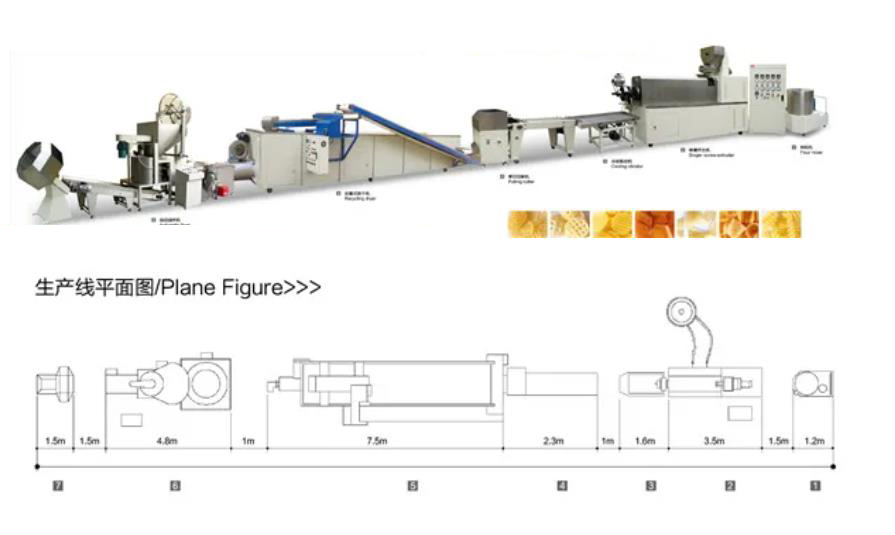

Processing flow:
Raw material mixer----conveyor----Twin screw extruder----Pattern presser----Shaping and cutting machine----Elevator----Separating machine----Vibrating sifter-----Dryer
