Newly Designed PLC Hydraulic Dog Bone Making Machine Pet Food Processing Equipment CE
Product Details
| Model Number: | MK-20T | Power(W): | 89W |
|---|---|---|---|
| Weight: | 2000KG | Dimension(L*W*H): | 8.9 X 2.3 X 2.8m |
| Commissioning Service: | Provided | Extrusion: | Stainless Steel 304 |
| Type: | Pressed Bone Machine | Electric Device: | Famous Brand |
| Highlight |
hydraulic dog bone making machine,pet food processing equipment ce,newly dog bone making machine |
||
Product Description
Rawhide Pet Bone Pressing Machine with ISO9001 is type of Flour Column and Three Board, the upmost output tonnage is 20t.
It can be adjusted amon the range of 5t-20t according to the different products’procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).
And the dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our MK-20T Pressing Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.
In addition, our MK-20T Pressing Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.

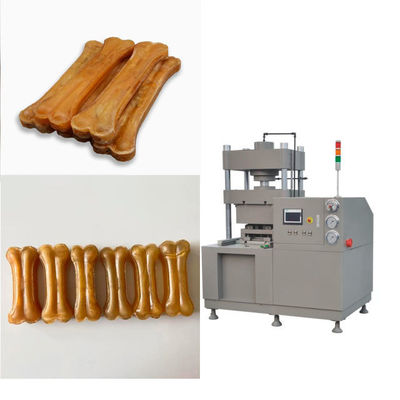

Machine Picture
Technical Parameters
|
Project |
MK-20T |
|
Liquid Pressure of Work (MPa) |
14-21 |
|
|
5-20 |
|
|
Left and Right 500 |
|
|
|
|
Working surface size (mm) |
|
|
Front and Back 400 |
|
|
Height of Working Table Off the Ground(MM) |
780 |
|
Biggest Operational Height(mm) |
400 |
|
Close(mm) |
200 |
|
|
200 |
|
Motor Power |
5.5KW |
|
Structural Style |
Flour Column Three Board |
|
|
Above Oil Cylinder |
|
|
380VAC,50/60Hz |
|
Weight |
1108kg |
|
Dimension |
600*500*1780mm |
Commissioning Service
g. Provide 1 year complete warranty and life-time maintenance service.
Product Highlights
Rawhide Pet Bone Pressing Machine with ISO9001 is type of Flour Column and Three Board, the upmost output tonnage is 20t. It can be adjusted amon the range of 5t-20t according to the different products’procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide ...
