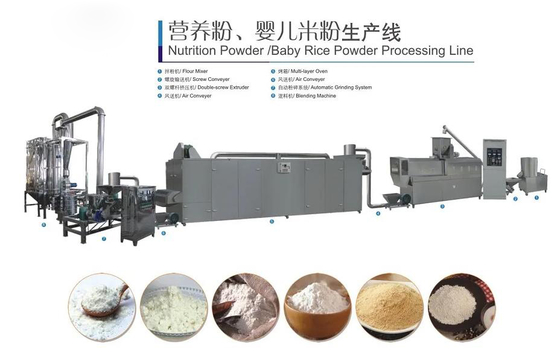

Auto Food Extruder Machine , Infant Nutritional Powder Production Line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Mikim |
| Certification: | CE |
| Model Number: | MK-65/70/85/90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks. |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 sets per year |
|
Detail Information |
|||
| Condition: | Continuous & Automatic | Dimension(L*W*H): | 2150*1500*2300 |
|---|---|---|---|
| Voltage: | 380v, 50hz, 3phases (adjustable) | Warranty: | 12 Months |
| Applied: | Nutrition Powder Extruding Line | Material: | SS304 |
| Manual: | English Version | ||
| Highlight: | rice powder making machine,baby food maker machine |
||
Product Description
Auto Food Extruder Machine , Infant Nutritional Powder Production Line
Twin screw extruder instant porridge powder puffed flour baby cereals food production making machine is researched and developed by our company based on the foreign advanced technology.Twin screw extruder instant porridge powder puffed flour baby cereals food production making machine transforms the method from raw grains cooking into high-temperature and highpressure method, and then is extruded within five seconds.Meanwhile this processing line can denaturant the starch of the raw grains and be in favor of the absorption .Twin screw extruder instant porridge powder puffed flour baby cereals food production making machine has the higher nutrition than the traditional craft. Many food manufacturers adopt this kind of food equipments in the present This line can product infant food, nutritional powder ,instant powder and so on
Features & Advantages
- There's no any wastage or material leak in the whole production procedure.
- Nutrition Powder Extruding Line is automatic processing line, and easy control.
- The nutritional substance such as Vitamin can be added to make sure the enough nutrition for babies.
- Different recipes can be made to meet various market requirements.
- The production period is short and production cost is low.
- Children's nutrition powder, black sesame paste and other nutrition powder are all the final products.
Technical Parameters
|
Model |
Capacity |
Power |
Dimension |
|
MK-65 |
120-150kg/hr |
75kw |
20 x 5 x 3m |
|
MK-70 |
200-260kg/hr |
90kw |
22 x 5 x 3m |
Detailed specification of a single machine:
Name: Mixer
Capacity: 50kg/batch
Power: 7.5kw
Size:1410*760*1350mm
Function: It max the raw material, water, and other raw material.
Name: Screw conveyor
Capacity: 500kg/h
Power: 1.1kw
Size:2670*600*2545mm
Function: Converying the raw material to Twin Screw Extruder.
Working Principle: The Motor drives the screw in elevator, lifting the matrial from the low end to the high end.

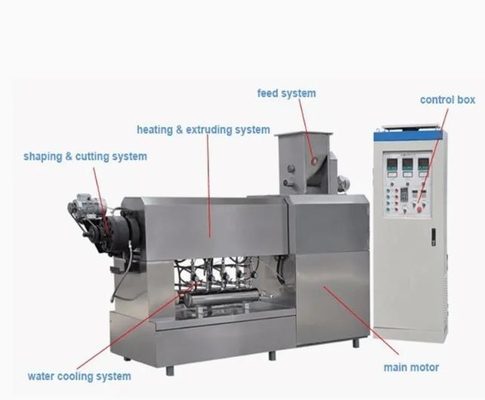

Name: Twin Screw Extruder
Capacity: 500-800kg/h
Power: 84kw
Size: 413*1030*2360mm
Function: This equipment is developed on twin roating screw technology. It contains extrusion system, transmission system. Feeding material system, roll cutting system and control system. The frequency of electrical motor is adjustable with transducer. The main functions of extruder are extrusion and material puffing.
Name: Air Conveyor
Capacity: 500kg/h
Power: 1.1kw
Material: Food Grade 304 stainless steel
Function: This machine is to convey the pet food to the dryer and pre-dry the pet food.
Name: Dryer
Capacity: 500kg/h
Power: 80kw
Material: Food Grade 304 stainless steel
Function: As pet food go through the drier, they will be dried quickly in a clean condition.
Name: Grinder
Capacity: 200kg/h
Power: 10kw
Material: Food Grade 304 Stainless Steel
