Ball Shape Corn Puff Snacks Machine
Product Details
| Condition: | New | Dimension(L*W*H): | 2150*1500*2300 |
|---|---|---|---|
| Voltage: | 380v, 50hz, 3phases (adjustable) | Warranty: | 12 Months |
| Applied: | Corn Puff Snack Extruder | Material: | SS304 |
| Manual: | English Version | Capacity: | 120-150kg/h,200-250kg/h,400-500kg |
| Highlight |
grain puffing machine,corn puff extruder machine |
||
Product Description

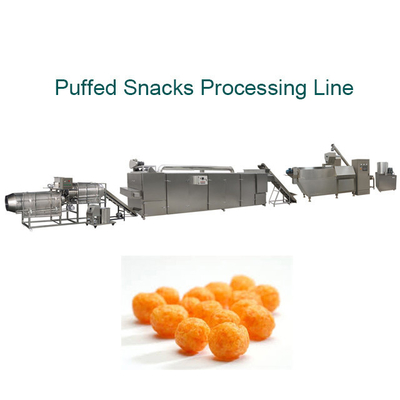

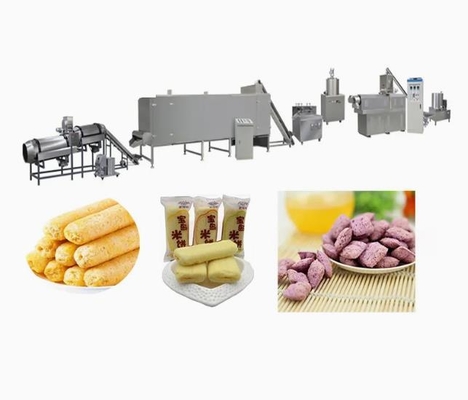

Ball Shape Corn Puff Snacks Machine
1. Brif Introduction
Cheeots Snacks/Corn Curls /Kurkure/Nik Nak Snacks Process Line adopts American Extrusion technology, it takes corn grits(not powder) as raw materials , through single screw rotary head extruder direclty expanding out twist corn curls. After this it will be processed with dryer or fryer to get final crispy cheetos snacks.
The processing line is foodstuff equipment researched and developed on the basis of international advanced technology. The performance and quality have reached the highest international level of the same line. From feeding materials, extruding and inflating, roasting, spraying to finished products are done once time with automation. We fill the gap of the first-class food produced with extruded and inflated technology.
Puffs Cheese Ball Production Line Function
This processing mchine can be used to produce different sizes of cheetos snacks, the size and thickness can be adjusted .
1) Capacity: 150kg/h2) Raw material: Corn Grits.
2.Main Features
1) Stable performance: adopting imported frequency or electromagnetic controlling
system, high automation and smooth operation
2) Permanent working life: with special material and technology, the screw and nut
involved can work continuously for 1 year under conditions of high wear and pressure
3.Technical Parameters
| model | installed power | power consumption | output | size |
| MK65 | 81.5kw | 53kw | 120-150kg/h | 21000x1200x2200mm |
| MK70 | 116kw | 76kw | 200-250kg/h | 23000x1500x2200mm |
| MK85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and
wear-resting. And it has good self-cleaning ability and does not need to discharge or
clean the barrel and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless
steel coating.
3. Radiator is increased on driving part for forced cooling effect, and it ensures extruder
operate safely.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5.The gearbox has automatic lubrication function, with extends gear life.
6. Main Motor from SIEMENS(CHINA), ensure its Powerful Extrusion and Excellent
Performance.
Why You Must Choose Us
1. Big Capacity Feeding Hopper, Variable Frequency Speed, Two Stages Mixing Wings ensure the Fast and Efficient Mixing and Feeding.
2. Double Axis Differential Conditioner, Available for Steam, Pre-cooking and High Efficient.
3. Linear Slide Face Cutting System, Strong Power, Variable Frequency Speed and Large Output,
4. Unique Designed Square Barrels, Made by Hard Carbide Sleeve, Hard-wearing and Durable.
5. Modular Circular Groove Screws, available for Different Extrusion Rate Applications.
6. Steam Heating System, ensure the Most Efficient, Continuous and Stable Heating Effects.
7. World-famous Brands Electronic Apparatus used in the Controller Box, make sure the Extrusion Process Perfect.
8. Main Motor from SIEMENS(CHINA), 90KW, ensure its Powerful Extrusion and Excellent Performance.
Quick Details
Condition: New
Place of Origin: China (Mainland)
Brand Name: MIKIM
Model Number: MK65/MK70/MK85
Application: snack food / nutrition food/food
Power(W):30-150 kw
Dimension(L*W*H): 21000x1200x2200mm
Certification: CE/ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details: Suitable for export wooden box
Delivery Detail: About 35 days after receiving the down payment
Our Terms and After-sale Service
1. Delivery time:40 days after we receive the deposits
2. Payment: 30% deposits, balance against copy of bill of lading or LC at sight
3. Installation and commision: seller will send 1 technician to buyer's factory, All expenses including visa, round trip tickets, daily accommodation will be on the buyer’s account
4. Warranty is for one year
5. Accessory and spare pats will be offered with the whole line
Product Highlights
