Fully stainless steel 304 breakfast cereals corn flakes production line
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Mikim |
| Certification: | CE ISO9001 |
| Model Number: | MK-65/70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 sets per year |
|
Detail Information |
|||
| Product Name: | Corn Flakes Production Line | Application: | Produces Corn Flakes, Breakfast Cereals, And Puff Snacks Similar To Kellogg And Nestle Products, The Shapes And Sizes Can Be Various. |
|---|---|---|---|
| Condition: | New | Layout: | AutoCAD Format According To Client’s Workshop |
| Manual: | English Version | Standard: | CE |
| Highlight: | rice flakes making machine,maize flakes machinery |
||
Product Description
breakfast cereals corn flakes production line
1. Brief introduction of kelloggs corn flakes processing line

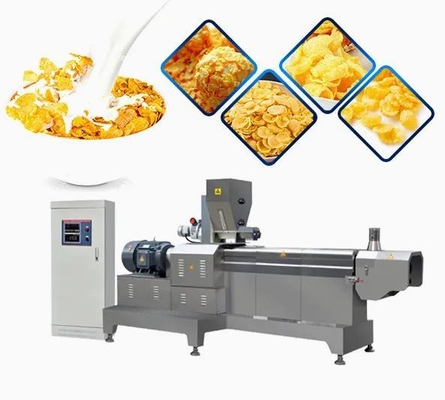

This kelloggs corn flakes processing line is an automatic process line developed by our company, adopting the advanced technology of Europe.The main materials are various cereals, such as corn flour, wheat flour, oats, buckwheat and so on. This process line can intensify vitamins and minerals and it can be added a little cocoa and sugar. Quantitative water should be added to them and mix with them completely, and then these things are extruded by the double screw extruder for finishing the process of cooking,slaking and granulating,etc.
Features of kelloggs corn flakes processing line:
a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
b. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
c. The gearbox has automatic lubrication function, with extends gear life.
d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
e. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process perfect.
f. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.
Details of kelloggs corn flakes processing line:
a. Raw materials: adopts corn flour as raw materials.
b. Products: This line can be used to produce corn flakes, breakfast cereals, snacks, cereals by adjusting the moulds from extruder.
c. Capacity: 150kg/h, 260kg/h for corn flakes; 150kg/h, 260kg/h and 500kg/h for breakfast cereal.
d. Flow chart:

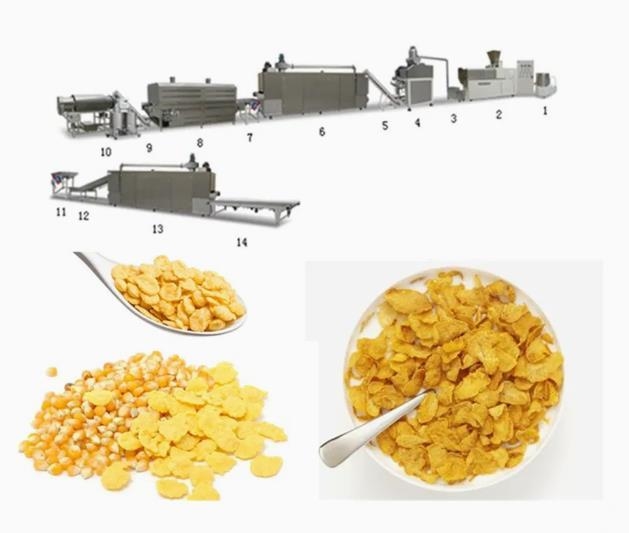

Mixing system---Extrusion system---Cooling system---Flaking system---Drying system---Toasted system---Sugar Spraying system---Drying system---Packing system
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
f. Machines Materials: All the machines are made by stainless steel at food grade, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
2. Machine parameter of kelloggs corn flakes processing line
| Model | MK- 65 | MK- 70 | MK- 85 |
| Installed power | 76 kw | 95 kw | 178kw |
| Power consumption | 54 kw | 66 kw | 125 kw |
| Production capacity | 140-160 kg/h | 240-260 kg/h | 500kg/h |
| Dimension | 1700*2000*2500mm | 2200*2000*2500mm | 2600*2000*3500mm |
3. Package and Transportation for kelloggs corn flakes processing line
Packing:
Inside: plastic bag for the kelloggs corn flakes processing line
Outside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).
Transportation:
Shipping, train, express, or upon clients' demands.
4. Our service for kelloggs corn flakes processing line
Before sale services:
1). Provide the free consultation of the equipment.
2). Provide the standard device and the flow chart.
3). According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1). Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2). Welcome to visit our factory or the domestic clients' factory.
3). Inspect the machine before leaving the factory.
After sale services:
1). Oversea install and debug the equipment.
2). Train the first-line operator.
3). Provide the basic formula.
4). Operation/ Service/ Maintenance Manual: Provided In English.
5). We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa fee and a nominal $50 daily subsidy per person.
5. Our clients
We have through the years established good working relationships with some reputable organizations both at home and abroad with outstanding goodwill. Our clients will have a good trip and happy coorperating experience with us,
6. About us
MIKIM is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.
We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc. Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
