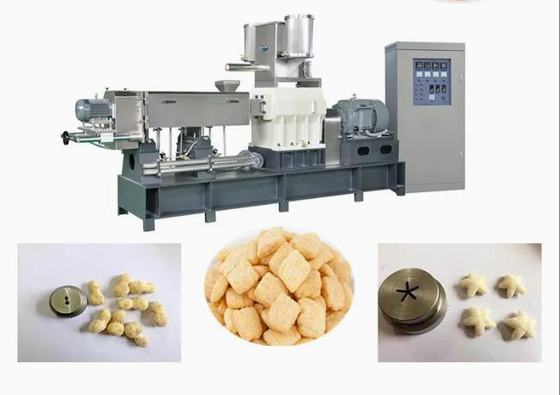

Automatic wheat corn rice puffing machine for cereal 150kg/h , 240kg/h , 500kg/h
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DARIN |
| Certification: | CE |
| Model Number: | DR-65/70/85/90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks. |
| Delivery Time: | 30 working days after received your payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 sets per year |
|
Detail Information |
|||
| Condition: | New | Dimension(L*W*H): | 2150*1500*2300 |
|---|---|---|---|
| Voltage: | 380v, 50hz, 3phases (adjustable) | Warranty: | 12 Months |
| Applied: | Corn Puff Snack Extruder | Material: | SS304 |
| Manual: | English Version | Capacity: | 120-150kg/h,200-250kg/h,400-500kg |
| High Light: | grain puffing machine,corn puff extruder machine |
||
Product Description
Cereal/Corn Filling Snacks Food Machines take corn flour, rice flour, corn grits, millet, etc as raw materials for production. "Low cost, high profits" is the suitable generalization of Snack food business line, especially for puff snack food production.
2. Raw materials:
adopts corn, rice, wheat, oat, barley etc as ingredients
3. Products:
Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower
and heart shape by adjusting the mould in the extruder
4. Capacity:
150kg/h, 240kg/h, 500kg/h

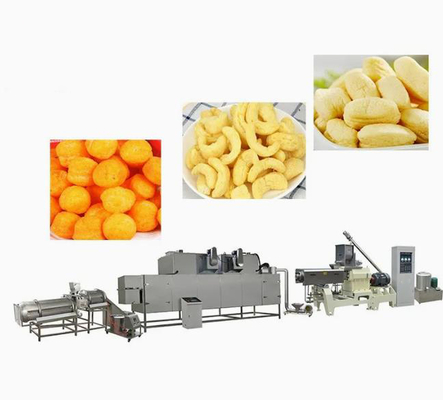

5. Flow chart:
Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system
6. Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according
to customers’ Local voltage according to different countries
7. Machines Materials:
All the machines are made by stainless steel
8. Technical Parameters
|
|
Mixer | DRM-65 |
| Voltage | 380V/50HZ/3KW | |
| Capacity | 15-20kg per batch | |
| Size | 700*500*1100mm | |
 |
Screw conveyor | DRS-65 |
| Voltage | 380V/50HZ/1.5KW | |
| Capacity | 120-150kg/h | |
| Size | 1500*700*2500mm | |
|
Extruder machine | DRS-65 |
| Voltage | 380V/50HZ/23KW | |
| Capacity |
120-150kg/h |
|
| Size | 2800*850*1800mm | |
| |
Cutting machine | DRC-65 |
| Voltage | 380V/50HZ/0.55KW | |
| Capacity | 120-150kg/h | |
| Size | 1200*600*2300 | |
| |
Elevator | DRH-65 |
| Voltage | 380V/50HZ/0.55KW | |
| Capacity | 120-150kg/h | |
| Size | 1200*600*2300mm | |
| |
Oven dryer |
DRR-65 |
| Voltage | 380V/50HZ/26KW | |
| Capacity | 120-150kg/h | |
| Size | 5300*1250*2300mm | |
| |
Double drum flavor line | DRF-65 |
| Voltage | 380V/50HZ/3KW | |
| Capacity | 120-150kg/h | |
| Size | 5500*750*1950mm |
Technical Parameters
| model | installed power | power consumption | output | size |
| DR65 | 81.5kw | 53kw | 120-150kg/h | 21000x1200x2200mm |
| DR70 | 116kw | 76kw | 200-250kg/h | 23000x1500x2200mm |
| DR85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel
and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.
3. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5.The gearbox has automatic lubrication function, with extends gear life.
6. Main Motor from SIEMENS(CHINA), ensure its Powerful Extrusion and Excellent Performance.
9.Quick Details
Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: DR
Model Number: DR65/DR70/DR85
Application: snack food / nutrition food/food
Power(W):30-150 kw
Dimension(L*W*H): 21000x1200x2200mm
Certification: CE/ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details: Suitable for export wooden box
Delivery Detail: About 35 days after receiving the down payment
Our Terms and After-sale Service
1. Delivery time:40 days after we receive the deposits
2. Payment: 30% deposits, balance against copy of bill of lading or LC at sight
3. Installation and commision: seller will send 1 technician to buyer's factory, All expenses including visa, round trip tickets, daily accommodation will be on the buyer’s account
4. Warranty is for one year
5. Accessory and spare pats will be offered with the whole line
