CE Certificate Chips and corn snacks Puff Extruder Machine production line
Product Details:
Place of Origin: | CHINA |
Brand Name: | DARIN |
Certification: | CE |
Model Number: | DR-65/70/85/90 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | negotiation |
Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks. |
Delivery Time: | 30 working days after received your payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 50 sets per year |
Detail Information |
|||
Condition: | New | Dimension(L*W*H): | 2150*1500*2300 |
---|---|---|---|
Voltage: | 380v, 50hz, 3phases (adjustable) | Warranty: | 12 Months |
Applied: | Corn Puff Snack Extruder | Material: | SS304 |
Manual: | English Version | Capacity: | 120-150kg/h,200-250kg/h,400-500kg |
High Light: | puff snack extruder,grain puffing machine |
Product Description
CE Certificate Chips and corn snacks Puff Extruder Machine production line
Description

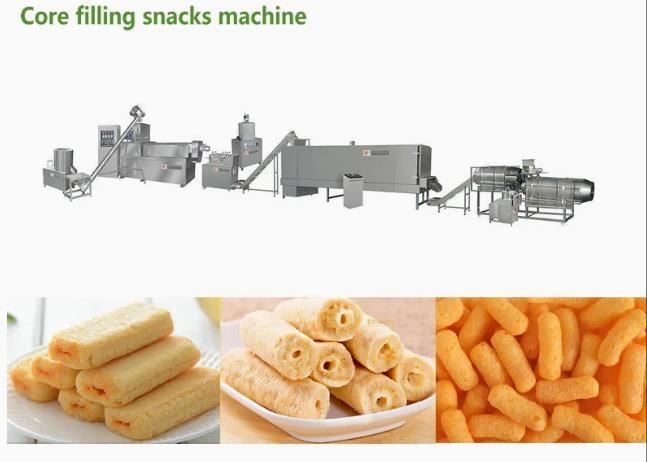

CE Certificate chips and corn snacks production line/extruder adopts corn, rice, wheat, oat, barley etc as ingredients to make puffs snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.
a. Raw Materials: adopts corn, rice, wheat, oat, barley etc as ingredients
b. Products: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder
c. Capacity: 150kg/h, 240kg/h, 500kg/h
d. Flow chart: Mixing system---Extrusion system----Drying system---Flavoring system---Packing system
e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
g. Technical Parameters
model | installed power | power consumption | output | size |
DR65 | 81.5kw | 53kw | 120-150kg/h | 21000x1200x2200mm |
DR70 | 116kw | 76kw | 200-250kg/h | 23000x1500x2200mm |
DR85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
Why We Are The Best Choice
1. Alloy (38CrMoAL) screw made by nitriding process, high strength and wear-resting. Self-cleaning ability, no need to discharge or clean the barrel and screw when roasting or replacing of materials.
2. Adopting speed-adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine, stable materials feeding in the whole food process.
3. Gearbox with automatic lubrication function, extending gear life.
4. World famous brand Siemens main motor, guaranteeing good quality
5. Increased radiator on driving part for forced cooling effect, ensuring extruder operates safely.
6. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
a.) Consultation service before, during, and after sales;
b.) Project planning and design service;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e.) Training of equipment maintenance and operating personally;
f.) New production techniques and formulas;
g.) Provide 1 year complete warranty and life-time maintenance service.
Our Terms and After-sale Service
1. Delivery time:40 days after we receive the deposits
2. Payment: 30% deposits, balance against copy of bill of lading or LC at sight
3. Installation and commision: seller will send 1 technician to buyer's factory, All expenses including visa, round trip tickets, daily accommodation will be on the buyer’s account
4. Warranty is for one year
5. Accessory and spare pats will be offered with the whole line
