Continuous Automatic dog food production line

Continuous Automatic dog food production line

Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: DR65/70/85/85+/90

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid.
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 99 sets per year
Get Best Price Contact Now

Detail Information

Usage: Dry Pet Food Oven: Multilayer Oven:3, 5, 7
Need Workers: 2 Workers For The Pet Food Machine Mold: 6 Sets Molds
Products: Dog Food, Cat Food, Birds Food Payment Terms: Flexible And Negotiable
High Light:

feed extruder machine


dog food extruder

Product Description

roduct Description


Pet food processing line can make the pet food with various shapes, taste and colors, with the scientific nutrition combination, keep our production always suit for the market.
The features of the line are  easy operation, friendly human-machine interface, accurate control to ensure the food can be processed under stable temperature, pressure, humidity and other circumstance.
The reasonable construction design, special material, fast self cleaning function all ensures the solid performance and easy maintenance of the equipment.



1. Description:
1. All equipments are made of stainless steel
2. Fully continuous and automatic.
3. Basic receip supplied.
4. The shapes and sizes can be various by changing the mould.
5. Supply six sets free mould.
6. Packing machine could be supplied to work with the line.
2. Raw materials adopts corn flour, fish meal as raw materials
3. Products: different shapes are made by adjusting the dies from extruder
​4. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton---3ton/h
5. Flow chart:
Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
7. Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function
Technical Parameters


Model DR-65 DR-70 DR-85 DR-90
Capacity 120-150kg/hr 150-300kg/hr 500-800kg/hr 800-1000kg/hr
Power 80kw 90kw 150kw 200kw
Dimension 18 x 5 x 3m 20 x 5 x 3m 35 x 5 x 3m 40 x 5 x 3m

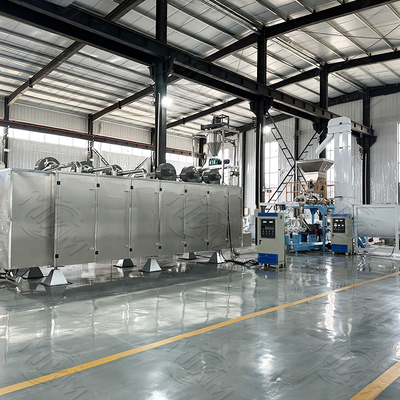

Machine Picture
Continuous Automatic dog food production line 0

Sample Picture

 Continuous Automatic dog food production line 1

Customer visit

Continuous Automatic dog food production line 2                                                                         Certificate

Continuous Automatic dog food production line 3
Machine Details

 Continuous Automatic dog food production line 4
Factory & Office

Continuous Automatic dog food production line 5

Main Product


1 Pet Food Machine

1.1 Pet Food Extruding Line

1.2 Pet Treats Extruding Line

1.3 Pet Treats Molding Machine

1.4 Pet Biscuit Processing Line

1.5 Rawhide Bone Pressing Machine

1.6 Grain Bar Forming Machine

Commissioning Service

1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free installation and commissioning of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and basic formulas;
7. Provide 1 year complete warrantee and life-time maintenance service;
8. Engineers available to service machinery overseas.
9. Provide technical exchanging
10. Provide English Version of
 Installation/Operation/Service/Maintenance Manual

Continuous Automatic dog food production line 6
