Automatic TVP / TSP Soya Protein Food Extrusion Machine With ISO Certificated
Product Details
| Product Name: | Soya Protein Processing Line | Application: | It Used Soya Bean Powder Or Peanut Powder To Break Spherical Protein Molecule To Form Chain Protein Molecule, Thus Creating Slice-like Fiber Structure, By Powder-grinding, Stirring, High-temperature, High Pressured And High-cutting. |
|---|---|---|---|
| Condition: | Continuous & Automatic | Layout: | AutoCAD Format According To Client’s Workshop |
| Manual: | English Version | Guarantee: | One Year |
| Highlight |
automatic pet food machine,automatic food extrusion machine,tvp pet food machine |
||
Product Description
Automatic TVP/TSP Soya protein food extrusion process line made in china ISO certificated
Brief introduction:
Protein extruder adopts the design of combined fuctional screws.The production parameters
can be controlled automatically and accurately. The line adopts low-temperature soybean meal,peanut meal,
wheat gluten etc .The protein extruded producing is strength,toughness .And the shape is various ,it can be
cylinder,flakes,the strips,rounded grain,square grain and so on.
1. Raw Materials: Low-temperature soybean meal,peanut meal,wheat gluten etc
2. Products: All kinds of protein with different shapes and types.
3. Capacity: 100-150KG/H ,200 -450KG/H,400-800 KG/H
4. Flow Chart: Mixing —Extruding —SpreadingBaking —Drying —Cooling
5.Voltage: Three phases: 380V/50HZ, Single phase: 220V/50HZ,
also can make it according to customers' local voltage of different countries
6. Machines Materials: All the machines are made by food grade stainless steel.

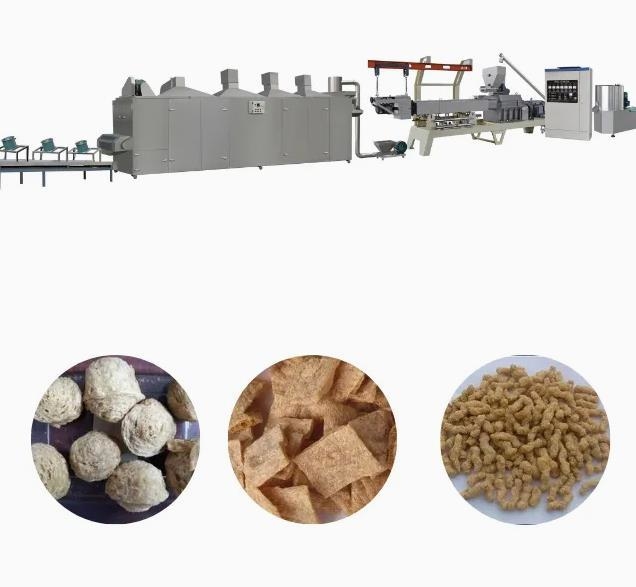

Technical process:
1 Raw material mixer 2 Twin screw Extruder 3 air conveyor 4 five layers Oven
Technical Parameter of Soya Bean Protein Food Processing Line:
|
Model |
MK - 65 |
MK - 85 |
|
Installed Power |
105kw |
150kw |
|
Power Consumption |
70kw |
110kw |
|
Production Capacity |
200 - 260kg/h |
500 - 600kg/h |
|
Dimension |
13x2x2.5 m |
18x2x3.5 m |
Our Professional Service for Soya Bean Protein Food Processing Line:
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Soya Bean Protein Food Processing Line.
Why Choose us as a reliable Soya Bean Protein Food Processing Line supplier?
1. Advantage technology
2. High quality material
3. Tight quality control
4. Accurate maching
5. 7 - 24 hours service
If you have any needs or inquiries, please feel free to contact me!
