• Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching
  • Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching
Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching

Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching

Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: DR-20T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid.
Delivery Time: 45darys
Payment Terms: L/C, T/T, Western Union
Supply Ability: 99setsper year
Get Best Price Contact Now

Detail Information

Model Number: DR-300C Voltage: 380V, 50Hz
Power(W): 89kw Weight: 2000KG
Dimension(L*W*H): 8.9 X 2.3 X 2.8m Warranty: 12 Months
Commissioning Service: Provided Extrusion: Stainless Steel 304
High Light:

dog food maker machine

,

pet food processing line

Product Description

Factory & Office
Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching 0
Commissioning Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are on client’s account.
Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching 1Cow Skin Dog Chews Pressed Rawhide Bones Punching Machine 380V , 50Hz 89kw​
Product Description

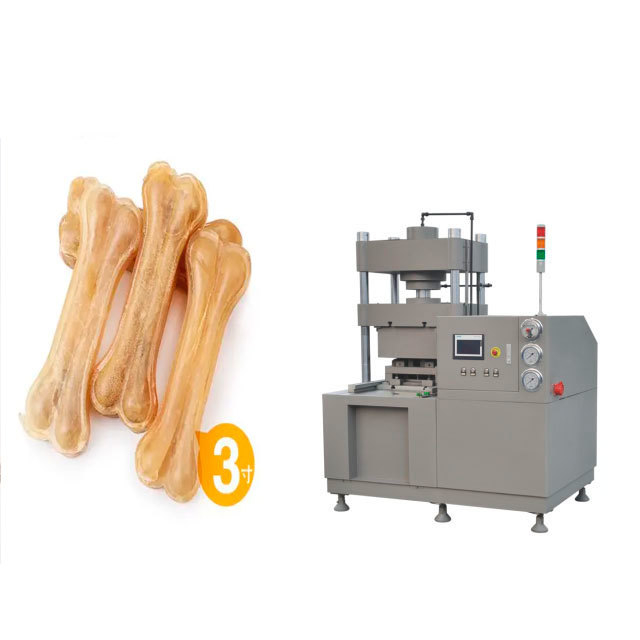

Cow Skin Dog Chews Bone Pressing Machinery could produce pet chewing bone with cowhide, pigskin or sh-eepskin as material. It could press the material to be various shapes and sizes.​


Features

1, This Punching Machine is type of Flour Column and Three Board, the up-most output tonnage is 20t.

2, It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).

3, Punching Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.


Technical Parameters


Project

DR-60T

Liquid Pressure of Work (MPa)

14-21


Theory Output (Ton)

5-20


Working surface size (mm)

Left and Right 500



Working surface size (mm)



Front and Back 400

Height of Working Table Off the Ground(MM)

780

Biggest Operational Height(mm)

400

Close(mm)

200


Cylinder Stroke(mm)

200

Motor Power

5.5KW

Structural Style

Flour Column Three Board



Above Oil Cylinder


Power source

380VAC,50/60Hz

Weight

1108kg

Dimension

600*500*1780mm




Sample Picture

Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching 2

Certificate

Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching 3

Exhibition
Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching 4
Cow Skin Dog Chews Dog Bone Making Machine Pressed Rawhide Bones Punching 5
