Hydraulic Cowhide Bone Press Machinery

Hydraulic Cowhide Bone Press Machinery

Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: DR-60T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid.
Delivery Time: 45darys
Payment Terms: L/C, T/T, Western Union
Supply Ability: 99setsper year
Get Best Price Contact Now

Detail Information

Application: Hydraulic Cowhide Bone Press Machinery Training: Provide By Technician In Commissioning Service
Power(W): 5.5kw Weight: 1200kg
Dimension(L*W*H): 600*500*1780mm Guarantee: One Year
Recipe & Formula: Provide Free Of Charge Material: Stainless Steel 304
High Light:

pet food machine


dog food maker machine

Product Description

Hydraulic Cowhide Bone Press Machinery escription

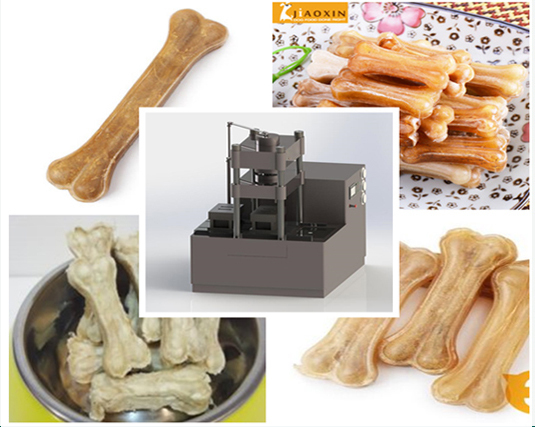

Hydraulic Cowhide Bone Press Machinery could produce pet bone with rawhide as raw materials.

1) It is high speed machine with capacity 1200-1450pcs/hr.

2) PATENT 2 working position x 2 molds cavities = 4 times higher efficiency. It allows two workers to operate this machine at the same time, without any delay.

3) PATENT Opening & Closing Mouth Mold design allows to easy place materials and take out final bones.

4) PATENT appearance design and reasonable structure.

6) PLC and touch screen for easy operation; English, Chinese or other languages can be input.

7) Pressing power can be adjustable till 60 tons as different materials and pressing requirement.

8) It is type of Four Column and Three Board with stable performance.

9) Manual operation and automatic operation can be choice; meanwhile, it can count and timing automatically.

10) DR-60D Pressing Machine's middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.

11) Equipped with three kinds of protectors to keep the machine and operator's safety.



Rawhide Bone Pressing Machine with Moulds


Technical Parameter

Model DR-60D
Capacity 1200-1400pcs/hr
Theory Output Max. 60 tons
Working Surface Size Left and Right 510mm
Working Surface Size Front and Back 400mm
Height of Working Table to the Ground 780mm
Max. Stroke of Mobile Mold 350mm
Motor Power 9kw
Weight 2000kg
Dimension 1540 x 1250 x 1900mm

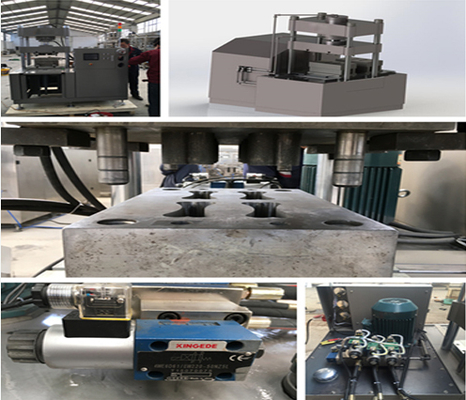

Equipment Shows

Rawhide Bone Pressing Machine with Moulds


Rawhide Bone Pressing Machine with Moulds


Commissioning & After-sales Service



1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.


2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.


3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.


4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.


5. It normally costs 5-7 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.


6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.


Customer visiting


Hydraulic Cowhide Bone Press Machinery 3


Demo Youtube Link



1. Could we visit your factory to check the machine carefully and closely?


Youre more than welcome to visit Darin, will provide machine test running, face to face discussion and turnkey project design solution.



2. Could you afford technician team to guide our installation and commissioning?


Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.



3. How long is your machine's guarantee time?


One year since the machine arrive your factory.



4. If some parts break after warranty, what should we do?


Darin supply full-life after sales service, whenever new parts needed, we will help to supply new ones at reasonable price & in shortest time.



5. If we show our workshop size, can you design layout for the whole line?


Auto CAD layout will be provided as clients workshop size.



6. What is the material of the machine?


Stainless steel, especially parts contacting with materials, conforming to food grade.



Hydraulic Cowhide Bone Press Machinery 4
