Hot Runner System Pet Injection Molding Machine / dog food extrusion machine
Product Details
| Application: | Pet Treats Moulding Machine | Voltage: | 380V, 50HZ |
|---|---|---|---|
| Layout: | AutoCAD As Real Workshop Size | Certification: | CE & ISO9001 |
| Delivery Detail:: | 45days | Spare Parts: | 1 Set |
| Pet Treats Shape: | Lovely Shapes Can Be Made | Material: | Stainless Steel 304 |
| Highlight |
food processing machinery,animal food making machine |
||
Product Description

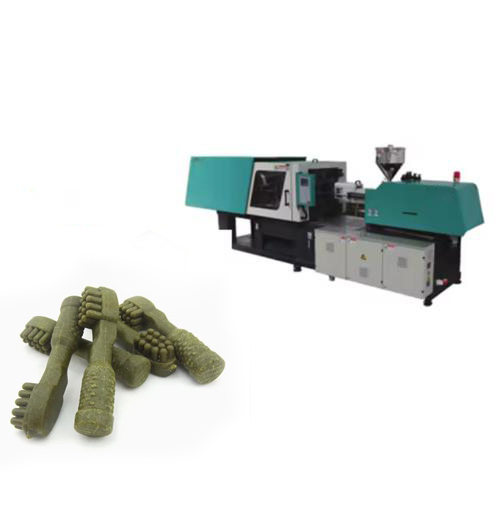

Hot Runner System Pet Injection Molding Machine / dog food extrusion machine
Drumstick Toys for Dog Chewing Processing Machine is special machinery for producing pet snacks. With such machine, various shapes can be made, such as hedgehog, crocodile, dog, bone, pork ears, barrel, etc. The shapes are very lovely and it is a ideal encouragement to dogs and cats while they learn a new action or do well in some exercises and games. Also, we can provide different recipes to meet various market demands.
CE Certificate
CE CERTIFICATE provided, which strictly meet CE standards and EU countries import policy.
ISO 9001 CERTIFICATE provided, which strictly meet ISO 9001 standards.
Technical Parameter
|
Item |
Name of item |
Unit |
MK-268 |
|
Injection Unit |
Screw Diameter |
mm |
55 |
|
Screw L/D Ratio |
Ratio |
20 |
|
|
Injection Volume (Theoretical) |
cm |
640 |
|
|
Injection Weight (PE) |
g |
582 |
|
|
Injection Speed |
g/s |
224 |
|
|
Injection Pressure |
Mpa |
178 |
|
|
Screw Speed |
rpm |
0-180 |
|
|
Clamping Unit |
Clamping Force |
KN |
2500 |
|
Open Stroke |
mm |
545 |
|
|
Space Between Tie-bars |
mm×mm |
590 x 590 |
|
|
Min.Mould Height |
mm |
200 |
|
|
Max.Mould Height |
mm |
610 |
|
|
Ejector stroke |
mm |
160 |
|
|
Ejector Force |
KN |
62 |
|
|
Ejector Rob Quantity |
N |
8 + 4 + 1 |
|
|
Others |
Max. Pump Pressure |
Mpa |
16 |
|
Pump Motor Power |
kw |
15 |
|
|
Heater Power |
kw |
18 |
|
|
Machine Dimension (LxWxH) |
m x m x m |
6.5 x 1.6 x 2.2 |
|
|
Machine Weight |
t |
9 |
|
|
Mould Positioning Ring Diameter |
mm |
160 |
|
|
Material Hopper Volume |
kg |
50 |
|
|
Sphere Radius |
mm |
SR10 |
1). Dental Care Pet Food Equipment comes with user-friendly microprocessor controller with these following features;
2). Dust, oil proof and colorful touch switch control panel.
3). El display of pressure, speed, time and distance for each motion.
4). Shut-down device with 100 presets mold data memory.
5). Equipped with 4 stages injection, 3 stages holding pressure and 3 stages back pressure.
6).PID barrel temperature control: temperature abnormal & electrical wire disconnection alarm.
7). SSR-solid state temperature controller.
8). Screw cold start protection.
9). Abnormal shot detection.
10). Output quantity and packaging quantity preset.
