Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Brand Name: MIKIM
Model Number: DGP40,DGP60,DGP70,DGP80,DGP90,DGP100,DGP120,DGP135,DGP160,DGP200
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: $1500.00 - 9500.00/ Set
Supply Ability: 300 sets per month
Tags

pet food extruder machine

dog food extruder

pet extrusion machine

Product Details

Products: Dog Food, Cat Food, Birds Food，fish Food Voltage: 220V/380V
Screw Material: Special Alloy 38CrMoAlA Capacity: 40-300 Kg/h
Product Shape: Pellets, Kibble After Sales Service: Full Life
Advantage: Easy Connect With Packing Machine Finished Food: Dog Food,cat Food,fish Feed
Converter: ABB,LS,Delta

Product Description

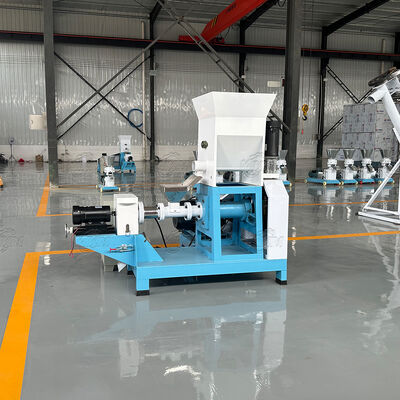

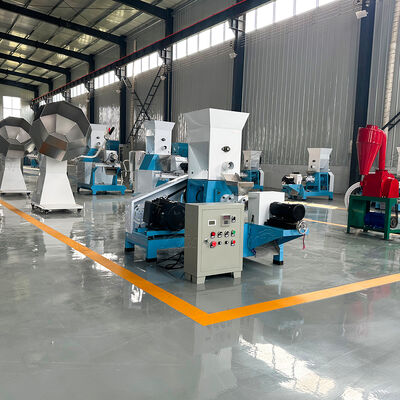

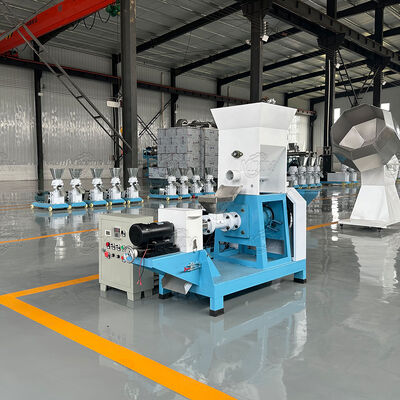

Multifunctional Fish feed cat food Dog Food Pellet Making Extruder

1. Introduction of the Fish feed cat food Dog Food Pellet Making Extruder 2.The extruder is widely used for producing high-grade food pellets for pet like dog,cat, bird
and fish,catfish,shrimps,crat etc.
3.The dog food is nutritionally endowed and delicious for pet. 4.According to your requirement and production scale, the food extruder can be classfied into dry type machine and wet type machine.

Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Model
Main motor (kw)
Feeder (KW)
Cutter(KW)
Capacity (kg/h)
Machine size (m)
Weight(kg)
DGP-40
5.5
0.4
0.4
40-50
1.36*1.3*0.8
320
DGP-60
15
0.4
0.4
120-150
1.36*1.33*0.86
420
DGP-70
18.5
0.4
0.4
200-250
1.36*1.33*0.86
550
DGP-80
22
1.5
0.55
300-350
2.3*1.7*1.4
720
DGP-90
30
1.5
0.55
400-450
2.3*1.7*1.4
1100
DGP-100
37
1.5
1.5
500
2*2.8*1.2
1500
DGP-120
55
1.5
1.5
600-700
2.2*2.9*1.2
1800
DGP-135
75
1.5
2.2
800-900
2.2*3.1*1.37
2000
DGP-160
90
2.2
2.2
1000-1200
2.3*3.15*1.38
2500
DGP-200
132
3
3
1800-2000
2.35*3.45*1.65
3200

floating fish feed making production line Details

1. Animal Poultry Cat Dog Feed Grinder Mixer Production Line Automatic Floating Fish Feed Pellet Making Machine Mill : This is a mini size fish feed production line, which including a corn grinder, a feed mixer, a pellet extruder and a dryer. It is a semi-automatic feed processing line, not including belt conveyor. So that to reduce the budget for this feed production line,suitable for beginner those new to the feed making industry and small to medium scale fish farming

Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Fish Feed Pellet Production Line Application:

This fish feed extruder machine line using for aquaculture feed pellets making. For example: floating fish feed(Catfish,Tropical fish),shrimp feed, Crab feed, dog /cat pet feed,tortoises, frogs and so on. Just change feed machine mould, can make many different shape pellets. also can make different size from 0.4mm-15mm , can feed from baby fish to big fish.
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Floating Fish Feed Pellets Show

Floating fish feeds has very strong water stability (wouldn't apart within 16-32 hours), with little pollution on the water.Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and growth,conducive to scientific management.
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

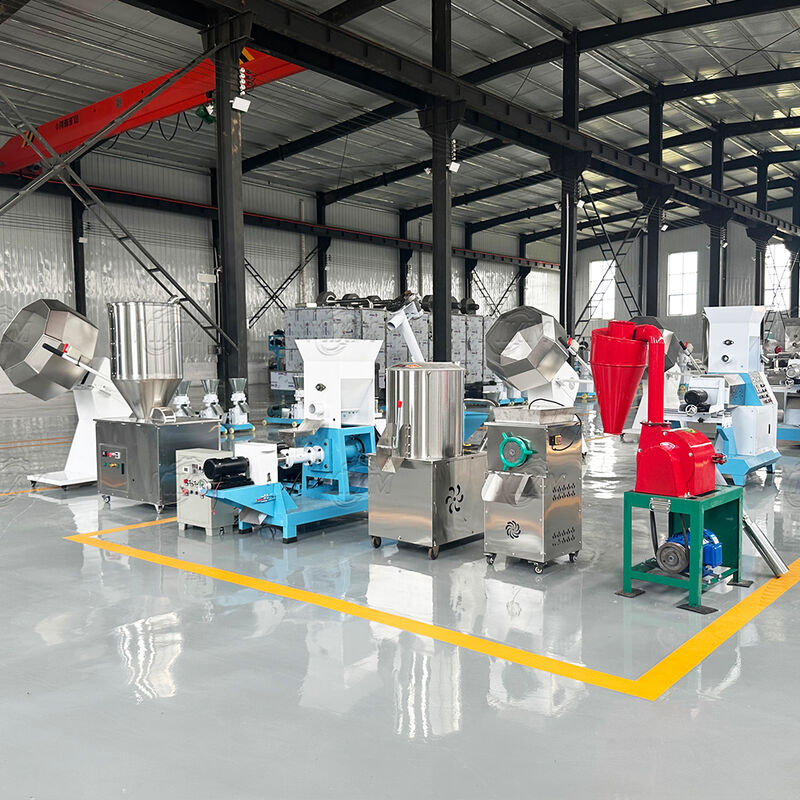

Fish Feed Production Line Solution
Solution 1:

40-300kg/h Aquatic/Pets Fish Feed Small Production Line Farm Use
This small floating fish feed production line including: Crusher + Mixer + Feed pellet extruder + Dryer. Powered range: 16-68kw, Capacity range: 40-300kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable Fish farm or small feed shop

Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Capacity
40-300kg/h
Power
16-68kw
Range of application
Fish farm or small feed shop
Product advantages
Cheap and simple operation,Easy to move,small size,Low
transportation cost,pellet size could be chosen from 1-12mm
Process flow
1.Crusher -2.Mixer -3.Feed pellet extruder -4.Dryer
Size for whole line
5×2×3m
Workers requirements
2 people
Shipment requirements
Wooden case package by LCL (4-7CBM)
Solution 2:

200-800kg/h Commercial use Aquatic/pets feed production line
This medium size fish feed production line including: Crusher + Conveyor + Mixer + Conveyor + Feed pellet extruder+ Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo. Capacity range: 200-800 kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for small/medium Commerical Aquatic /pets feed factory,big farm

Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Capacity
200-800kg/h
Power
86-152kw
Range of application
Good for small/medium commerical Aquatic /pets feed factory,big farm
Product advantages
Stable output,high efficiency,continuous work,labor saving,
can pack directly,pellet size could be chosen from 1-12mm
Process flow
1.Crusher -2.Conveyor -3.Mixer -4. Conveyor -5.Feed pellet extruder
-6.Air conveyor -7.Dryer -8.Air conveyor -9.Seasoning machine
-10.Air conveyor -11.Cooler -12. Air conveyor -13. Finished product silo
Size for whole line
25×3×6m
Workers requirments
2-3 people
Shipment requirments
40ft container
Solution 3:

500-2000kg/h Commercial use Aquatic/pets feed production line
This medium size fish feed production line including: Bucket elevator + Buffer bin + Hammer mill + Bucket elevator + Buffer bin + Mixer + Bucket elevator + Broken arch bin + Wet way feed pellet extruder + Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo. Capacity range: 500-2000kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for medium/big commerical Aquatic /pets feed factory

Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Capacity
500-2000kg/h
Power
94-217kw
Range of application
Good for medium/big commerical Aquatic /pets feed factory
Product advantages
Long working life,make high protein feed,Stable output,high efficiency,
continuous work,labor saving,can pack directly,pellet size could be chosen
from 1-12mm
Process flow
1.Bucket elevator -2.Buffer bin -3.Hammer mill -4.Bucket elevator -5.Buffer bin
-6.Mixer -7.Bucket elevator -8.Broken arch bin -9.Wet way feed pellet extruder
-10.Air conveyor -11.Dryer -12.Air conveyor -13.Seasoning machine -14.Air conveyor
-15.Cooler -16.Air conveyor -17.Finished product silo
Size for whole line
Length: 35m-50m Width: 6m Height: 8m
Workers requirements
3-5 Workers
Shipment requirements
2×40ft container
Solution 4:

3-4ton/h Commercial use Aquatic/pets feed production line
This medium size fish feed production line including: Bucket elevator + Buffer bin + Impeller feeder with iron removal device + Hammer mill with dust collector + Bucket elevator + Buffer bin + Mixer + Bucket elevator + Broken arch bin + Wet way feed pellet extruder + Air conveyor + Dryer + Bucket elevator + Seasoning machine + Bucket elevato + Cooler + Bucket elevator + Finished product silo + Packing and seal machine. Capacity range: 3~4ton/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for large commerical Aquatic /pets feed factory
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Capacity
3-4ton/h
Range of application
Suitable for large commerical Aquatic /pets feed factory
Product advantages
Long working life,make high protein feed , stable output, high efficiency,
continuous work, labor saving, can pack directly,pellet size could be chosen
from 1-12mm
Process flow
1.Bucket elevator -2.Buffer bin -3.Impeller feeder with iron removal device
-4.Hammer mill with dust collector -5.Bucket elevator -6.Buffer bin -7.Mixer
-8.Bucket elevator -9.Broken arch bin -10.Wet way feed pellet extruder
-11.Air conveyor -12.Dryer -13.Bucket elevator -14.Seasoning machine
-15.Bucket elevato -16.Cooler -17.Bucket elevator -18.Finished product silo
-19.Packing and seal machine
Size for whole line
Length: 45m-50m Width: 8m Height: 10m
Workers requirements
4-6 Workers
Shipment requirements
4×40ft container
Shipment requirements
2×40ft container
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Company Profile
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Tianjin Mikim Technique Co.,Ltd.

Mikim Machinery is a high-tech enterprise integrating scientific research, design, man-ufacture,installation and commissioning, andafter-sales service.35 years have been dedicated to the design and production of the feed machinery in-dustry, which has passed many certificates such as CE, ISO, etc.Now we are mainly engaged in two fields: feed pellet machine production ine (ham-mer mill-mixer-conveyor-feed pellet ma.chine-cooling&vibration system-pa.cking andsealing) and feed extruder production line (mixer-twin screw extruder machine-dry-er-drum seasoning machine-cooling towers-packing machine),We produce high quali-ty and low price equipment, exported to all over the world, enjoy a good reputation,and perect after-sales service system can help customers solve all the problems.
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line
Floating Fish Feed Food Processing Extruder Fish Food Pellet Making Machine Production Line

Product Highlights

Produce floating fish feed & pet food pellets (40-300kg/h) with durable alloy screw, premium converters, and easy integration with packing machines. Full life after-sales service.
