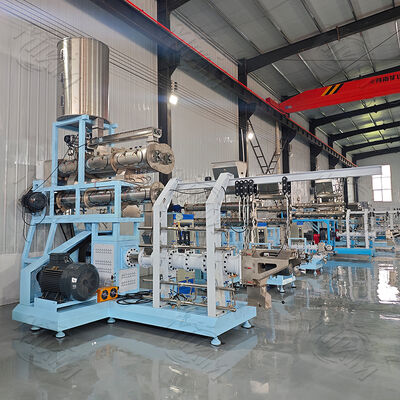

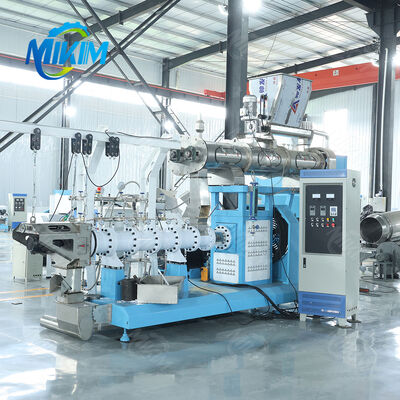

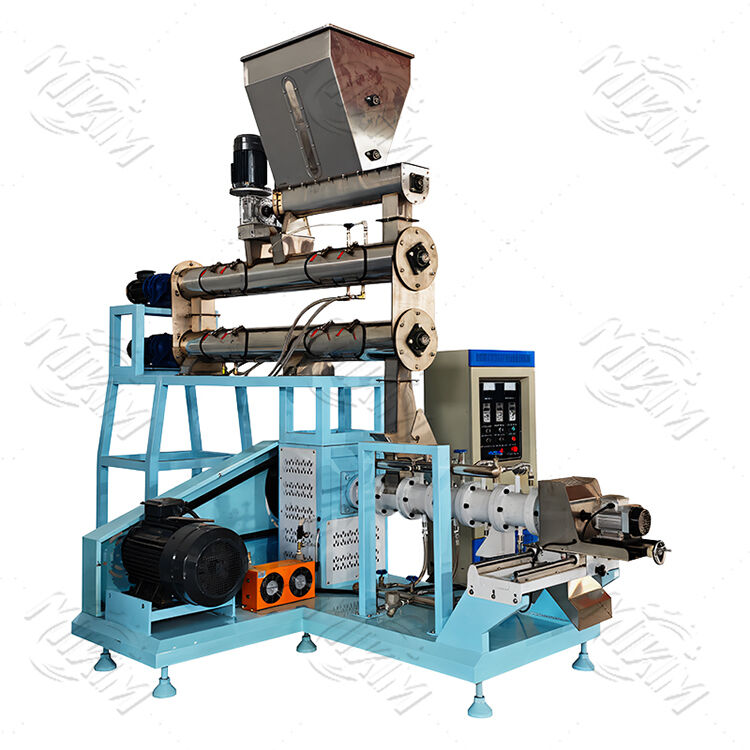

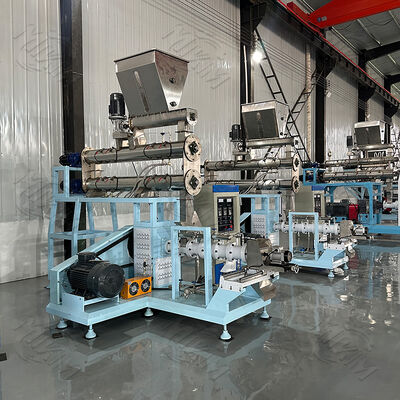

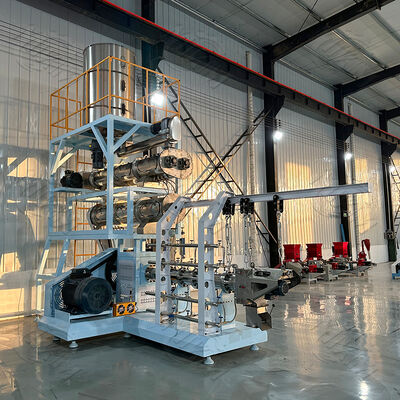

CE Factory Sale Wet Dry Type Floating Fish Feed Mill/shrimp Food Pellets Double Screw Single Screw Extruder Machine
Product Details
| Features: | Continuous & Automatic | Power: | 30-90 KW |
|---|---|---|---|
| Standard: | CE | Space Needed: | 30 X 5 X 3m |
| Processing Type: | Extrusion | Advantage: | Easy Connect With Packing Machine |
| Mold: | 6pcs For Free | Guarantee: | One Year |
| Operation Manual: | English Version | Controlsystem: | PLC Control |
| Food Material: | Meat,beans,vegetable And So On | Key Words: | Meat Strip Making Machine |
Product Description
- All fish food equipment made of stainless steel
- Fully continuous and automatic production line
- Basic fish food formula provided according to requirements
- Various final product shapes and sizes by changing mould
- Different size moulds supplied free of charge
- Optional packing machine for complete production line
Our engineers design layout drawings according to your factory dimensions for optimal fish feed machine placement.
| Model | Capacity (t/h) | Main Power | Feeding Power | Screw Diameter | Cutting Power | Conditioner Power | Weight |
|---|---|---|---|---|---|---|---|
| DSP85 | 0.35-0.4 | 22kw | 1.1kw | 80 | 0.75kw | 1.5kw | 1000kg |
| DSP90 | 0.5-0.6 | 30kw | 1.1kw | 90 | 1.1kw | 2.2kw | 2000kg |
| DSP100 | 0.6-0.7 | 37kw | 1.1kw | 100 | 1.1kw | 3kw | 2100kg |
| DSP120 | 0.7-0.8 | 55kw | 1.1kw | 120 | 1.5kw | 3kw | 2200kg |
| DSP135 | 1.0-1.5 | 75kw | 1.5kw | 135 | 2.2kw | 5.5kw | 3200kg |
| DSP145 | 2.0-3.0 | 90kw | 2.2kw | 145 | 2.2kw | 7.5kw | 4000kg |
| DSP160 | 3.0-4.0 | 110kw | 2.2kw | 160 | 3kw | 11kw | 4500kg |
| DSP175 | 4.0-5.0 | 132kw | 3.0kw | 175 | 3kw | 15kw | 5000kg |
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran, wheat bran, fish powder, bone powder, etc.
Fish feed pellet with customized colors, floating and sinking types, customized lengths, and diameters from 0.2mm to 20mm
Mixer → Screw Conveyor → Twin Screw Extruder → Air Conveyor → Dryer → Hoister → Flavoring Drum and Oil Sprayer → Cooling Machine → Packing Machine
Usage: Mix raw materials evenly with fast speed and no leakage
Type: Vertical and horizontal type
Motor: 3kw, 4kw, 7.5kw etc.
Capacity: 20kg/time to 500kg/time
Material: Stainless steel, carbon steel
Usage: Extrude raw materials into required shape and size using mould
Model: DSE65, 70, 75, 90, 95, 120, 135
Motor: 22kw to 110kw
Capacity: 100kg/h to 10 ton/h
Material: 38CrMoAl stainless steel screw, carbon steel
Usage: Dry expanded food through "S" passage to increase shelf life
Type: Electrical, steam, gas fired, diesel fired heating
Model: KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity: 100kg/h to 10 ton/h
Material: Stainless steel, carbon steel
Usage: Mix oil and flavors on fish feed surface
Type: Single and double flavoring drum
Motor: 0.75kw
Capacity: 100kg/h to 10 ton/h
Material: Stainless steel
Usage: Pack fish feed with required weight
Type: Automatic
Process: Manual bag placing → Automatic filling → Automatic weighing → Automatic bag conveyor → Automatic bag sewing or heat sealing
Weight Range: 1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material: Stainless steel, carbon steel
- Factory layout design according to your factory size
- Basic formula provision
- Pre-shipment machine inspection
- Overseas installation and commissioning
- Technical training for installation, operation, and maintenance
- Comprehensive technical support and maintenance guidance
- English version manuals for installation, operation, service, and maintenance
Established in 1989, Tianjin Mikim is a professional manufacturer of extrusion puffing equipment. Our company has gathered industry experts with rich experience and remains committed to research and development of extrusion puffing equipment. We provide comprehensive intelligent equipment solutions to help customers achieve goals of reducing energy consumption, improving quality, and enhancing efficiency.
We specialize in commercial efficiency of extrusion puffing machinery, including twin-screw puffers, single-screw puffers, and other puffing equipment. Our focus extends to aquatic and pet food puffed feed production line research and development. Our core competitiveness lies in delivering high efficiency, superior quality, and outstanding performance through excellent puffing technology.
Product Highlights
CE-certified floating fish feed extruder with PLC control for continuous, automatic production. Offers custom pellet shapes (0.2-20mm), includes 6 free molds, and integrates easily with packaging systems. One-year warranty with English manuals.
