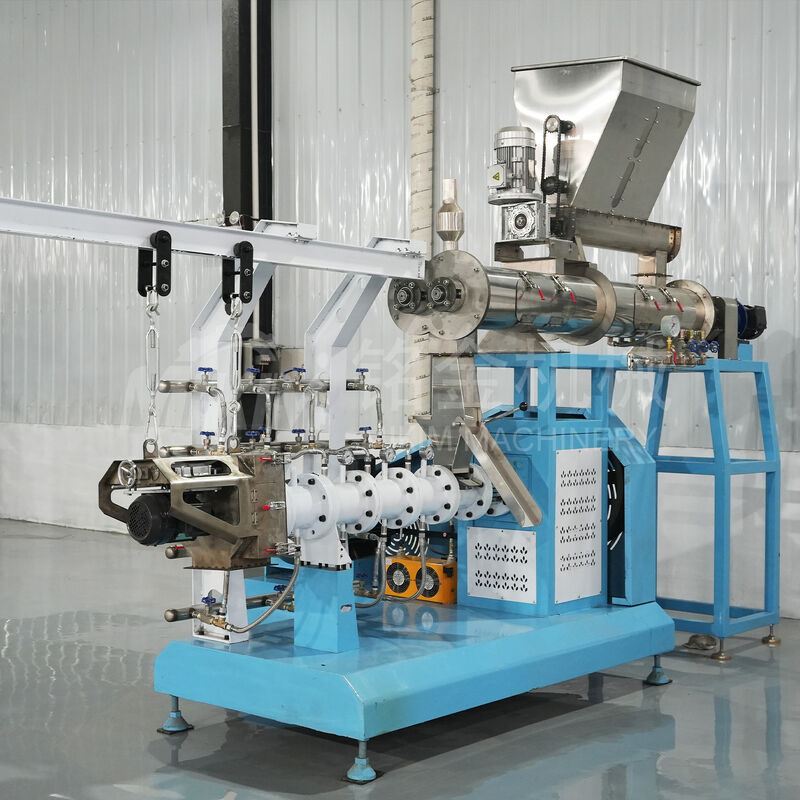

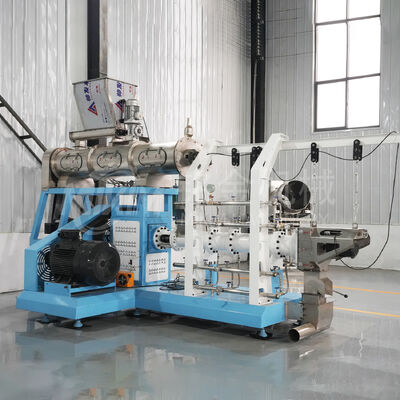

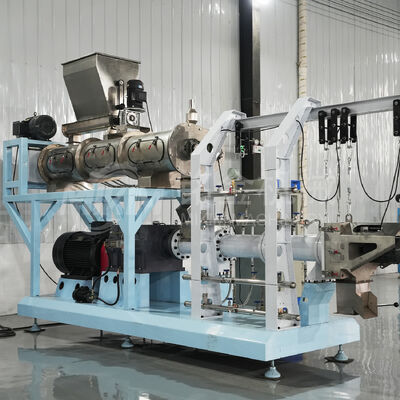

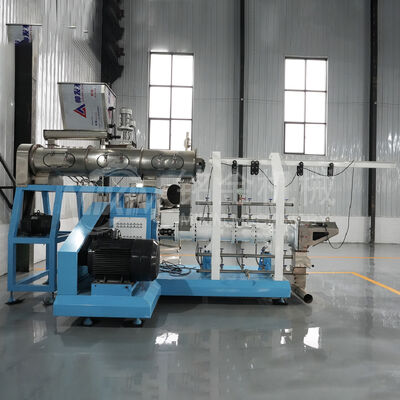

Twin Screw Extruder Fish Feed Pellet Machine with 70-110 mm Screw Diameter Continuous & Automatic Operation 380V/50Hz
Product Details
| Features: | Continuous & Automatic | Voltage: | 380V/50Hz |
|---|---|---|---|
| Screwdiameter: | 70-110 Mm | Condition: | New |
| Oven: | Multilayer Oven:3, 5, 7 | Voltageacity: | 380V50Hz |
| Machine Name: | Dry Dog Food Making Machine | Moulds: | Various Shapes Can Be Choosen |
| Products: | Dog Food, Cat Food, Birds Food | ||
| Highlight |
70-110 mm Screw Diameter Twin Screw Extruder,Continuous & Automatic Fish Feed Pellet Machine,380V/50Hz Pet Food Extruder |
||
Product Description
Twin Screw Fish Feed & Pet Food Pellet Manufacturing Machine
Main Components of a Wet-Type Twin-Screw Floating Fish Feed Extruder
1. Feeding and Pre-conditioning System
-
Feeding Hopper & Drive Motor: Raw materials are loaded into the stainless steel feeding hopper, which is equipped with a dedicated feeder motor to ensure a consistent and controllable flow of ingredients into the system.
-
Preconditioner (Modulator): Before entering the extrusion barrel, materials pass through the preconditioner, where they are mixed with steam and water to achieve the desired hydration and thermal softening.
2. Drive and Transmission System
-
Main Drive Motor: The primary power source that provides the high torque necessary for the twin-screw rotation.
-
Gearbox (Transmission): A heavy-duty reduction gearbox translates the motor's power into the screws, ensuring stable operation and mechanical synchronization of the twin-screw assembly.
3. Extrusion and Heating Assembly
-
Extrusion Barrel (Puffing Heating Chamber): The core section where high-pressure cooking and mechanical shearing occur. It is divided into multiple temperature-controlled zones.
-
Steam Injection & Distribution: A complex steam pipeline network, managed by a steam distribution manifold (valves), injects thermal energy directly into the process.
-
Liquid Control: Integrated flow meters (rotameters) monitor and regulate the precise intake of water or other liquid additives.
4. Cutting and Discharge Module
-
Pelletizing Cutter: Located at the die head, the cutter motor drives high-speed blades to slice the extrudate into uniform pellets.
-
Adjustment Handwheel: Allows operators to perform fine-tuned calibrations of the cutter's position relative to the die plate for optimal product shape.
5. Maintenance and Support Structures
-
Cantilever Slide Rail: A heavy-duty support rail (hoist) is integrated into the frame, facilitating the easy disassembly and sliding of the barrel or screw segments during cleaning and maintenance.
-
Elevated Platform: A sturdy, powder-coated steel frame with safety railings and an access ladder provides a safe working environment for monitoring the feeding and conditioning stages.
Key Advantages
- High automation degree - complete production line requires only 2-3 operators
- Wide range of raw material compatibility - processes cereal flour and fresh meat/bone meal
- Multiple fish feed sizes available by simply changing molds
- Intelligent electric heating system improves feed expansion rate
- High temperature and pressure cooking process eliminates salmonella and bacterial infections while enhancing digestibility
- Wet type machines utilize boiler-generated steam for pre-conditioning and ripening raw materials
Production Capabilities
Application Range
Floating Fish Feed Characteristics
Twin Screw Sinking Fish Feed Making Machine Models
| Model (Electric) | Capacity (kg/h) | Main Power | Cutting Blade Power | Cutting Power | Modulated Power |
|---|---|---|---|---|---|
| 65 | 250 - 300 | 22KW | 1.5KW | 1.5KW | 3KW |
| 70 | 500 - 600 | 45KW | 1.5KW | 1.5KW | 3KW |
| 75 | 800 - 1000 | 55KW | 1.5KW | 1.5KW | 3KW |
| 85 | 1200 - 1500 | 90KW | 3KW | 2.2KW | 5.5KW |
| 95 | 2000 - 2500 | 110KW | 3KW | 3KW | 11KW |
| 120 | 3000 - 4000 | 160KW | 5.5KW | 3KW | 15 + 7.5KW |
| 136 | 5000 - 6000 | 200KW | 7.5KW | 5.5KW | 22 + 7.5KW |
Mikim Machinery is a high-tech enterprise integrating scientific research, design, manufacture, installation, commissioning, and comprehensive after-sales service. With 35 years of experience in feed machinery design and production, we hold CE and ISO certifications. Our expertise spans two main areas: feed pellet machine production lines and feed extruder production lines. We deliver high-quality, competitively priced equipment exported worldwide, supported by extensive technical expertise and customer service.
