500kg/h fish feed pellet machine fish feed pelleting machine floating fish feed pellet machine wet pet food production line for low price
Product Details:
| Place of Origin: | China |
| Brand Name: | MIKIM |
| Certification: | CE |
| Model Number: | DGP-40,DGP-60,DGP-70,DGP-85,DGP-90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | $3500.00 - 55000.00/ Set |
| Packaging Details: | packed by wooden export package or loading by container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
|
Detail Information |
|||
| Moulds: | Various Shapes Can Be Choosen | Advantage: | Easy Connect With Packing Machine |
|---|---|---|---|
| Controlsystem: | PLC Control | Heatiang Source: | Electricity |
| Highlight: | 500kg/h fish feed pellet machine,floating fish feed pelleting machine,wet pet food production line |
||
Product Description

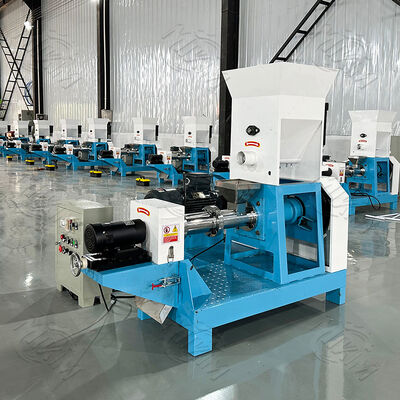

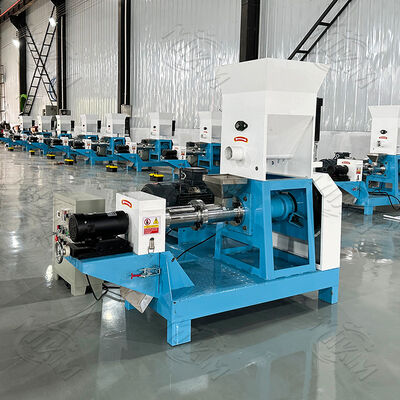

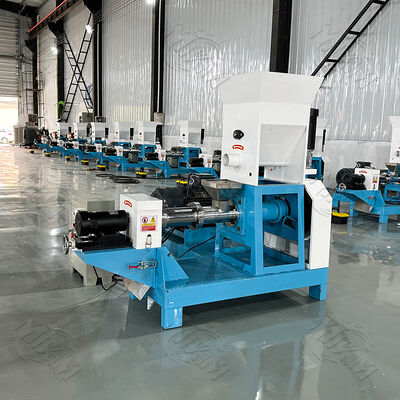

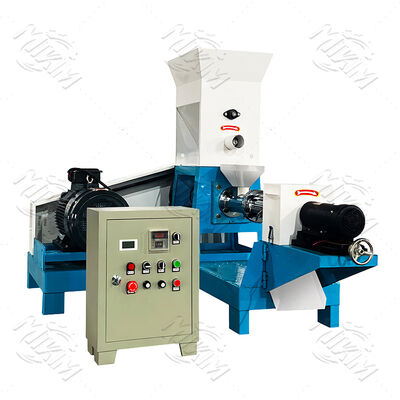

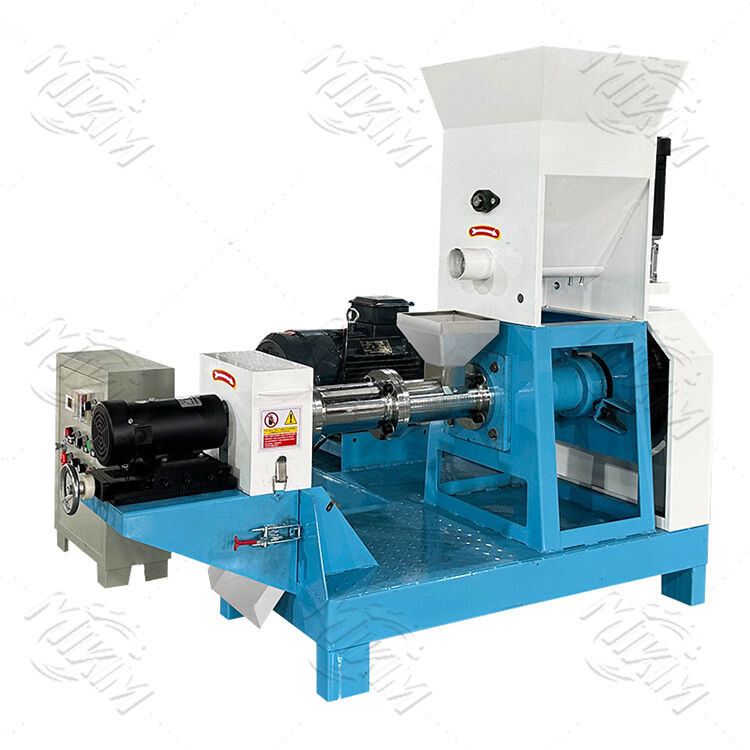

Our portable fish feed pelleting machine, also known as floating fish feed machine, is widely used for producing high-grade aquatic feed pellets for fish, catfish, shrimp, crab, lobsters, and other aquatic species. We offer two types of fish feed extruders: dry type and wet type models. The complete process includes feeding materials, extruding, forming, filling and cutting, drying, oil spraying, and packing to produce both floating and sinking fish feed pellets automatically. You can adjust the extrusion degree to influence floating time according to your specific requirements.
Grinding → Mixing → Extruding → Drying → Flavoring → Cooling → Packaging
Our engineering team can design customized layout drawings according to your factory dimensions to optimize the fish feed machine installation.
| Model | DGP-40 | DGP-60 | DGP-70 | DGP-85 | DGP-90 |
|---|---|---|---|---|---|
| Capacity (kg/h) | 40-50 | 120-150 | 200-250 | 300-350 | 400-450 |
| Main Motor (HP) | 12 | 25 | 30 | 35 | 50 |
| Feeder Motor (kW) | 0.4 | 0.4 | 0.4 | 1.5 | 1.5 |
| Cutter Motor (kW) | 0.4 | 0.4 | 0.4 | 0.55 | 0.55 |
| Screw Diameter (mm) | φ40 | φ60 | φ70 | φ80 | φ90 |
| Machine Size (m) | 1.4×1.25×1.2 | 1.47×1.12×1.25 | 2.05×1.4×1.3 | 2.15×1.5×1.3 | 2.2×2×1.35 |
| Weight (kg) | 360 | 560 | 740 | 850 | 1200 |
- Advanced Anti-Clogging Design: Thoughtfully engineered to handle high-fiber materials like wheat bran and alfalfa meal. The special spiral pattern on the screw "twirls" material forward to prevent inlet pile-up, while the hopper's vibration device breaks up damp clumps to prevent outlet blockage. Reliable operation even during rainy conditions.
- Flexible Production Capacity: Suitable for both small ponds (10 mu/1.65 acres) and large aquaculture bases (thousands of mu/165 acres). Small models produce 300 jin (150 catties) per hour for daily small pond needs, while large models produce 5 tons per hour for extensive operations. Large feed inlet accommodates coarse raw materials without repeated crushing, saving pre-treatment time and eliminating overtime during peak seasons.
- Customized equipment selection based on client requirements
- Professional consultation on market, machinery, and technical aspects
- Factory layout drawing services
- Assistance with hotel reservations
- Order production progress updates
- Shipping logistics consulting (sea, air, land, express)
