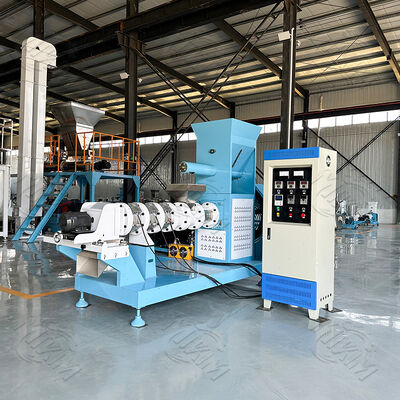

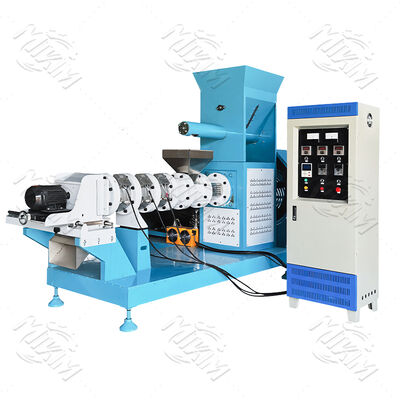

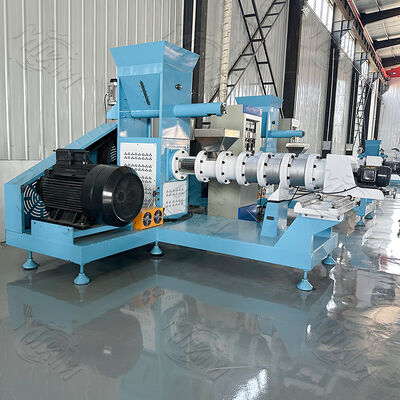

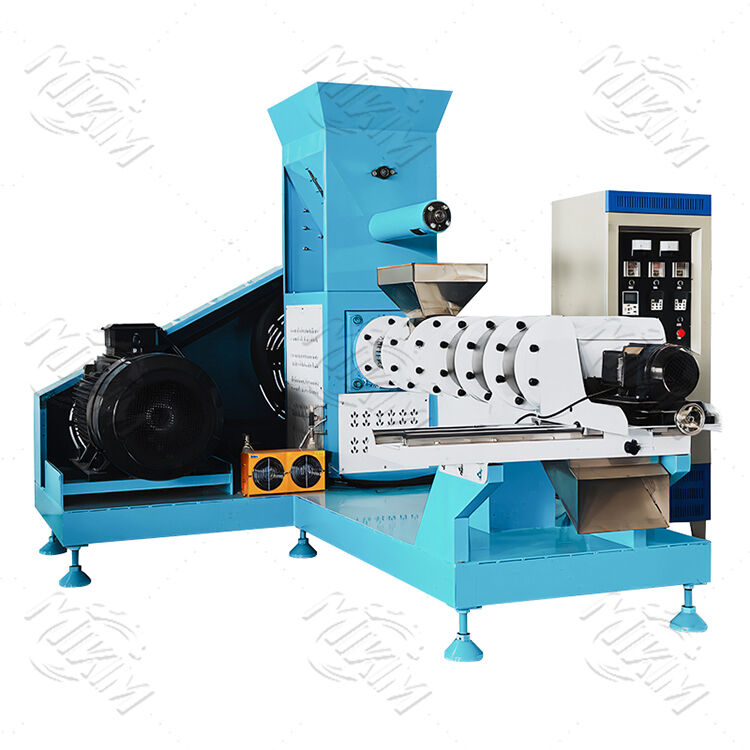

pet food pellet production line Floating Fish Feed Pellet Mill single Screw Extruder for Fish Food
Product Details
| Moulds: | Various Shapes Can Be Choosen | Food Material: | Meat,beans,vegetable And So On |
|---|---|---|---|
| Spare Parts: | 1 Set | Operation: | Simple Automatic Operation |
| Motors: | Chinese Brands, Siemens, ABB | Processing Type: | Extrusion |
| Inveter: | ABB | ||
| Highlight |
floating fish feed pellet mill,single screw extruder for fish food,pet food pellet production line |
||
Product Description
- Applicable for crushing raw materials in pet feed, aquatic feed, and food industry processing
- Adjustable hammer blade and screen mesh gap for coarse and fine grinding
- Unique hammer blade installation with high-precision dynamic balance for stable operation and low noise
- Axial air inlet system and water drop-shaped grinding chamber increase efficiency by over 30%
- Cemented carbide technology extends hammer blade service life
- Magnetic separation feeder with adjustable speed for feeding, air supplement, and iron removal
- Thoroughly mixes different powdered raw materials with short discharge time and no residue
- Large bottom door design for easy maintenance and replacement
- Rubber sealing ring prevents leakage
- Top spray system for easy liquid addition
- High mixing uniformity (CV ≤ 5%) with mixing time of 30-120 seconds per batch
- Material: Carbon steel with Siemens/WEG motor and SKF bearings
- Screw material: Special wear-resistant alloy; Barrel material: 45# steel
- Dual-shaft differential speed conditioner ensures thorough, uniform conditioning
- Stainless steel conditioner construction for extended service life
- Forced lubrication system protects bearings and transmission components
- Barrel temperature display for easy adjustment
- Energy-efficient design reduces consumption and production costs
- Four-layer mesh belt design minimizes material damage
- Multi-layer hot air flow structure for enhanced drying performance
- Insulated chamber with 95% hot air circulation efficiency
- Adjustable drying temperature and material residence time
- Material contact parts: Stainless steel; Outer chamber: Insulating material
- Optimized double helix rotor design for uniform material distribution
- No material retention, breakage, or dead zones during mixing
- Fat and oil addition capability improves extruder performance
- Enhanced feed absorption and reduced water pollution
- Material: Stainless steel cylinder with carbon steel frame
| Parameter | DGP-100 | DGP-120 | DGP-135 | DGP-160 | DGP-200 |
|---|---|---|---|---|---|
| Capacity (kg/h) | 500 | 600-700 | 800-900 | 1000-1200 | 1800-2000 |
| Main Motor (kw) | 37 | 55 | 75 | 90 | 132 |
| Feeder Motor (kw) | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| Cutter Motor (kw) | 1.5 | 1.5 | 2.2 | 2.2 | 3 |
| Screw Diameter (mm) | φ100 | φ120 | φ135 | φ160 | φ200 |
| Machine Size (m) | 2×2.8×1.2 | 2.2×2.9×1.2 | 2.2×3.1×1.37 | 2.3×3.15×1.38 | 2.35×3.45×1.65 |
| Weight (kg) | 1500 | 1800 | 2000 | 2500 | 3200 |
- Detailed introduction of wet-type advanced design fish food extruder based on client capacity requirements
- Comprehensive information sharing including detailed pictures, videos, and technical data
- Custom design of floating fish food extruding lines
- Assistance with suitable floating fish feed formulations
- Comprehensive instruction manuals and operational videos
Product Highlights

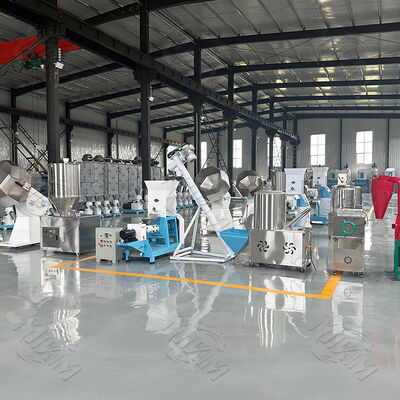

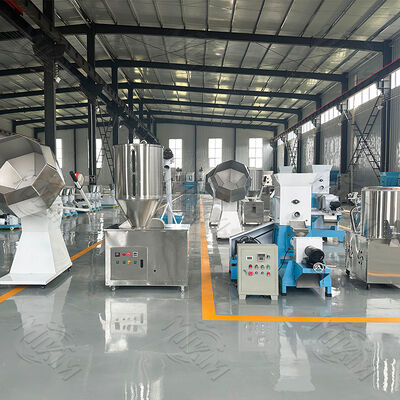

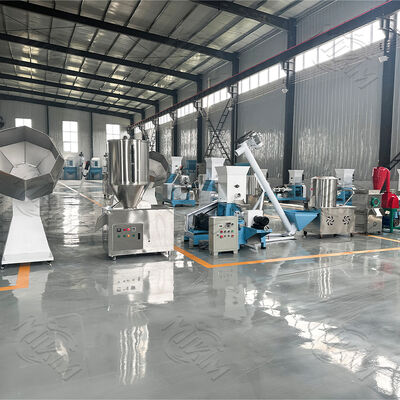

Floating Fish Feed Pellet Mill Single Screw Extruder for Fish Food Complete production line flow: Grinding → Mixing → Extruding → Drying → Flavoring → Cooling → Packaging Custom layout designs available according to your factory dimensions for pet food and fish feed production. Main Equipment and ...
