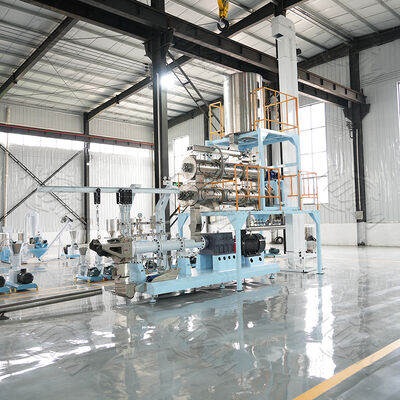

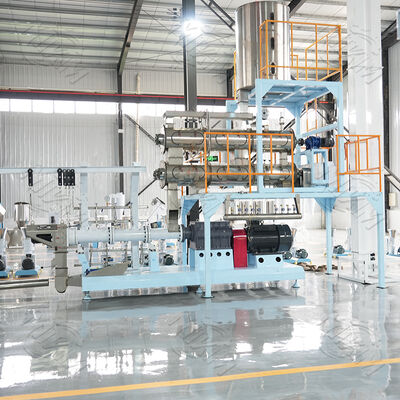

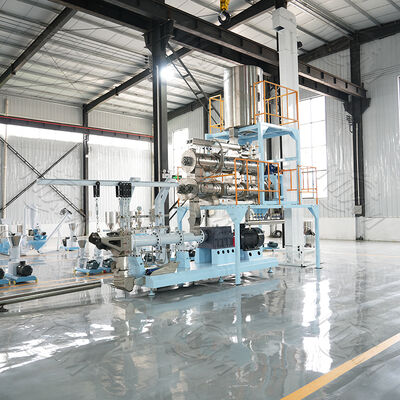

0.5mm to 15mm low price Fish Feed Twin Screw Type Floating Feed Pellet Extruder
Product Details
| Heatiang Source: | Electricity | Application: | Pet Food Production |
|---|---|---|---|
| The Color: | Silver | Control System: | PLC Touch Screen |
| Products: | Dog Food, Cat Food, Birds Food | ||
| Highlight |
fish feed pellet extruder machine,twin screw floating feed extruder,low price pet food extruder |
||
Product Description
Twin Screw Extruder Introduction
Twin screw extruder is developed on the basis of single screw extruder. It has two screws of equal length placed inside the same barrel. It is born for stronger adaptability, higher capacity and better operative control. It is generally used for aquatic products and pet feed production with high added value like salmon, soft-shelled turtle and young fish feed. The high market price of these feed pellets can completely return the primary investment.
Chinese twin screw technology is quite mature. Most of domestic feed factories have used this machine to meet the latest trend. MIKIM twin screw extruder also meets the requirements of International market.
- Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
- The gearbox can stand strong torque and thrust up to 400hp.
- Circled tunnel design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.
- Screw is made of special anti-wear alloy with L/D ratio up to 19.5:1 that assures smoothly production for all kinds of sinking/floating feed.
- It can deal with different formulation. It can produce pellet with die diameter from 0.5 mm to 10 mm.
- Fast replacing mechanism for die and screw and on-line adjustment for cutter.
Single Screw Extruder:
- Belt transmission, low efficiency, difficult operation control
- Relatively lower price, lower capacity, poor homogeneity
Double Screw Extruder:
- Gear driving, high efficiency, flexible operation control.
- Lower energy consumption and longer service life.
- Wide adaptability of raw materials: high viscosity, low viscosity, high moisture, etc.
- Fewer restrictions on the particle size of the raw materials: fine powders, coarse aggregates, etc.
- Better mixing averages, higher particle uniformity.
- Better ripening degree, usually reaching 95%.
- Higher yields with same power.
- Self cleaning and easy to maintain.
- Wider diversity and adaptability of the final products.
| Model (Electric) | Capacity (kg/h) | Motor Power | Cutting Blade Power | Cutting Power |
|---|---|---|---|---|
| 65 | 150-200 | 22KW | 1.5KW | 2.2KW |
| 70 | 250-300 | 30KW | 1.5KW | 2.2KW |
| 75 | 300-350 | 37KW | 1.5KW | 2.2KW |
| 85 | 600-800 | 75KW | 2.2KW | 3.0KW |
- We will give detailed introduction of the Wet type advanced design Fish food extruder making machine according to the client capacity requirement.
- Share any information about the Fish food extruder making machine that the clients need, like detailed pictures, video, etc.
- Design floating fish food extruding line for client.
- Help the clients to do suitable floating fish feed formulation.
- Give detailed instruction manual and video to help the client operate the Fish food extruder making machine.
Product Highlights
