200-300kg/hr Corn Flakes Production Line / Maize Flakes Making Machine With CE
Product Details:
Place of Origin: | China |
Brand Name: | Darin |
Certification: | ISO CE |
Model Number: | DR-70 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotioable |
Packaging Details: | standard export wooden case |
Delivery Time: | 35-45 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 30 sets/year |
Detail Information |
|||
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Voltage: | 380V/50HZ,Customized |
---|---|---|---|
Warranty: | 1 Year | Application: | Corn Flakes,breakfast Cereal Making,Chips,snacks,Cereal And Corn Flakes Production Line |
Power(w): | 90KW | Product Name: | Corn Flakes Production Line/Corn Flakes Making Machine With CE |
High Light: | 300kg/Hr Corn Flakes Production Line,CE Corn Flakes Production Line,300kg/Hr Maize Flakes Making Machine |
Product Description
Product Description
Introduction of Corn Flakes Production Line/Corn Flakes Making Machine With CE
Corn flakes is a kind of crispy food which is processed by twin- screw extruder, add cocoa , sugar, honey and maltose as instant breakfast food for people Nowadays. Corn flakes processing machine Using corn grits (Powder), wheat flour, rice flour, oat meal, other grain meals as basic materials. Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel , flower and heart etc.
Machine Features
Main Features of corn puff snack bar food extruder machine snack food processing equipment machine
1. Easy to change mold,then can get more different shapes. 2. Made of high quality stainless steel,more safe and easy to clean. 3. Working stable,high efficiency. 4. Will change the voltage according customer’s request. 5. The main motor adopts the high quality y series two phase, three phase motor, ensures the power to be strong. 6. The food produced by the cornflake extruder has unique shape, various tastes, scientific nutrition ratio and reasonable structure design of the equipment. 7. The screw is special material, the equipment has the fast self-cleaning function, the machine stability is high, the operation is simple and easy to learn. 8. Accurate parameter control to ensure that the product has the same shape and taste
Specification
Model
|
DR-65
|
DR-70
|
Capacity
|
120-150kg/hr
|
200-300kg/hr
|
Power
|
120kw
|
180kw
|
Dimension
|
45 *5 * 3m
|
56 *5 * 3m
|
Workers Needed
|
2-3
|
3-4
|
Installation Instructions

Corn flakes line equipment list
1) Mixer
2) Screw Conveyor
3) Extruder
4) Vibrating feeder
4) Vibrating feeder
5) Drum-type dryer
6) Air Conveyor

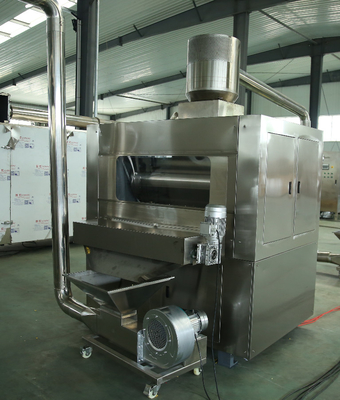

7) Flaking machine
7) Flaking machine
8)Air Conveyor
9)Dryer
10)Hoister
10)Hoister
11) Vibrating feeder
12)High-temperature inflated oven
12)High-temperature inflated oven
13) Seasoning system
14) Multilayer Oven
14) Multilayer Oven
15) Coolingmachine
16) Packing Machine

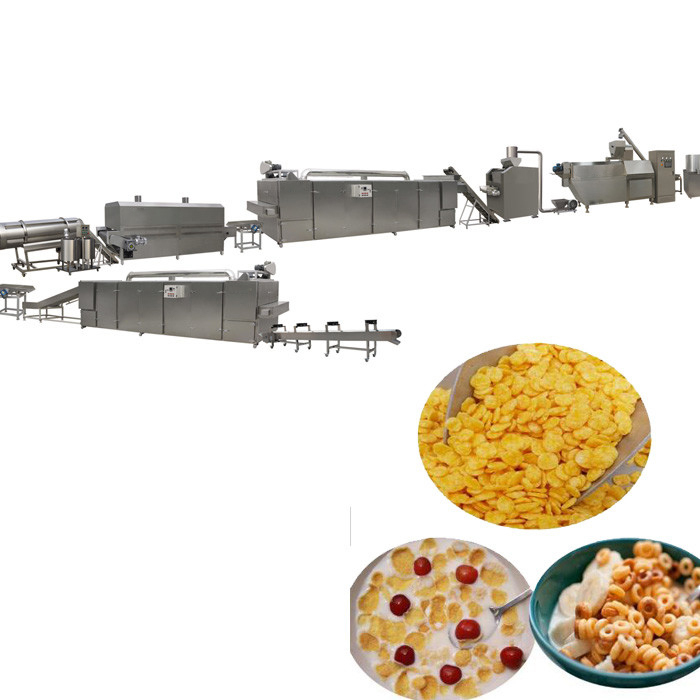

Flow chart of puff snacks machine:
Mixer-screw conveyor-twin screw extruder-vibrating feeder-drum type dryer-air conveyor- flaking machine-air
conveyor-dryer-hoister-vibrating feeder-high temperature inflated oven-flavoring line-dryer-cooling machine

Sample pictures:
