Oats Fruit Nuts Cereal Bar Cutting Line 300-400 Kg/Hr
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DRC-75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 35-45 working days |
| Payment Terms: | T/T, L/C, D/P or Western Union |
| Supply Ability: | 99 sets per year |
|
Detail Information |
|||
| Name: | Oats/ Fruit/ Nuts Cereal Bar Cutting Line | Material: | SUS304 |
|---|---|---|---|
| Condition: | Continuous & Automatic | Manual: | English Version |
| After-sales Service: | Full Life | Layout: | AutoCAD Format According To Client’s Workshop |
| High Light: | Nuts Cereal Bar Cutting Line,Oats Cereal Bar Cutting Line,Fruit Cereal Bar Cutting Line |
||
Product Description
Oats/ fruit/ nuts cereal bar cutting line hot selling in 2022
Introduction

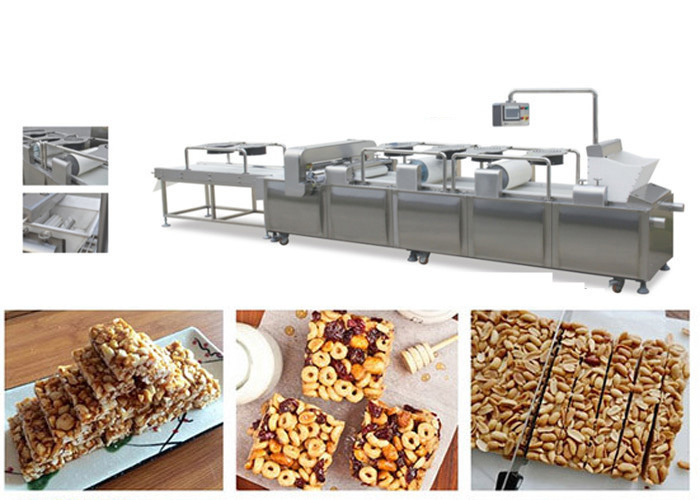

DRC-75 Muesli Bar / Granola Bar Cutting Machine can be used for producing all kinds of muesli bar and granola bar.
Ø Combined procedures into one: Filling materials - Pressing shape - Cooling materials - Cutting muesli bar - Conveying & cooling muesli bar.
Ø Material hopper is made by food grade HMWHDPE to avoid the sticking materials, also has heater to keep temperature. The filling blade is made by PTFE, and could evenly and stably fill the materials to conveyor belt, without materials wastage.
Ø Controlled by Siemens PLC and touch screen with friendly interface. The staff could 180°rotate the touch screen, flexible and convenient. The controller languages can be Chinese, English, French, Arabic, Spanish, Russian, etc.
Ø Equipped with two sets of pressing roller, made by food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. The roller can be accurately adjusted to meet the height of different thickness product requirement.
Ø Equipped with four sets of fans above the conveyor to cool the materials quickly.
Ø Vertical cutter uses cutter groove design to ensure the materials can be 100% cut. After cutting, muesli bar has no sticking and separate automatically.
Ø Horizontal cutter could continually cut, no stop. Thus the capacity can be increased from 300kg/hr to 500kg/hr.
Ø The connection of forming part and conveyor part use the gear drive, it is easy installation and disassemble.
ØConveyor belt is made by PTFE belt.
Technical Parameters
| Output | Installed Capacity | Voltage / Frequency | Dimension | Workers Required |
| 300-400kg/hr | 9kw | 380V 50Hz | 8 x 4 x 2m | 2-3workers |
