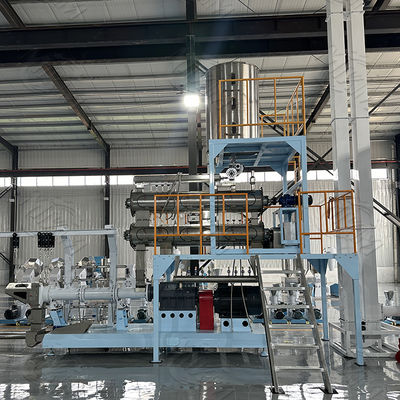

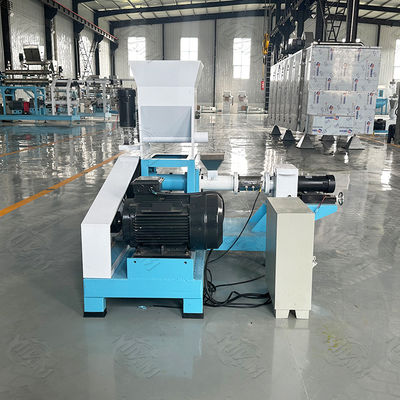

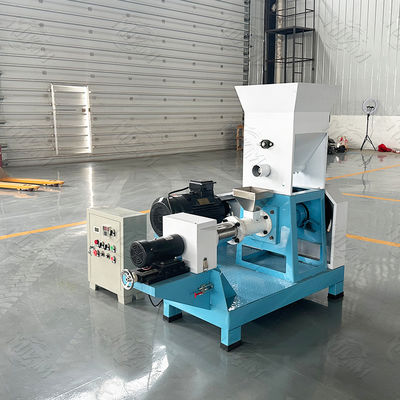

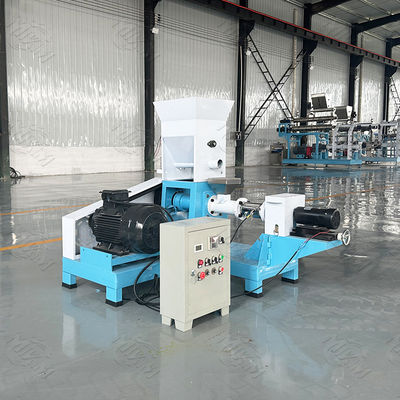

500kg Per Hour Dog Food Extruder Making Machine Stainless Steel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | DARIN |
| Certification: | ISO 9001 CE |
| Model Number: | DR65/DR70/DR85/DR90/DR95 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD3000-USD300000 |
| Packaging Details: | wooden pacakges |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 99 sets per year |
|
Detail Information |
|||
| Motor: | Siemens Brand | Material: | Stainless Steel |
|---|---|---|---|
| PLC: | Siemens Brand | Gurantee: | 1year |
| Service: | On Line, Video Call, | ||
| High Light: | 500kg Per Hour Dog Food Extruder,500kg Per Hour Dog Food Making Machine,Stainless Steel Dog Food Extruder |
||
Product Description

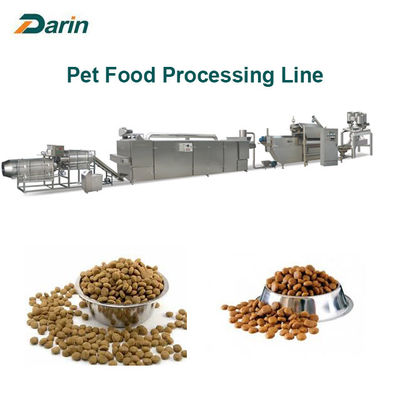

500kg/hr Dog Food Processing Line
Dog Food Processing Line serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed of sectional modules for the following functions: transportation, mixing, de-gassing, cooking, and forming.
1. A wide range of pet food with different formulations can be obtained for dogs, cats, birds, fish, rabbits, turtle, etc.;
2. The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost;
3. Automatic dosing unit for utilization with any type of flours and starches (flour size should be 60-80mesh);
4. The screws are made by 38CrMoAIA with the hardness of 55hrc, which is hard and strong;
5. Barrel is divided into 3 parts and made of allaying steel with a hardness of 55hrc. Outside the barrel, there have ceramics heating elements with longer service life.
6. Auto-temperature control system makes the temperature control more direct and the parameter more precise;
7. The forced lubrication system, so that it can guarantee the equipment transmission life longer;
8. Self-cleaning function: after each shift, it can be cleaned without disassembling;
9. The level of protection is IP44, and the wiring is 10mm2 waterproof copper core wire with 3 phases and 4 wires, including ground protection.
Member of APPA,USA
Deputy President Unit of SDPIA
A High-Tech Enterprise of Shandong Province 2019
Supplier of Kellogg’s of USA,Bill & Melinda Gates Foundation, Wanpi, a public corp of China
