Mini Granola Bar Cereal Bar Making Machine Stainless Steel

Mini Granola Bar Cereal Bar Making Machine Stainless Steel

Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: Mini

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD
Packaging Details: export wooden cases
Delivery Time: 45 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 99 sets per year
Get Best Price Contact Now

Detail Information

Name: Energy Bar Machine Material: Stainless Steel
Recipe: Fee Of Charge After-sales Service: Full Life
Layout: Auto CAD Format According To Client's Workshop Output: 60-80pcs/min
High Light:

Mini Granola Bar Forming Machine

,

80pcs/min Cereal Bar Making Machine

,

Cereal Bar Making Machine Stainless Steel

Product Description

Mini Granola Bar Forming Machine Cereal Bar Making Machine Energy Bar Machine



Introduction



Mini Granola Bar Former can be used for producing rectangular shape cereal bar.

  • The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.
  • The useful width of cereal bar cutting machine is 170mm.
  • Controlled by PLC with touch screen with friendly interface.
  • Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.

Raw Material
A wide range of ingredients can be used as raw material, like oats, pop rice, peanuts, sesame, raisins etc. The binder can be sugar syrup, dates paste, honey etc.

Shape
The bar shape is rectangular by pressing and cutting. The size is adjustable.

Support Machinery
Support machinery can also be provided to work with the bar former to be automatic line, like sugar melting cooking pan, chocolate coating machine, auto sorting and packing machine etc.

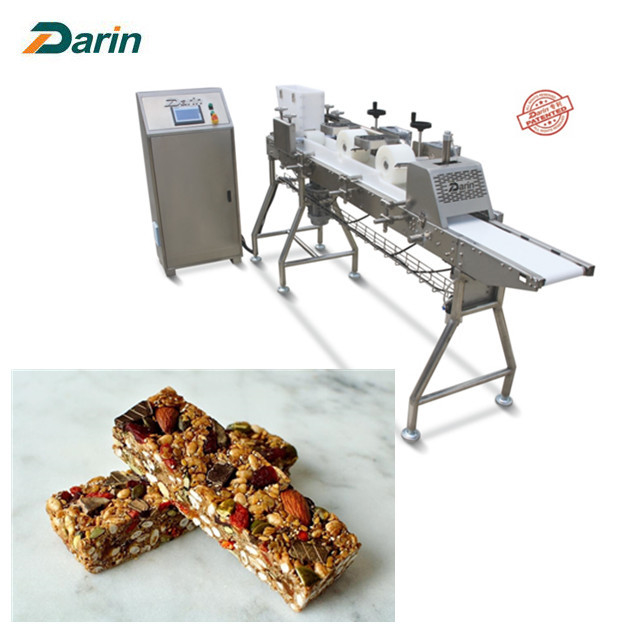

Machine Picture

Mini Granola Bar Cereal Bar Making Machine Stainless Steel 0

Technical Parameter



Machine Mini Granola Bar Former
Power 2.2kw
Material Hopper Size 540 x 450 x 350mm
Hopper Volume 8L
Conveying Belt Width 180mm
Product width 30-150mm
Product thickness 10-30mm
Weight 500kg
Dimension 3000 x 600 x 1500mm



Sample picture



Mini Granola Bar Cereal Bar Making Machine Stainless Steel 1



Mini Granola Bar Cereal Bar Making Machine Stainless Steel 2

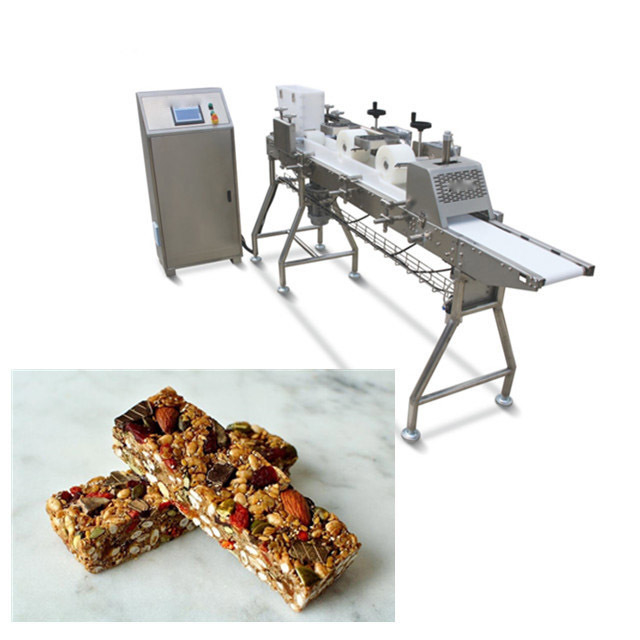

Mini Granola Bar Forming Line



Mini Granola Bar Cereal Bar Making Machine Stainless Steel 3

The mini granola bar former can also work with auto sorting and packing machine to be full automatic line. Support machinery can also be provided like sugar melting cooking pan, rice puffer, chocolate coating machine etc.





Service



1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.

6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
