Corn Puff Snack Food Extruder Machine Double Screw Stainless Steel
Product Details
| Product Name: | Double Screw Corn Puff Snack Food Extruder Machine Stainless Steel | Dimension(L*W*H): | 2150*1500*2300 |
|---|---|---|---|
| Voltage: | 380v, 50hz, 3phases (adjustable) | Warranty: | 12 Months |
| Applied: | Corn Puff Snack Extruder | Material: | SS304 |
| Manual: | English Version | Capacity: | 120-150kg/h,200-250kg/h,400-500kg |
| Highlight |
SS304 Snack Food Extruder Machine,Double Screw Puff Snack Machine,Corn Puff Snack Food Extruder Machine |
||
Product Description
Double Screw Corn Puff Snack Food Extruder Machine Stainless Steel
Introduction of Corn Puff Snack Food Processing Production Making Machine Line:
| NO. | Name | Brief introduction |
| 1 | Raw material | Corn, rice, wheat, oat, barley, millet, sorghum etc as main ingredients |
| 2 | Basic Recipe | Salt sugar powder, flavor material, cocoa powder and so on |
| 3 | Processing flow | Mixing system; Extrusion system; Drying system; Flavoring system; Packing System |
| 4 | Equipment involved | Mixer; Screw elevator; Double screw extruder; Air conveyor; Dryer; Flavoring system;Packing machine |
| 5 | Final products | Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape cereal snacks by adjusting the mould in the extruder ; |
| 6 | Machine material | Stainless steel 304 or as customer’s request |
Main Features of Corn Puff Snack Food Processing Production Making Machine Line
Our extrusion machines can produce various uncoated, coated or filled cereal based snacks – with a wide variety of recipes and shapes. corn puff snack extruder machine adopt twin-screw extrusion technology and are highly flexible. They can be easily modified to process new products such as filled products, corn chips snacks or bread crumb snacks, with just easily adding someauxiliary equipment.

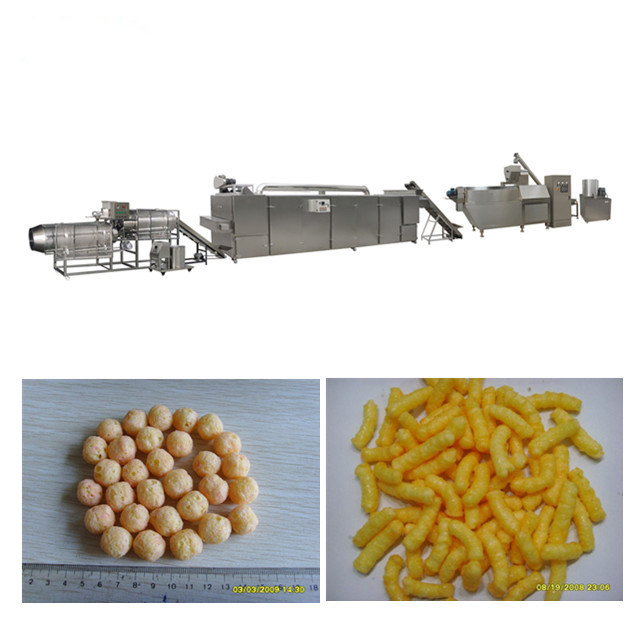

Machine and sample pictures:
Technical Parameters:
| Model | Power(KW) | Capacity(KG/H) | Dimension |
| MK- 65 | 70 | 120-150 | 21000x1200x2200mm |
| MK-70 | 90 | 200-240 | 23000x1500x2200mm |
| MK-85 | 120 | 450-500 |
28000x3500x4 |
Introduction of detail corn chips line equipments:
| Name & Parameters | Description | Picture |
|
Flour Mixer
|
Flour Mixer is used to mix the raw material, like corn flour, rice flour, fish bone flour, ox bone flour with liquid and other additives.
|
|
|
Screw Conveyor
|
Screw Conveyor is used to the convey the materials to the feeder of the extruder.
|
|
|
SR-70 Double-screw Extruder
|
Double Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing, de-gassing, cooking and forming.
|
|
|
Big Hoist
|
Big Hoist is a conveyor, which is used to convey the raw materials to next equipment.
|
|
|
Five-Layer Roaster
Driving Power: 3.75kw Fan Power: 2.2kw x 2 = 4.4kw Roaster Dimension: 5300 x 1100 x 2300mm Electric Cabinet Dimension: 600 x 340 x 1220mm
|
Five-Layer Roaster is used to dry a wide range of products, such as puff snacks, corn flakes, core filling food, etc.
|
|
|
Flavoring System
|
Flavoring System is used to spray the flavor powder and oil onto snacks evenly.
|
|
|
LQX-5 Cooing conveyer
|
LQX-5 Cooling conveyer is used to cool the pet snacks after cutting.
|
|
|
Packing Machine
|
|
|
Samples of the double screw corn puff machine:
1. How is you factory extrusion experience?
Reply: 18 years experience on extrusion . Corporated with Siemens and Schneider company.
2. Could we visit your factory to check the machine carefully and closely?
Reply: Highly appreciated factory visiting, will provide machine testing service, face-face discussing, turnkey project design solution
3. How long is your machine's guarantee time?
Reply: 1 year without normal wear parts, machine itself life guaranteed
4. Could you afford technician team to guide ours installation and commissioning?
Reply: Experienced engineer oversea installation service provided, pls provide go-back air ticket ,visa, local accommodation and salary
5. If we have very special request for the production line, could you help me to do the design?
Reply :Experienced mechanical designer customized-deign provided
6. If we show you our layout of factory, can you help to design the whole process line?
Reply: Layout design service provided after received customer’s factory layout size
7. If we have samples of new products, can you help to analysis and design the machine?
Reply: Yes, Our technical department can help to analysis, design and test the new products you offered
