CE Certificate Large Capacity Pet Food Line Twin Screw Extruder
|Place of Origin:||Jinan,Shandong Province|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 SET|
|Price:||USD 26000~ USD 150000|
|Packaging Details:||wooden case, which is suitable for long-distance transportation, multi-time loading & unloading for fork trucks.|
|Delivery Time:||45 WORKING DAYS|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||50 SETS PER YEAR|
|Features:||Continuous & Automatic||Condition:||New|
|Application:||Dry Pet Food||Warranty:||1 Year|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Layout:||AutoCAD Format According To Client Workshop|
Large Capacity Pet Food Extruding Line,
150kg/Hr Pet Food Line,
CE Certificate Pet Food Extruder

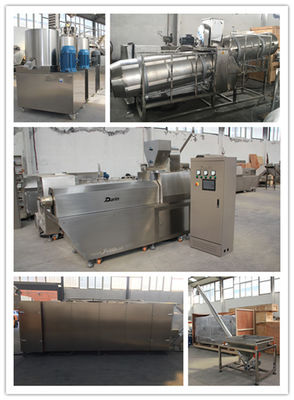

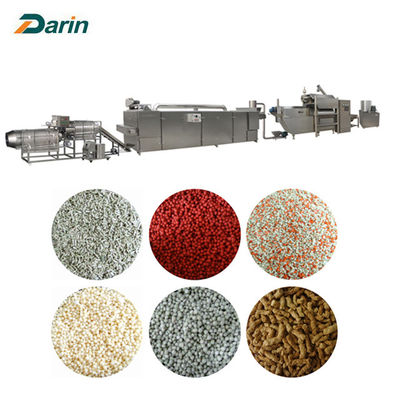

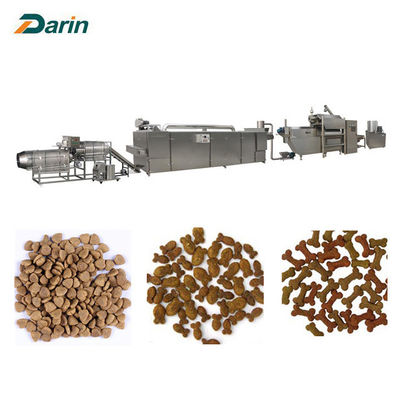

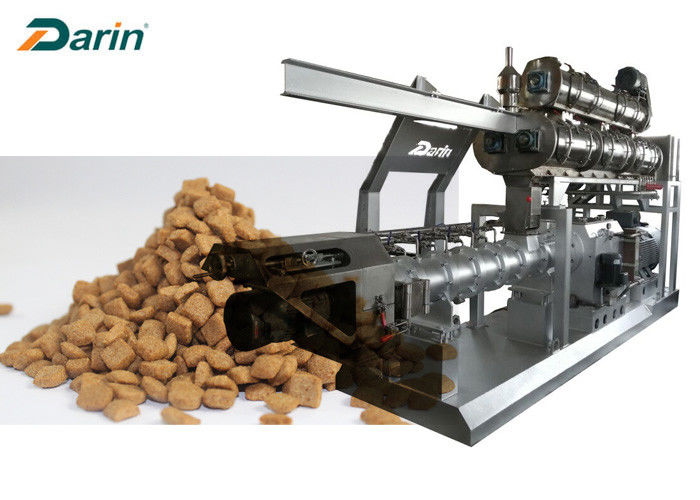

Large Capacity Pet Food Extruding Line Dog Food Extruder Twin Screw Extruder
The Large Capacity Pet Food Extruding Line Dog Food Extruder Twin Screw Extruder is used to make dry pet food for dog, cat, fish, etc.
1. The pet food extruding line dog food extruder is mainly used to make dry pet food for dog, cat, fish etc.
2. Raw materials: Corn flour, rice flour, wheat flour, chicken powder etc.
3. The pet food shape and size can be various by changing molds, and molds can be customzied as request.
4. Standard voltage 380v, 50hz, 3 phase, also can customize as needed.

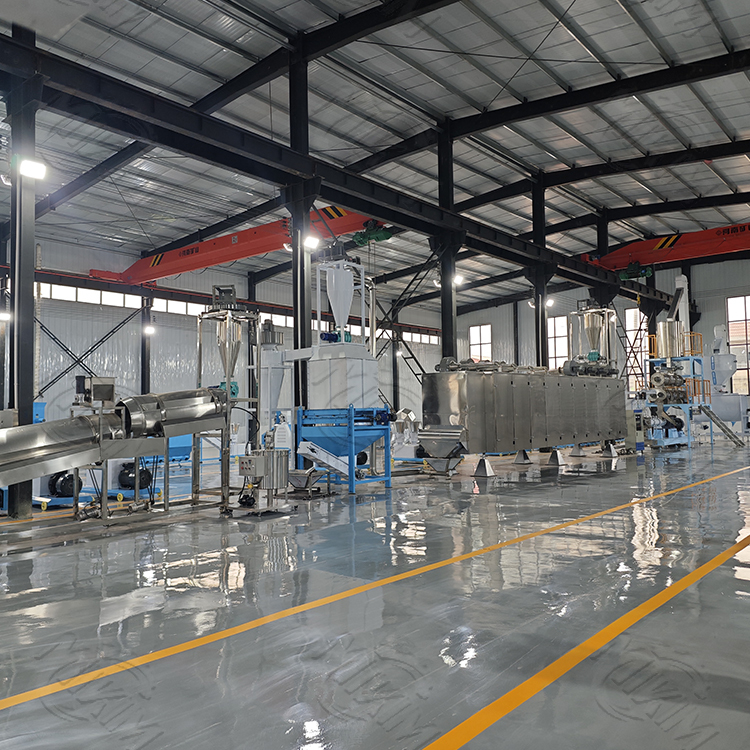

5. Flow chart: flour mixing-screw conveying-extruding-sifting-air conveying-drying-flavoring.
6. Packing machine can also be supplied to work with the line.
7. Different capacity for choice: from 100kg/hr to 5ton/hr.
8. Centralized control, Siemens PLC and touch screen.
9. All parts touching with food are stainless steel.
|Dimension||18 x 5 x 3m||20 x 5 x 3m||35 x 5 x 3m||40 x 5 x 3m|
Commissioning & After-sales Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
Why Choose Us?
1. Germany WEG motor, three years worldwide guarantee
2. Siemens PLC and touch screen to control the whole line, all faults will display on the touch screen
3. ABB or Schneider electric parts
4. NSK bearings
5. All parts touch with raw materials or final products are made of stainless steel 304
6. 24V operation voltage, assure the safety of operators
7. Three kinds of protectors to keep machine and operator safe: over-heating, over-current, over voltage.
