Dog Treats Pet Food Extruder Machine Big Capacity 5ton
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DR-65/70/85/90/95/135 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | Negotiate |
| Packaging Details: | We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading. |
| Delivery Time: | 120 working days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Sets per year |
|
Detail Information |
|||
| Condition: | New | Place Of Origin: | Shandong, China (Mainland) |
|---|---|---|---|
| Application:: | Dog Treats | Voltage: | 380V Or Customizable |
| Power: | 165KW | Warranty: | 12months |
| Payment Terms: | T/T OR L/C | Material: | Stanless Steel |
| Capacity: | 5ton/hr | Name: | Pet Food Production Line |
| High Light: | 5ton Pet Food Extruder Machine,CE Certificate Dog Food Extruder,5ton/hr Dog Food Extruder |
||
Product Description
Big Capacity Pet Food Machine 5ton Pet Food Extruder Machine
5Ton Dog Food Processing Line
5-ton/hr dog food/fish food/cat food making machine worked in our Beirut customer factory. This is one complete automatic dosing system with PLC control and the video showed part is 5 ton extruder.
There are nine parts.
1. Material receiving, batching section.
2. One-time crushing section.
3. Blending section.
4. Extruding Section.
5. Drying section.
6. Coating Section.
7.Cooling & Grading Section.
8. Finished Product Distribution & Storage Section:
9. Control system Section. Extruder capacity is 5ton/hr. Total power is 581.24kw Extruder need steam. 1.5 Ton Boiler are needed, the pressure rating of boiler is 0.4-0.7Mpa.
Use pressure is 0.4Mpa. 7.5kw air compressor also need.
Use pressure is 0.4Mpa. 7.5kw air compressor also need.
The machine materail is Stainless Steel.The electric parts use the schneider or Delixi, the motor and PLC control system is SIEMENS.
Darin pet food making machine capacity have many choice. Such as 100-150kg/hr, 200-300kg/hr, 500kg/hr, 800-1000kg/hr, 2ton/hr, 3ton/hr or 5ton/hr. According to your requires, we will provide the relavant equipment.

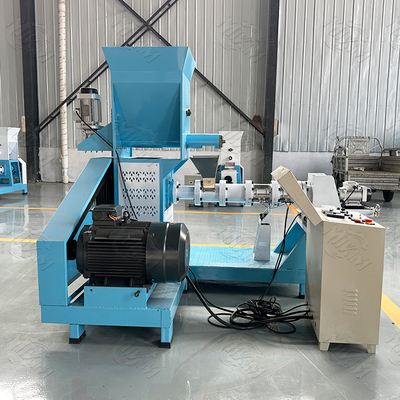

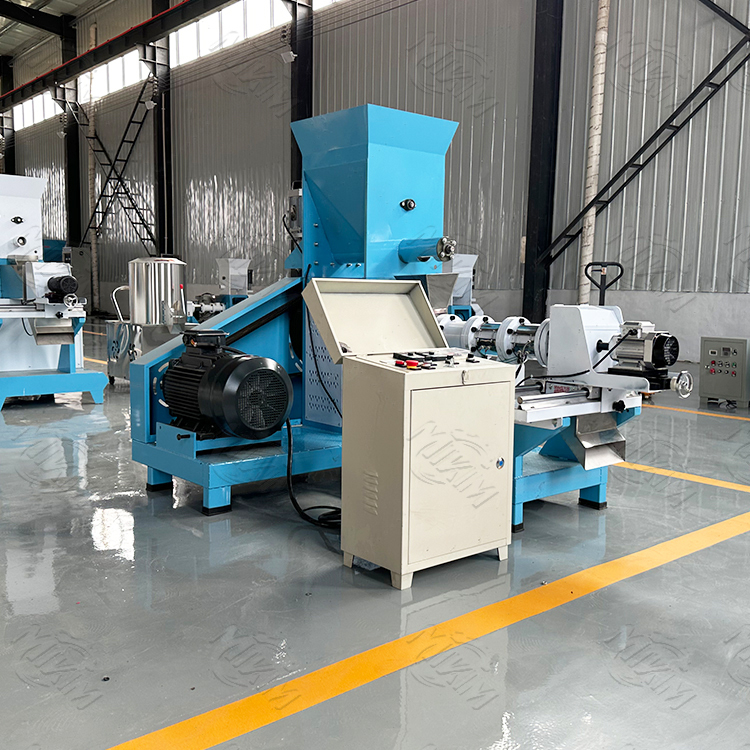

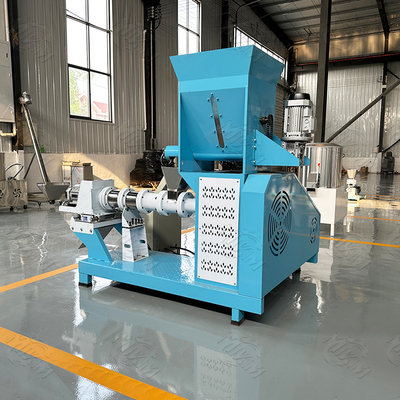

Machine Photo
Machine Details
Certificate
Exhibition

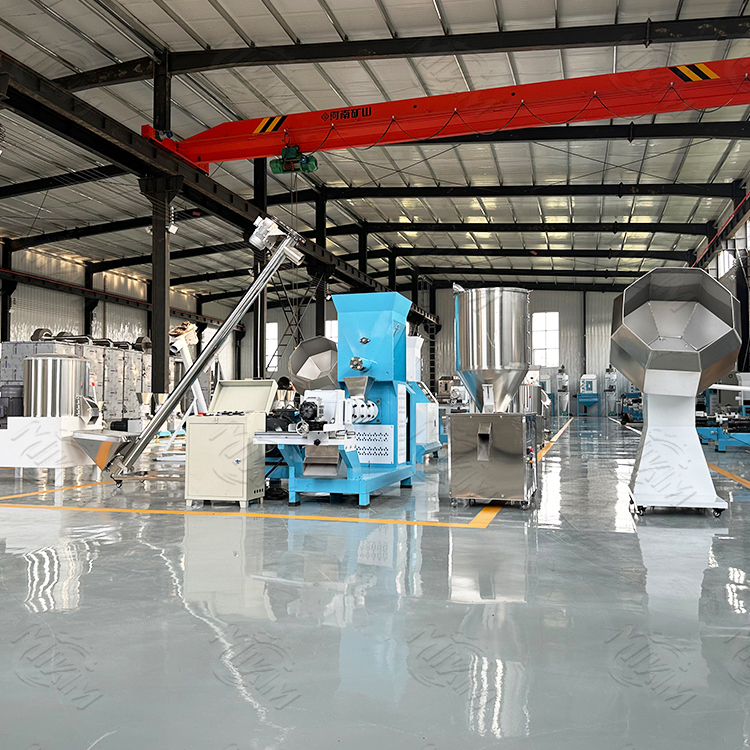

Our factory
