150mm 90pcs/Min Cereal Bar Making Machine With Cutter
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | Mini |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD |
| Packaging Details: | export wooden cases |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 99 sets per year |
|
Detail Information |
|||
| Name: | Mini Granola Bar Former | Material: | Stainless Steel |
|---|---|---|---|
| Recipe: | Fee Of Charge | After-sales Service: | Full Life |
| Layout: | Auto CAD Format According To Client's Workshop | Output: | 70-90pcs/min |
| High Light: | 90pcs/Min Cereal Bar Making Machine,150mm Cereal Bar Making Machine,PLC Bar Making equipment |
||
Product Description
70-90pcs/min Cereal Bar Making Machine Small Energy Bar With Cutter Mini Granola Bar Making Machine Energy Bar Former Snack Fruit Bar Machine
Introduction
Mini Granola Bar Former can be used for producing rectangular shape cereal bar.
- The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.
- The useful width of cereal bar cutting machine is 170mm.
- Controlled by Siemens PLC with touch screen with friendly interface.
- Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
Raw Material
A wide range of ingredients can be used as raw material, like oats, pop rice, peanuts, sesame, raisins etc. The binder can be sugar syrup, dates paste, honey etc.
Supporting Machines

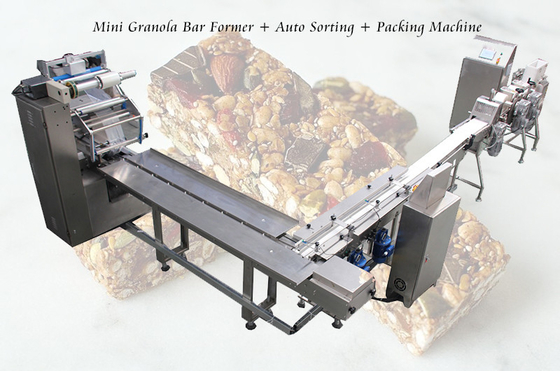

Supporting machines can also be provided to work with the bar former to be automatic line, like sugar melting cooking pan, chocolate coating machine, auto sorting and packing machine etc.

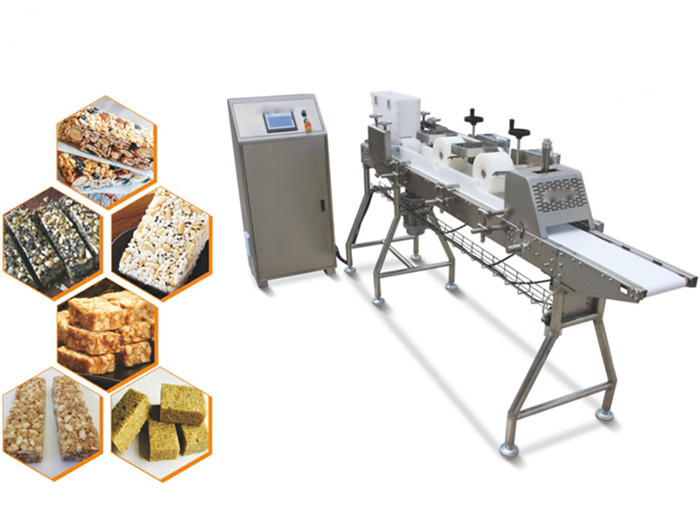

Machine Picture
Technical Parameter
| Machine | Mini Granola Bar Former |
| Power | 2.2kw |
| Material Hopper Size | 540 x 450 x 350mm |
| Hopper Volume | 8L |
| Conveying Belt Width | 180mm |
| Product width | 30-150mm |
| Product thickness | 10-30mm |
| Weight | 500kg |
| Dimension | 3000 x 600 x 1500mm |
Sample picture

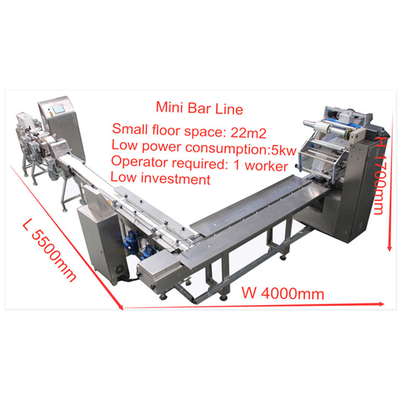

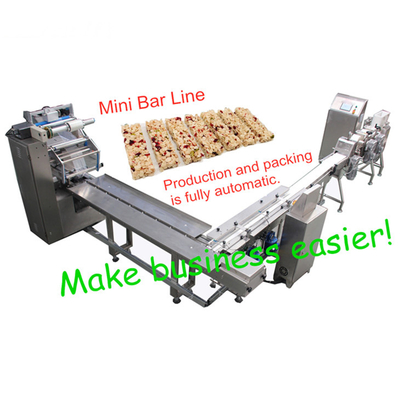

Mini Granola Bar Forming Line
70-90pcs/min Cereal Bar Making Machine Small Energy Bar With Cutter
Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
