Mini Granola Bar Former Energy Bar Making Machine / Cereal Bar Machine
Product Details
| Name: | Mini Granola Bar Former | Material: | Stainless Steel |
|---|---|---|---|
| Recipe: | Fee Of Charge | After-sales Service: | Full Life |
| Layout: | Auto CAD Format According To Client's Workshop | Output: | 60-80pcs/min |
| Highlight |
chocolate Bar Making Machine,rice cake making machine |
||
Product Description

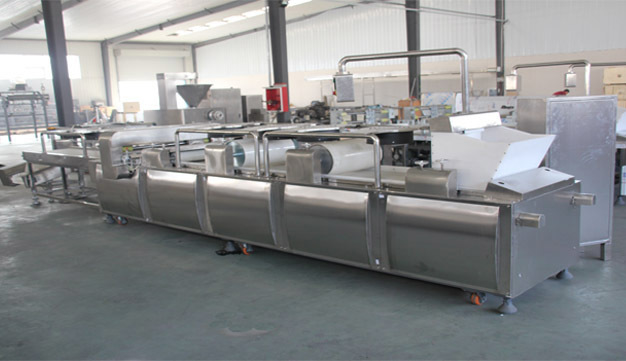

Granola Bar Former Energy Bar Making Machine Cereal Bar Machine
Introduction
Mini Granola Bar Former can be used for producing rectangular shape cereal bar.
- The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.
- The useful width of cereal bar cutting machine is 170mm.
- Controlled by PLC with touch screen with friendly interface.
- Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously.
Raw Material
A wide range of ingredients can be used as raw material, like oats, pop rice, peanuts, sesame, raisins etc. The binder can be sugar syrup, dates paste, honey etc.
Shape
The bar shape is rectangular by pressing and cutting. The size is adjustable.
Support Machinery
Support machinery can also be provided to work with the bar former to be automatic line, like sugar melting cooking pan, chocolate coating machine, auto sorting and packing machine etc.
Technical Parameter
| Machine | Mini Granola Bar Former |
| Power | 2.2kw |
| Material Hopper Size | 540 x 450 x 350mm |
| Hopper Volume | 8L |
| Conveying Belt Width | 180mm |
| Product width | 30-150mm |
| Product thickness | 10-30mm |
| Weight | 500kg |
| Dimension | 3000 x 600 x 1500mm |
Sample picture

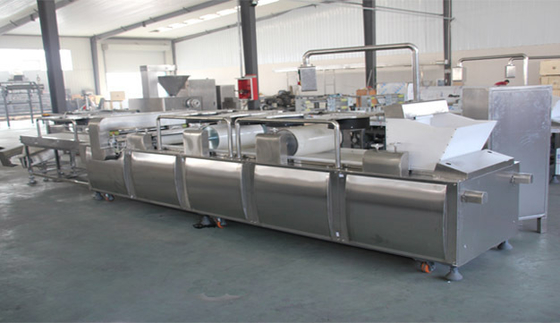

Mini Granola Bar Forming Line
The mini granola bar former can also work with auto sorting and packing machine to be full automatic line. Support machinery can also be provided like sugar melting cooking pan, rice puffer, chocolate coating machine etc.
Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
