Low Energy Consumption Dog Treat Machine For Pet Treats , High Performance
Product Details:
Place of Origin: | Jinan,Shandong Province |
Brand Name: | DARIN |
Certification: | CE Certificate |
Model Number: | DM-268 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | We supply standard export wooden cases, suitable for long-term trips and mul-times loading & unloading by forklift. If needed, please extra pay for the packages. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/A, D/P |
Supply Ability: | 99 sets per year |
Detail Information |
|||
Name: | Pet Treats Injection Molding Machine | Application: | Dental Treats Dog Chews |
---|---|---|---|
Warranty: | 1 Year | Material: | Stainless Steel |
Mold: | Various Shapes | Manual: | English Version |
Training: | Provide By Technician In Commissioning Service | ||
High Light: | food processing machinery,dog treat making machine |
Product Description
High Performance Delivered with Low Energy Consumption Pet Treats Injection Molding Machine for Pet Treats
Introdution
An Injection molding machine, or (Injection moulding machine ), also known as an injection press, is a machine for manufacturing pet treats products by the injection molding process. It consists of two main parts, an injection unit and a clamping unit. is special machinery for producing pet snacks.
Large Ram Diameter
Provides Uniform Force Distribution Across Platen
Provides Excellent Mould Squareness & Parallelism
Reduces Mould Wear
Generous Mould Space
Accommodates Large Moulds
Wide Skates for Platen Supports
Reduced Platen Deflection
Enganced Life of Tie-bars
Higher Mould Carrying Capacity
Closed Loop PID Temperature Control
Provides Precise Temperature Control
Excellent Process Control & Stability
Endura – II Advanced User-Friendly Control
Ergonomic Layout
High Speed Microprocessor
Direct Access Menu Keys
Graphical Presentation of Machine Features
Self Diagnostic & Fault Finding Capability
Parameter Entry in Absolute Value
Central Monitoring System
Statistical Process Control (SPC)
Twin Cylinder Injection Unit
Uniform Load Distribution Across Screw Center Line
Precise Linear Guideways
Frictionless Linear Bearing Guideways Improve The Injection Power & Cylinder Alignment
Servo Motor
Outstanding Energy Saving
Faster Response towards Hydraulic System
Excellent Shot Weight Consistency
Reduced Noise Level
SPECIFICATION
Clamp
Hollow Headless Ram with Mono Seal & No Piston Rings
Large Prefill Design for Fast Tonnage Build Up
Rapid Traverse Cylinders
Proportional Speed Control
Proportional Speed Control with 5 Stage Closing and 5 Stage Opening Speed
Adjustable Moving Platen Skates
Rigid Cast Platens with FEA
Adjustable Pressure Setting of Closing & Opening Stage
Adjustable 2 Stage Mould Safety Pressure & 1 Stage Speed
Position Based Ramping for Accurate Position Switching
Precise speed and pressure control
Linear Position Transducer for Accurate Clamp Position Control
Sensitive Mould Protection With Try Again Circuit
Stage Wise Actual Time Display
Insert Moulding Program
Actual Tonnage Display on Screen
Injection
6 Stage Injection Velocity & 15 Stage Injection Pressure Profile
5 Stage Screw Speed & 5 Stage Back Pressure Control (Setting) through Screen
Digital Setting of Extruder RPM & Digital Read out of Actual RPM
Wide Choice of Injection Units with A’-A-B Screw/Barrel Combinations
Easy Injection Unit Swivelling
Switch Over from Fill to Pack Based on Position or Time
Linear Position Transducer for Accurate Injection Position Control
Injection Decompression Before / After Refilling or Both
Semi-Auto Purge, Cold Slug removal & Intrusion Moulding programs
Aluminium Chequered Plate below Purge Area
Sprue Break with Timer
Injection start, Suck-back & Melt Decompression – Delay Timer
Graphically Adjustable Alarm Bands for Injection Pressure
Sliding Hopper
Controls
22 Parameter Monitoring for last 1000 cycles with Graphics
4” TFT Color Display with Alpha – Numeric Keypad
Actual Injection Speed & Pressure Graph Display
80 Mould Data Storage
Configurable Multilevel Password with Operator’s Name
Graphical Presentation of Hourly Production
Customized Setup Menu
High / Low Limit Display for Each Adjustable Parameter
I / 0 disgnosis – Analog & Digital
Timer precision in 0.01 second
Change Log Menu: logs last 100 Set Points Changes with Time & Date
Statistical Process Control (SPC) with Graphics
Process Mode: Functions with its Co-functions on a Single Key Press
Note pad & Maintenance Scheduling
Freely Programmable Smart Outputs
Overview Screen with Graphical Display of Machine Functions
Soft Keys for Fast Access of Select Menus
Auto shut down
Visual & Audible Alarm
1000 Alarm History with Date & Time log
Printer Interface with USB Port
Axis wise Graphical Cycle Time Analysis
Batch counter with option to turn off the motor.
Mould data / Process data / Change log saving to External USB device.
Commissioning Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 60 are on client’s account.
Parameters:
Sample Picture

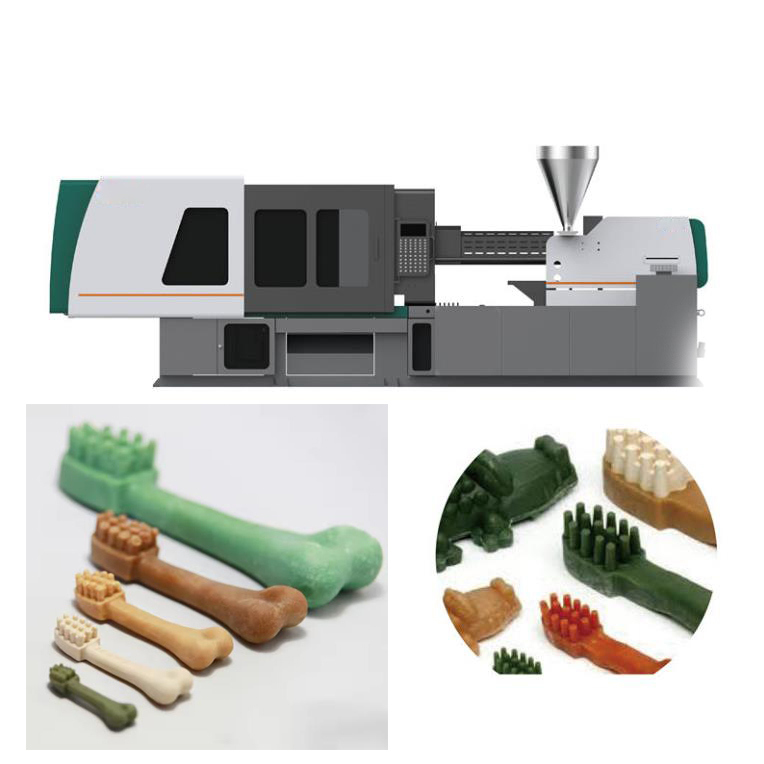

Pet Treats Molding Machinery for producing pet snacks and pet chewing toys.
