Single Screw Auto Pet Treats Dog Chews Food Making Equipment
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DRD-100 / DRD-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | USD 28000~ USD 35000 |
| Packaging Details: | We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading. |
| Delivery Time: | 60 working days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Sets per year |
|
Detail Information |
|||
| Condition: | New | Place Of Origin: | Shandong, China (Mainland) |
|---|---|---|---|
| Application:: | Dog Treats | Voltage: | 380V Or Customizable |
| Power: | 35-100KW | Warranty: | 12months |
| Payment Terms: | T/T OR L/C | Material: | Stanless Steel |
| Capacity: | 100-150kg Per Hour , 200-250kg Per Hour | ||
| High Light: | feed pellet extruder,pet extruder machine |
||
Product Description

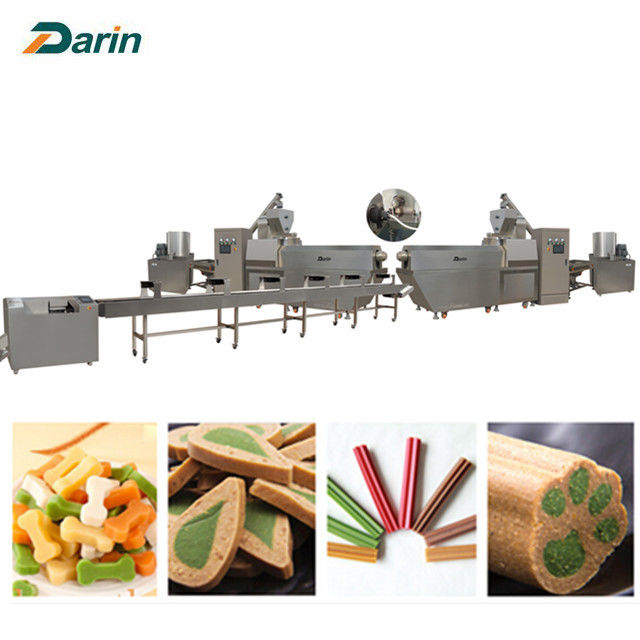

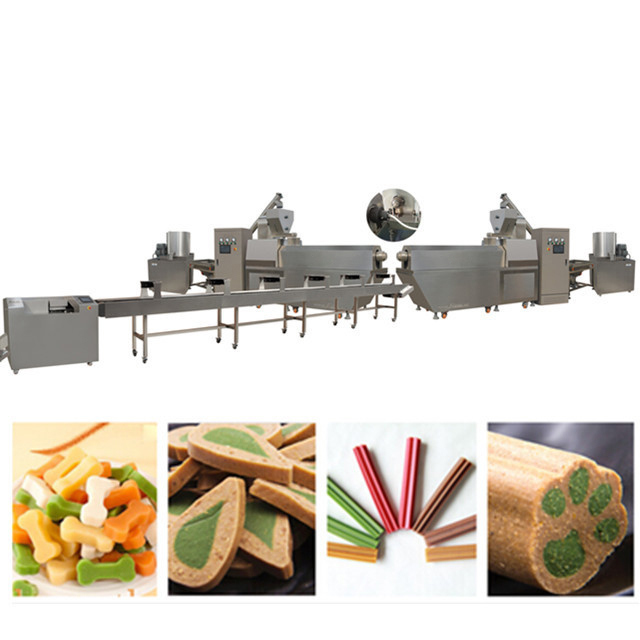

Introduction of Pet Chews/Dog Treats Machine
(1)Pet treats processing line takes starch as raw materials with scientific configuration and was extruded from coextruder machine ,it can be made into many kind of shapes such as stick, bone ect.This kind of dog food not only provide protein fat vitamin nutrition for dogs, but also satisfy the dog nature hobby.It has following features: strengthen teeth, clean mouth and teeth, the products can be in many shapes, like twist, bi-color, core-filling and so on.
The equipment list of Pet Chews Treats Machine
(1)Single color Dog chews machine
Mixer → Screw conveyer→Single-screw extruder → Cooling conveyor → Cutter machine
(2)Double color dog chews machine
Mixer *2→ Screw conveyer*2→Single-screw extruder*2 → Cooling conveyor → Cutter machine → elevator → Dryer
pet chews and dog treats making extrusion machine pet treat pocessing line introduction:
Pet treats processing line takes starch as raw materials with scientific configuration and was extruded from coextruder machine ,it can be made into many kind of shapes such as stick, bone ect.This kind of dog food not only provide protein fat vitamin nutrition for dogs, but also satisfy the dog nature hobby.It has following features: strengthen teeth, clean mouth and teeth, the products can be in many shapes, like twist, bi-color, core-filling and so on.
Flow chart :
1)Single color Dog chews machine
Mixer → Screw conveyer→Single-screw extruder → Cooling conveyor → Cutter machine
(2)Double color dog chews machine
Mixer *2→ Screw conveyer*2→Single-screw extruder*2 → Cooling conveyor → Cutter machine → elevator
Machine parameters
|
Model
|
Installed Power
(kw)
|
Power Consumption
(kw) |
Capacity(kg/h)
|
Dimension(m)
|
|
100 processing line
|
47.25
|
40
|
120-180
|
17*1.2*2.2
|
|
300 processing line
|
94
|
85
|
200-300
|
20*1.5*2.2
|
Main Features
1).Our processing line adopt international advanced technology.
2).we can adjust the cutter speed and the dies to get the different diameter and the length product
3).The Electric heating device system can control the temperature accurately
4).High temperature and high pressure can kill the salmonellosis andbacterial infections.
5).The processing line can produce both floating and sinking fish feed.
Raw material:
Materials: Corn powder, wheat flour,fish powder, bone powder,meat,glycerin,starch etc and water.
Pet treats/dog chews sample picture:
