Granola Peanuts Sesame Rice Mixing Bar Forming Line
Product Details:
| Place of Origin: | Jinan,Shandong Province |
| Brand Name: | DARIN |
| Certification: | CE Certificate |
| Model Number: | DRC-65 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | USD 3000~ USD27000 |
| Packaging Details: | We could supply Export Standard Wooden Case, suitable for long trip and loading & unloading. |
| Delivery Time: | 45 working days after receiving the down payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Sets per year |
|
Detail Information |
|||
| Condition: | New | Name: | Multinational Oat Chocolate Cereal Fruits Nuts Candy Bar Moulding Machine |
|---|---|---|---|
| Material: | SUS304 | Brand: | Darin |
| Capacity: | 300~500kg Per Hour | After-sales Service Provided: | Engineer Available To Service Machinery Overseas |
| Warranty: | 12 Months Warranty | ||
| Highlight: | snacks making machine,peanut bar making machine,SUS304 Bar Forming Machine |
||
Product Description

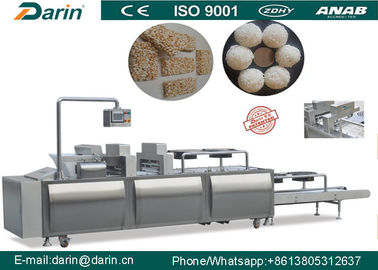

Granola peanuts sesame rice mixing Bar forming line SUS304 material
Introduction
DRC-65 Rice Bar Making Machinery can produce all kinds of shapes of cereal bars with the raw material of rice, millet, wheat, highland barley, fagopyrum tataricm Gaertn, maize, broomcorn, Chinese pearl barley, buckwheat, etc.
Features

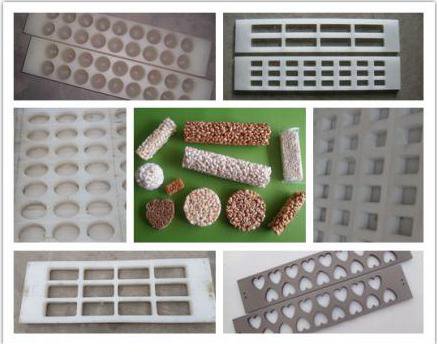

1. | The shapes can be round, cylindrical, square, semi round, triangular and blossom, etc. |
2. | Mechanical pressing & rubbing, does not hurt nuts, without waste. |
| 3. | Mechanical driving, accuracy positioning, upper and nether moulds tight fit, makes super cereal bar shaping. |
| 4. | Using high performance frequency inverter, easy adjust speed, high efficiency, it can produce 24-hour continuously. |
| 5. | Moulds and hopper are both non-sticky processed. All the parts may contacts food are all non-toxic material, oil and high temperature resistance. |
6. | Cooling conveyer can be customized as demand. |
Technical Parameters for Cereal Bar Forming Machine
| Output | 5000-30000pcs/hr |
| Power | 2.5kw |
| Product max thickness | 2cm |
| Mould size | 640 x 126mm |
| Effecitive mould size | 540 x 126mm |
| Weight | 1200kg |
| Dimension | 5300 x 965 x 1850mm |
Full information for Each Equipment as below:
1.Sandwich Pot (200L)
Has large heating area, high thermal efficiency, even heating, liquid material boiling, time is short, easy to control the heating temperature etc..
Technical parameters:
Voltage:380V
Power:15kw
Volume:200L
Inner diameter of the boil:840mm
Outline dimension:905*990*1470mm
2.Mixer
Power:1.1kw
Voltage:380V/50HZ
Outline dimension:700*500*1200mm
Mix capacity:15KG/time

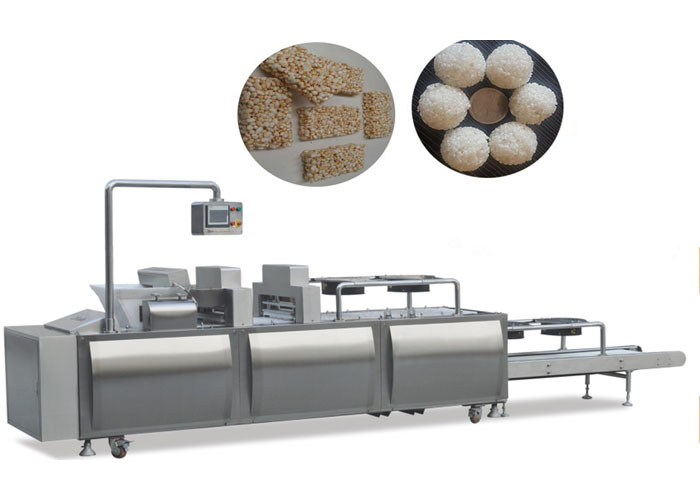

3.Full automatic cereal bar forming machine
This machine are suitable for flatting and cutting the muesli bar.Easy to operation.
Characters:
1.Frequency control,flatting and cutting for one time
With With multiple level structure, pressed flat, uniform thickness
2.With multiple flat structure,pressed flat,uniform thickness
3.Automatic cutting ,Time saving, labor saving, economical and convenient
Technical parameter:
Power:4kw
Voltage:380V/50Hz
Outline dimension:11800*1200*1200mm
Capacity:300kg/h
Automatic cutting ,Time saving, labor saving, economical and convenient
If you need to change another width size, only change the cutter shaft is ok
Commissioning & After-sales Service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, materialstorage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country
immediately; normally the vessel needs 20-60 days to the required port, so we have enough time toget the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
