Full Automatic Cereal Bar Cutting Machine Stainless Steel Peanut Brittle Candy
Product Details:
Place of Origin: | Jinan,Shandong Province |
Brand Name: | DARIN |
Certification: | CE Certificate |
Model Number: | DRC-75 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD |
Packaging Details: | export wooden cases |
Delivery Time: | 45 working days |
Payment Terms: | L/C, D/P, T/T, Western Union |
Supply Ability: | 99 sets per year |
Detail Information |
|||
Name: | DARIN Patent Granola Bar/Muesli Bar Cutting Machine/Processing Line | Material: | Stainless Steel 304 |
---|---|---|---|
Recipe: | Fee Of Charge | After-sales Service: | Full Life |
Layout: | Auto CAD Format According To Client's Workshop | Output: | 400-600kg/hr |
High Light: | chocolate Bar Making Machine,granola bar machine |
Product Description
Full Automatic Stainless Steel Peanut Brittle Candy Cereal Bar Cutting Machine
Introduction
Full Automatic Stainless Steel Peanut Brittle Candy Cereal Bar Cutting Machine Rectangular Shape, realizes gentle pressure forming, regular shapes ,beautiful appearance.
Peanuts material mix sugar after pour into the hopper machine, machine automatic points in material, fabric, soft pressure, cooling and demoulding, finish the delivery.
1. Combined procedures into one: Filling materials - Pressing shape - Cooling materials - Cutting muesli bar - Conveying & cooling muesli bar.
2. Material hopper is made by food grade HMWHDPE to avoid the sticking materials, also has heater to keep temperature. The filling blade is made by PTFE, and could evenly and stably fill the materials to conveyor belt, without materials wastage.
3. Controlled by Siemens PLC and touch screen with friendly interface. The staff could 180°rotate the touch screen, flexible and convenient.
4. The controller languages can be Chinese, English, French, Arabic, Spanish, Russian, etc.
Motor | WEG or Siemens | Mixing Tank and Conveying Belt | HMWHDPE |
PLC & Touch Screen | Siemens | Mixing Blade, Mold and Hopper Blade | PTFE |
Electric Parts | ABB or Schneider | Cover Body | Stainless Steel |
Technical Parameters
Output | Installed Capacity | Voltage / Frequency | Dimension | Workers Required |
300-500kg/hr | 15.2kw | 380V 50Hz | 6.65 x 1.31 x 2m | 3-4 workers |

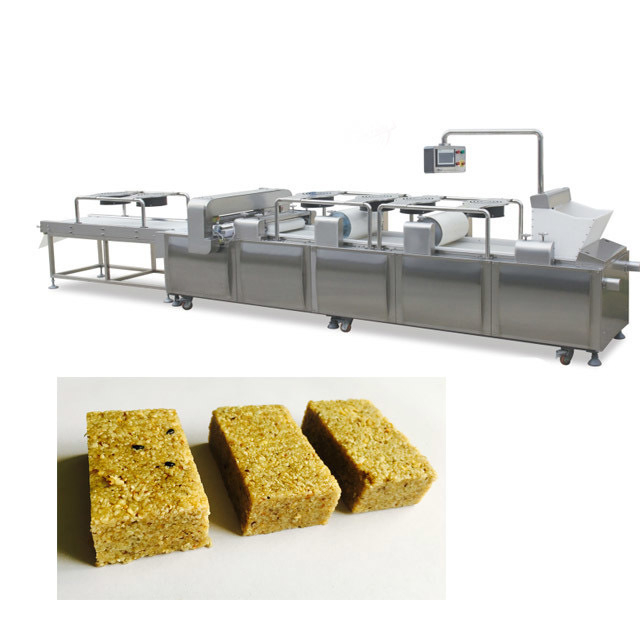

Machine Picture
Product Picture
Our service
1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.
3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.
5. It normally costs 10 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.
6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
