Breakfast Bar, Candy Bar, Raisin Nut Bar Making Machine
|Place of Origin:||Jinan,Shandong Province|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden case|
|Delivery Time:||35-45 working days|
|Payment Terms:||T/T, L/C, D/P or Western Union|
|Supply Ability:||99 sets per year|
|Name:||Snack Bar Making Machine/peanut Bar Cutting Line/cereal Bar Cutting Machine||Material:||SUS304|
|Condition:||Continuous & Automatic||Manual:||English Version|
|After-sales Service:||Full Life||Layout:||AutoCAD Format According To Client’s Workshop|
chocolate Bar Making Machine,
granola bar machine

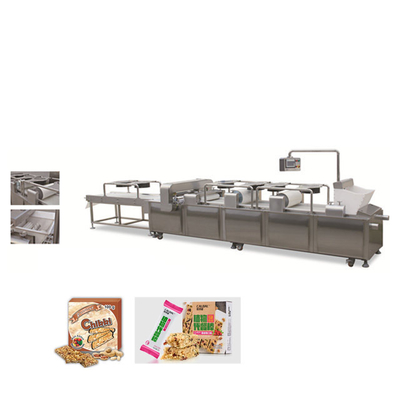

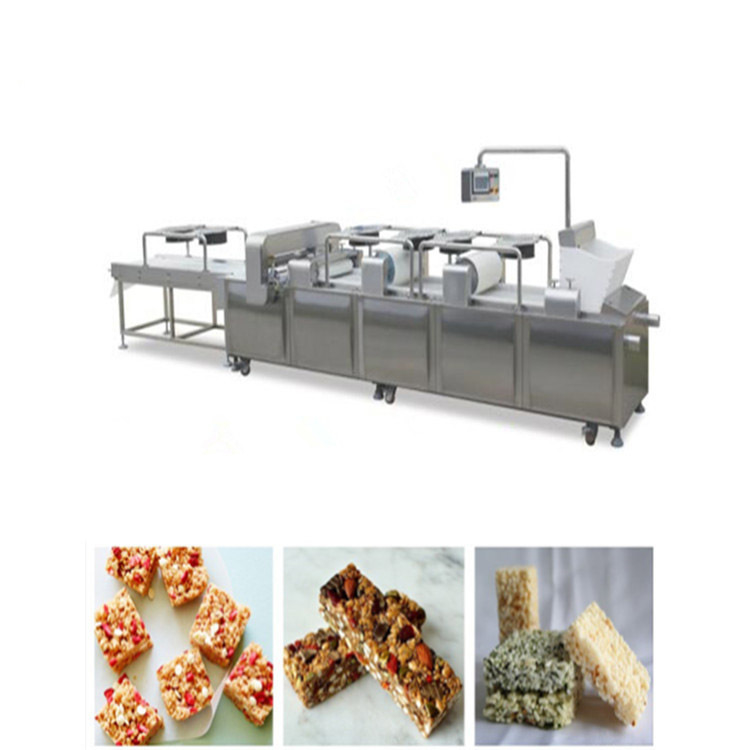

Breakfast bar, candy bar, raisin nut bar making machinery
This line is used for production of puffing rice/ peanuts nougat and mainly consists of cooking unit, mixer, press roller, cooling machine and cutting machine.
It has very high automation and can finish the whole process from the raw material to final product once time, without destroy the product interior nutrition ingredient.
This line enjoys advantages as proper structure, high efficiency, beautiful appearance, safty and health, stable performance.
It is an ideal equipment which help to reduce production cost and produce high quality nougat. Naugat produced by this line has right balance of hardness and softness, good taste. v
|Per-sales service||1) sales person, project manager, accountant staff
2) professional responsible teem: would be very fastly and
|Online/sale service||1) super and solid quality
2) fastly delivery
3) standard export package or as you demand
|After-sale service||1) repairing and maintenance if any problem occur in the
2) any feedback of machine can be told us, and we will try
our best to support you
|Other cooperation service||1) technology knowledge share
2) honest to customers
|Output||Installed Capacity||Voltage / Frequency||Dimension||Workers Required|
|300-400kg/hr||9kw||380V 50Hz||8 x 4 x 2m||3-4 workers
1-Auto mixing & materials pouring system, materials pouring mouth and feeding can perfect match, and the equipment is more automatic, production is more continuous, capacity is more increased.
2-Forming conveyor belt is lengthened, cooling fans are increased to six pcs, the products can have better cooling effect and also will have better cutting forming effect.
3-The place where lengthways cutter and conveyor belt touch, through special processing, the products will be cutted totally, won’t have phenomenon of adhesion.
4-Crosswise cutter is changed to continuous cutting from before pausal cutting, the production will increase by 40%.
5-Beneath lengthways cutter’s conveyor belt, to install waste materials scraper blade, in order to clean the waste materials which stick on conveyor belt, and the waste materials will be collected by under tray, easy to clear.
6. DRC-75 cereal bar machine use the PTFE belt. This belt have the feature of anti-sticking, better tenacity and not easy to damage.
7. The pressing roller is made of food grade HMWHDPE material, more healthy with anti-sticking function. The side of roller mark the scale. Customer could accurately adjust the height of roller to meet the different thickness product requirement.
8. We added extra two sets of fans above the conveyor to cool the cereal bar quickly and become hard soon.
9. The cutter in the longitudinal direction take the cutter groove design. It will make sure the cereal bar be cutted 100% , no sticking and separate automaticly.
10.The cutter in the horizontal direction could continually automatic cut, no stop. At the same time , the capacity increased from 300kg/hr to 500kg/hr.
11. The useful width of cereal bar cutting machine is 540mm.
12. The connection of forming part and conveyor part use the gear drive, it is easy installment and disassembly.
