Product Details:

Place of Origin: Jinan,Shandong Province
Brand Name: DARIN
Certification: CE Certificate
Model Number: DM268

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: We supply standard export wooden cases, suitable for long-term trips and mul-times loading & unloading by forklift. If needed, please extra pay for the packages.
Delivery Time: 45 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 99 sets per year
Get Best Price Contact Now

Detail Information

Name: CE & ISO Approved Dog Chewing Food Processing Machinery With DM Series Application: Pet Dog Treats
Weight: 5000KG Voltage: 380V, 50HZ
Power: 89kw Guarantee: 1 Year
Spare Parts: 1 Set Mold: Various Shape
High Light:

food processing machinery


animal food making machine

Product Description

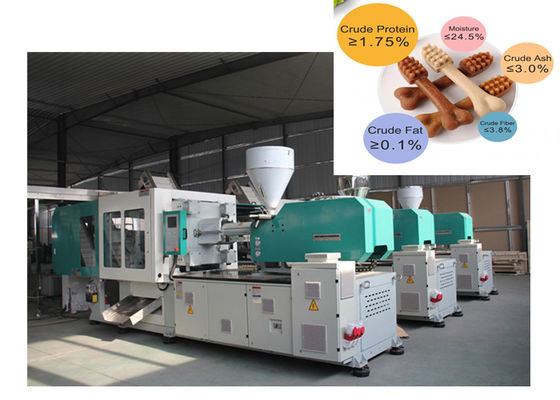

CE & ISO Approved Dog Chewing food processing machinery with DM Series




Pet snacks moulding machine
Dental care, meet dog's chewing hobby
Given as reward to pets
Various size ahd lovely shape


Clamping force: 5680KN
Installed power: 89kw
Max mold size: 800*800
Shot weight: 2500g
Dimension: 8.9*2.3*2.8m
Oil tank capacity: 1000L


Molding machine is for different shapes of products like list above. Changing the moulds, then it can produce different shape. So, the final products can be many shapes. Servo motor, energy saving up to 50%, low noise, oil temperature no more than 35 degree.


Before & During & After Sales Service


Before During After
1.Provide the free consultation of the equipment 1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout. 1. Oversea install and debug the equipment.
2.Provide the standard device and the flow chart 2.Welcome to visit our factory or the domestic clients factory. 2. Train the first-line operator.
3. According to the clients'special requirement, offering the reasonable plan and free design helping to select the equipment. 3.Inspect the machine before leaving the factory. 3. Provide the basic formula
    4. Operation/ Service/ Maintenance Manual: Provided In English.
    5. We will provide 1-2 engineer to the client's factory for the installation and teach totally in 10 days. The client need provide room, food, round-trip transportation, visa and a nominal $100 daily subsidy per person.

Technical Parameters


Item Name of item Unit DM268
Injection Unit Screw Diameter mm 55
Screw L/D Ratio Ratio 20
Injection Volume (Theoretical) cm 601
Injection Weight (PS) g 548
Injection Pressure Mpa 185.1
Injection Rate into Air g/s 223.7/276.1
Injection Stroke mm 256
Injection Speed Mm/s 95/116
Screw Speed rpm 201/246
Clamping Unit Clamping Force KN 2600
Clamping Stroke mm 550
Space Between Tie-bars mm×mm 580 x 580
Max. Mould Height mm 600
Min. Mould Height mm 250
Ejector Stroke mm 160
Hydraulic Ejection KN 68
Ejector Rob Quantity pcs 9
Others Max. Pump Pressure Mpa 17.5
Pump Motor Power kw 22/30
Heater Power kw 15.9
Hopper Volume L 50
Oil Pump Volume L 550
Machine Weight t 8.5
Mould Positioning Ring Diam mm 160
Sphere Radius mm SR10
Machine Dimension m x m x m 5.82 x 2 x 2





1. Could we visit your factory to check the machine carefully and closely?

You’re more than welcome to visit Darin, will provide machine test running, face to face discussion and turnkey project design solution.



2. Could you afford technician team to guide our installation and commissioning?

Oversea commissioning service provided, our technician will help to install the machine, and teach local workers about operation and maintenance. Buyer should pay for the technician's round flight ticket, accommodation and salary.


3. How long is your machine's guarantee time?

One year since the machine arrive your factory.


4. If some parts break after warranty, what should we do?

Darin supply full-life after sales service, whenever new parts needed, we will help to supply new ones at reasonable price & in shortest time.


5. If we show our workshop size, can you design layout for the whole line?

Auto CAD layout will be provided as client’s workshop size.


6. What is the material of the machine?

Stainless steel, especially parts contacting with materials, conforming to food grade.



Commissioning Service


1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.

2. After delivering machines to client’s factory, we start to apply for the Visa to client’s country immediately; normally the vessel needs 20-60 days to the required port, so we have enough time to get the Visa. While the machines arrives your factory, our engineers are ready to start for the commissioning service.

3. 1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.

4. Our engineers have responsibility to train and teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line.

5. It normally costs 10 days for the commissioning
service, and we supply 1 year guarantee from the date of completion of commissioning service.

6. The engineer’s round-trip flight tickets, accommodation and daily salary USD 100 are on client’s account.
