120kg Per Hour Corn puff snack making machine / puffed corn snack production line
Product Details:
Place of Origin: | CHINA |
Brand Name: | DARIN |
Certification: | CE |
Model Number: | DR-65/70/85/90 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | negotiation |
Packaging Details: | Standard export wooden cases, wrapped with film firstly, then packed with strong wooden cases, which are suitable for long-term trip and multi-times loading & unloading by trucks. |
Delivery Time: | 30 working days after received your payment |
Payment Terms: | T/T or L/C |
Supply Ability: | 50 sets per year |
Detail Information |
|||
Condition: | New | Dimension(L*W*H): | 2150*1500*2300 |
---|---|---|---|
Voltage: | 380v, 50hz, 3phases (adjustable) | Warranty: | 12 Months |
Applied: | Corn Puff Snack Extruder | Material: | SS304 |
Manual: | English Version | Capacity: | 120-150kg/h,200-250kg/h,400-500kg |
High Light: | puff snack extruder,corn puff extruder machine |
Product Description
120kg per hour Corn puff snack making machine/puffed corn snack production line
Product description of Corn puff snack making machine
1. Puffed corn snack machine use corn flour as main materials, you also can add wheat flour, rice flour etc. Through friction of screw and barrel and high
temperature and high press extruder.
Puffed corn snack machine can produce many shapes puffed snack, such as bugles, fish shape, moon shape, duck shape etc just by change the moulds.

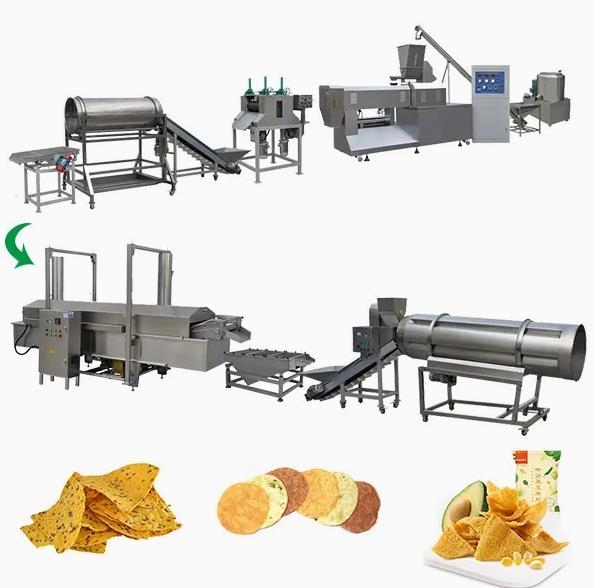

2.Flow chart of Corn puff snack making machine
Mixer --- screw conveyor --- puffing extruder --- air conveyor -- oven dryer ---seasoning machine--packing machine
|
Mixer | DRM-65 |
Voltage | 380V/50HZ/3KW | |
Capacity | 15-20kg per batch | |
Size | 700*500*1100mm | |
![]() |
Screw conveyor | DRS-65 |
Voltage | 380V/50HZ/1.5KW | |
Capacity | 120-150kg/h | |
Size | 1500*700*2500mm | |
![]() |

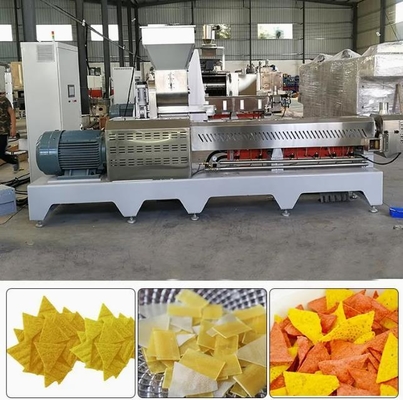

Extruder machine | DRS-65 |
Voltage | 380V/50HZ/23KW | |
Capacity |
120-150kg/h |
|
Size | 2800*850*1800mm | |
![]() |
Cutting machine | DRC-65 |
Voltage | 380V/50HZ/0.55KW | |
Capacity | 120-150kg/h | |
Size | 1200*600*2300 | |
![]() |
Elevator | DRH-65 |
Voltage | 380V/50HZ/0.55KW | |
Capacity | 120-150kg/h | |
Size | 1200*600*2300mm | |
![]() |
Oven dryer |
DRR-65 |
Voltage | 380V/50HZ/26KW | |
Capacity | 120-150kg/h | |
Size | 5300*1250*2300mm | |
![]() |
Double drum flavor line | DRF-65 |
Voltage | 380V/50HZ/3KW | |
Capacity | 120-150kg/h | |
Size | 5500*750*1950mm |
Technical Parameters
model | installed power | power consumption | output | size |
DR65 | 81.5kw | 53kw | 120-150kg/h | 21000x1200x2200mm |
DR70 | 116kw | 76kw | 200-250kg/h | 23000x1500x2200mm |
DR85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
Our Terms and After-sale Service
1. Delivery time:40 days after we receive the deposits
2. Payment: 30% deposits, balance against copy of bill of lading or LC at sight
3. Installation and commision: seller will send 1 technician to buyer's factory, All expenses including visa, round trip tickets, daily accommodation will be on the buyer’s account
4. Warranty is for one year
5. Accessory and spare pats will be offered with the whole line
